2ZR8

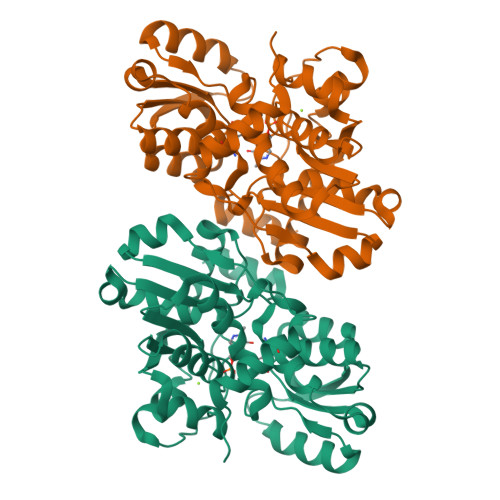

Crystal Structure of Modified Serine Racemase complexed with Serine


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.20 Å
  • R-Value Free: 0.216
  • R-Value Work: 0.171
  • R-Value Observed: 0.171

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

Crystal structure of a homolog of mammalian serine racemase from Schizosaccharomyces pombe

Goto, M.Yamauchi, T.Kamiya, N.Miyahara, I.Yoshimura, T.Mihara, H.Kurihara, T.Hirotsu, K.Esaki, N.

(2009) J Biol Chem 284: 25944-25952

  • DOI: 10.1074/jbc.M109.010470
  • Primary Citation of Related Structures:
    1WTC, 2ZR8

  • PubMed Abstract:
  • D-serine is an endogenous coagonist for the N-methyl-D-aspartate receptor and is involved in excitatory neurotransmission in the brain. Mammalian pyridoxal 5'-phosphate-dependent serine racemase, which is localized in the mammalian brain, catalyzes the racemization of L-serine to yield D-serine and vice versa ...

    D-serine is an endogenous coagonist for the N-methyl-D-aspartate receptor and is involved in excitatory neurotransmission in the brain. Mammalian pyridoxal 5'-phosphate-dependent serine racemase, which is localized in the mammalian brain, catalyzes the racemization of L-serine to yield D-serine and vice versa. The enzyme also catalyzes the dehydration of D- and L-serine. Both reactions are enhanced by Mg.ATP in vivo. We have determined the structures of the following three forms of the mammalian enzyme homolog from Schizosaccharomyces pombe: the wild-type enzyme, the wild-type enzyme in the complex with an ATP analog, and the modified enzyme in the complex with serine at 1.7, 1.9, and 2.2 A resolution, respectively. On binding of the substrate, the small domain rotates toward the large domain to close the active site. The ATP binding site was identified at the domain and the subunit interface. Computer graphics models of the wild-type enzyme complexed with L-serine and D-serine provided an insight into the catalytic mechanisms of both reactions. Lys-57 and Ser-82 located on the protein and solvent sides, respectively, with respect to the cofactor plane, are acid-base catalysts that shuttle protons to the substrate. The modified enzyme, which has a unique "lysino-D-alanyl" residue at the active site, also exhibits catalytic activities. The crystal-soaking experiment showed that the substrate serine was actually trapped in the active site of the modified enzyme, suggesting that the lysino-D-alanyl residue acts as a catalytic base in the same manner as inherent Lys-57 of the wild-type enzyme.


    Organizational Affiliation

    Department of Chemistry, Graduate School of Science, Osaka City University, Osaka 558-8585, Japan.



Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
Uncharacterized protein C320.14A323Schizosaccharomyces pombeMutation(s): 0
EC: 5.1.1.18 (PDB Primary Data), 4.3.1.17 (UniProt), 4.3.1.18 (UniProt)
UniProt
Find proteins for O59791 (Schizosaccharomyces pombe (strain 972 / ATCC 24843))
Explore O59791
Go to UniProtKB:  O59791
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO59791
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
PDD
Query on PDD

Download Ideal Coordinates CCD File
B [auth A]N-(5'-PHOSPHOPYRIDOXYL)-D-ALANINE
C11 H17 N2 O7 P
WACJCHFWJNNBPR-SSDOTTSWSA-N
 Ligand Interaction
SER
Query on SER

Download Ideal Coordinates CCD File
C [auth A]SERINE
C3 H7 N O3
MTCFGRXMJLQNBG-REOHCLBHSA-N
 Ligand Interaction
MG
Query on MG

Download Ideal Coordinates CCD File
D [auth A]MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.20 Å
  • R-Value Free: 0.216
  • R-Value Work: 0.171
  • R-Value Observed: 0.171
  • Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 59.54α = 90
b = 72.88β = 101.73
c = 64.81γ = 90
Software Package:
Software NamePurpose
CNSrefinement
MAR345data collection
DENZOdata reduction
SCALEPACKdata scaling
AMoREphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

  • Released Date: 2009-07-28
  • Deposition Author(s): Goto, M.

Revision History  (Full details and data files)

  • Version 1.0: 2009-07-28
    Type: Initial release
  • Version 1.1: 2011-07-13
    Changes: Version format compliance
  • Version 1.2: 2017-10-11
    Changes: Refinement description
