2XCK

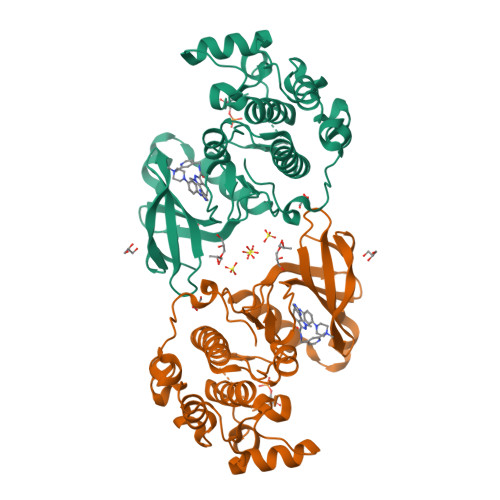

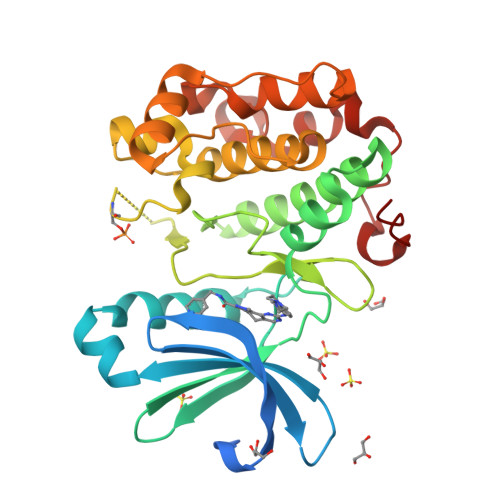

Crystal structure of PDK1 in complex with a pyrazoloquinazoline inhibitor


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.30 Å
  • R-Value Free: 0.240
  • R-Value Work: 0.193
  • R-Value Observed: 0.195

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Structure-Based Optimization of Potent Pdk1 Inhibitors.

Angiolini, M.Banfi, P.Casale, E.Casuscelli, F.Fiorelli, C.Saccardo, M.B.Silvagni, M.Zuccotto, F.

(2010) Bioorg Med Chem Lett 20: 4095

  • DOI: 10.1016/j.bmcl.2010.05.070
  • Primary Citation of Related Structures:
    2XCH, 2XCK

  • PubMed Abstract:
  • In this Letter is described the structure-based design of potent dihydro-pyrazoloquinazolines as PDK1 inhibitors. Starting from low potency HTS hits with the aid of X-ray crystallography and modeling, a medicinal chemistry activity was carried out to improve potency versus PDK1 and selectivity versus CDK2 protein kinase ...

    In this Letter is described the structure-based design of potent dihydro-pyrazoloquinazolines as PDK1 inhibitors. Starting from low potency HTS hits with the aid of X-ray crystallography and modeling, a medicinal chemistry activity was carried out to improve potency versus PDK1 and selectivity versus CDK2 protein kinase.


    Organizational Affiliation

    Nerviano Medical Sciences Srl, Viale Pasteur 10, 20014 Nerviano, Milano, Italy. mauro.angiolini@nervianoms.com



Macromolecules
Find similar proteins by:  (by identity cutoff)  |  Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
3-PHOSPHOINOSITIDE DEPENDENT PROTEIN KINASE 1A309Homo sapiensMutation(s): 0
Gene Names: PDPK1PDK1
EC: 2.7.11.1
UniProt & NIH Common Fund Data Resources
Find proteins for O15530 (Homo sapiens)
Explore O15530
Go to UniProtKB:  O15530
PHAROS:  O15530
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
MH4
Query on MH4

Download Ideal Coordinates CCD File
B [auth A]1-METHYL-8-{[4-(4-METHYLPIPERAZIN-1-YL)PHENYL]AMINO}-N-[(2-METHYLPYRIDIN-4-YL)METHYL]-4,5-DIHYDRO-1H-PYRAZOLO[4,3-H]QUINAZOLINE-3-CARBOXAMIDE
C29 H33 N9 O
BMPXFYMECYEYOL-UHFFFAOYSA-N
 Ligand Interaction
SO4
Query on SO4

Download Ideal Coordinates CCD File
G [auth A], H [auth A], I [auth A]SULFATE ION
O4 S
QAOWNCQODCNURD-UHFFFAOYSA-L
 Ligand Interaction
GOL
Query on GOL

Download Ideal Coordinates CCD File
C [auth A], D [auth A], E [auth A], F [auth A]GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
 Ligand Interaction
Modified Residues  1 Unique
IDChainsTypeFormula2D DiagramParent
SEP
Query on SEP
AL-PEPTIDE LINKINGC3 H8 N O6 PSER
External Ligand Annotations
IDBinding Affinity (Sequence Identity %)
MH4IC50:  713   nM  Binding MOAD
MH4IC50 :  713   nM  PDBBind
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.30 Å
  • R-Value Free: 0.240
  • R-Value Work: 0.193
  • R-Value Observed: 0.195
  • Space Group: P 32 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 123.115α = 90
b = 123.115β = 90
c = 47.24γ = 120
Software Package:
Software NamePurpose
REFMACrefinement
DENZOdata reduction
SCALEPACKdata scaling

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2010-07-28
    Type: Initial release
  • Version 1.1: 2011-05-08
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Version format compliance
