2P3Q

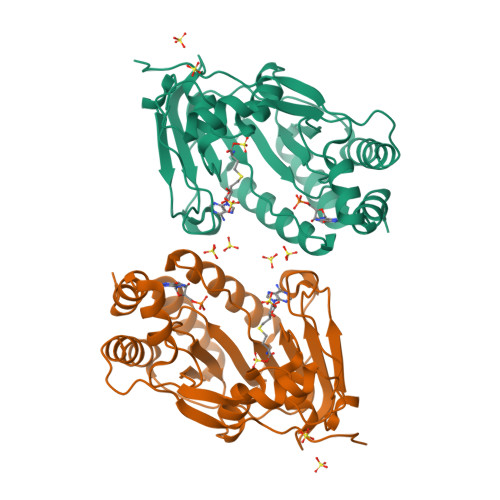

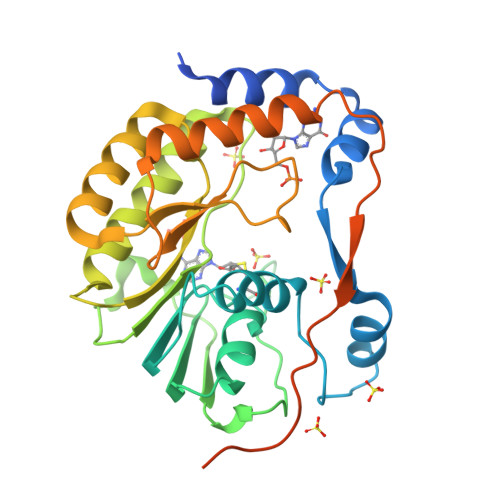

Crystal Structure of Dengue Methyltransferase in Complex with GpppG and S-Adenosyl-L-homocysteine


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.75 Å
  • R-Value Free: 0.271
  • R-Value Work: 0.208

wwPDB Validation 3D Report Full Report


This is version 1.1 of the entry. See complete history

Literature

Structural and functional analysis of methylation and 5'-RNA sequence requirements of short capped RNAs by the methyltransferase domain of dengue virus NS5

Egloff, M.P.Decroly, E.Malet, H.Selisko, B.Benarroch, D.Ferron, F.Canard, B.

(2007) J.Mol.Biol. 372: 723-736

  • DOI: 10.1016/j.jmb.2007.07.005
  • Primary Citation of Related Structures:  2P3L, 2P3O, 2P40, 2P41

  • PubMed Abstract:
  • The N-terminal 33 kDa domain of non-structural protein 5 (NS5) of dengue virus (DV), named NS5MTase(DV), is involved in two of four steps required for the formation of the viral mRNA cap (7Me)GpppA(2'OMe), the guanine-N7 and the adenosine-2'O methyla ...

    The N-terminal 33 kDa domain of non-structural protein 5 (NS5) of dengue virus (DV), named NS5MTase(DV), is involved in two of four steps required for the formation of the viral mRNA cap (7Me)GpppA(2'OMe), the guanine-N7 and the adenosine-2'O methylation. Its S-adenosyl-l-methionine (AdoMet) dependent 2'O-methyltransferase (MTase) activity has been shown on capped (7Me+/-)GpppAC(n) RNAs. Here we report structural and binding studies using cap analogues and capped RNAs. We have solved five crystal structures at 1.8 A to 2.8 A resolution of NS5MTase(DV) in complex with cap analogues and the co-product of methylation S-adenosyl-l-homocysteine (AdoHcy). The cap analogues can adopt several conformations. The guanosine moiety of all cap analogues occupies a GTP-binding site identified earlier, indicating that GTP and cap share the same binding site. Accordingly, we show that binding of (7Me)GpppAC(4) and (7Me)GpppAC(5) RNAs is inhibited in the presence of GTP, (7Me)GTP and (7Me)GpppA but not by ATP. This particular position of the cap is in accordance with the 2'O-methylation step. A model was generated of a ternary 2'O-methylation complex of NS5MTase(DV), (7Me)GpppA and AdoMet. RNA-binding increased when (7Me+/-)GpppAGC(n-1) starting with the consensus sequence GpppAG, was used instead of (7Me+/-)GpppAC(n). In the NS5MTase(DV)-GpppA complex the cap analogue adopts a folded, stacked conformation uniquely possible when adenine is the first transcribed nucleotide at the 5' end of nascent RNA, as it is the case in all flaviviruses. This conformation cannot be a functional intermediate of methylation, since both the guanine-N7 and adenosine-2'O positions are too far away from AdoMet. We hypothesize that this conformation mimics the reaction product of a yet-to-be-demonstrated guanylyltransferase activity. A putative Flavivirus RNA capping pathway is proposed combining the different steps where the NS5MTase domain is involved.


    Organizational Affiliation

    Architecture et Fonction des Macromolécules Biologiques, CNRS and Universités d'Aix-Marseille I et II, UMR 6098, ESIL Case 925, 13288 Marseille, France.




Macromolecules

Find similar proteins by: Sequence  |  Structure

Entity ID: 1
MoleculeChainsSequence LengthOrganismDetails
type II methyltransferase
A
305Dengue virus 2N/A
Find proteins for Q20IJ2 (Dengue virus 2)
Go to UniProtKB:  Q20IJ2
Small Molecules
Ligands 3 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
SO4
Query on SO4

Download SDF File
Download CCD File
A
SULFATE ION
O4 S
QAOWNCQODCNURD-UHFFFAOYSA-L
 Ligand Interaction
SAH
Query on SAH

Download SDF File
Download CCD File
A
S-ADENOSYL-L-HOMOCYSTEINE
C14 H20 N6 O5 S
ZJUKTBDSGOFHSH-WFMPWKQPSA-N
 Ligand Interaction
GP3
Query on GP3

Download SDF File
Download CCD File
A
DIGUANOSINE-5'-TRIPHOSPHATE
C20 H27 N10 O18 P3
AAXYAFFKOSNMEB-MHARETSRSA-N
 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.75 Å
  • R-Value Free: 0.271
  • R-Value Work: 0.208
  • Space Group: P 31 2 1
Unit Cell:
Length (Å)Angle (°)
a = 111.502α = 90.00
b = 111.502β = 90.00
c = 56.534γ = 120.00
Software Package:
Software NamePurpose
AMoREphasing
MOSFLMdata reduction
ADSCdata collection
SCALAdata scaling
REFMACrefinement

Structure Validation

View Full Validation Report or Ramachandran Plots



Entry History

Deposition Data

Revision History

  • Version 1.0: 2007-08-28
    Type: Initial release
  • Version 1.1: 2011-07-13
    Type: Derived calculations, Version format compliance
