2OW6

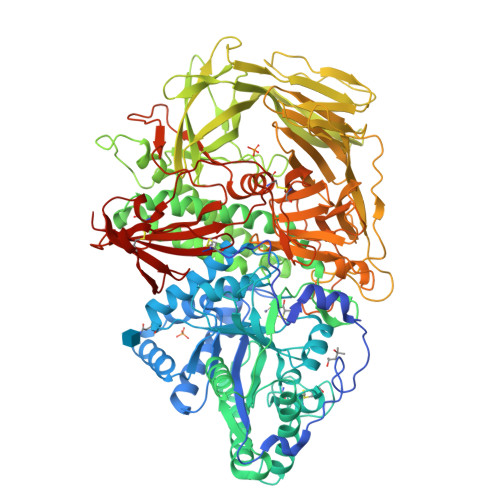

Golgi alpha-mannosidase II complex with (1r,5s,6s,7r,8s)-1-thioniabicyclo[4.3.0]nonan-5,7,8-triol chloride


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.19 Å
  • R-Value Free: 0.150
  • R-Value Work: 0.118
  • R-Value Observed: 0.118

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.4 of the entry. See complete history


Literature

Binding of sulfonium-ion analogues of di-epi-swainsonine and 8-epi-lentiginosine to Drosophila Golgi alpha-mannosidase II: The role of water in inhibitor binding.

Kumar, N.S.Kuntz, D.A.Wen, X.Pinto, B.M.Rose, D.R.

(2008) Proteins 71: 1484-1496

  • DOI: 10.1002/prot.21850
  • Primary Citation of Related Structures:
    2OW6, 2OW7

  • PubMed Abstract:
  • Retaining glycosidases operate by a two-step catalytic mechanism in which the transition states are characterized by buildup of a partial positive charge at the anomeric center. Sulfonium-ion analogues of the naturally occurring glycosidase inhibitors, swainsonine and 8-epi-lentiginosine, in which the bridgehead nitrogen atom is replaced by a sulfonium-ion, were synthesized in order to test the hypothesis that a sulfonium salt carrying a permanent positive charge would be an effective glycosidase inhibitor ...

    Retaining glycosidases operate by a two-step catalytic mechanism in which the transition states are characterized by buildup of a partial positive charge at the anomeric center. Sulfonium-ion analogues of the naturally occurring glycosidase inhibitors, swainsonine and 8-epi-lentiginosine, in which the bridgehead nitrogen atom is replaced by a sulfonium-ion, were synthesized in order to test the hypothesis that a sulfonium salt carrying a permanent positive charge would be an effective glycosidase inhibitor. Initial prediction based on computational docking indicated three plausible binding modes to Drosophila Golgi alpha-mannosidase II (dGMII), the most likely being close to that of swainsonine. Observation of the binding of di-epi-thioswainsonine and 8-epi-thiolentiginosine to dGMII from crystallographic data, however, revealed an orientation different from swainsonine in the active site. Screening these two compounds against dGMII shows that they are inhibitors with IC(50) values of 2.0 and 0.014 mM, respectively. This dramatic difference in affinity between the two compounds, which differ by only one hydroxyl group, is rationalized in terms of bound water molecules and the water molecule substructure in the active site, as identified by comparison of high resolution X-ray crystal structures of several dGMII-inhibitor complexes.


    Organizational Affiliation

    Department of Chemistry, Simon Fraser University, Burnaby, British Columbia, Canada V5A 1S6.



Macromolecules
Find similar proteins by:  (by identity cutoff)  |  Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
Alpha-mannosidase 2A1045Drosophila melanogasterMutation(s): 0
Gene Names: alpha-Man-IIalpha-Man-IIaGmIICG18802
EC: 3.2.1.114
UniProt
Find proteins for Q24451 (Drosophila melanogaster)
Explore Q24451
Go to UniProtKB:  Q24451
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Ligands 5 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
NAG (Subject of Investigation/LOI)
Query on NAG

Download Ideal Coordinates CCD File
B [auth A]2-acetamido-2-deoxy-beta-D-glucopyranose
C8 H15 N O6
OVRNDRQMDRJTHS-FMDGEEDCSA-N
 Ligand Interaction
NK1 (Subject of Investigation/LOI)
Query on NK1

Download Ideal Coordinates CCD File
F [auth A](1R,5S,6S,7R,8S)-1-THIONIABICYCLO[4.3.0]NONAN-5,7,8-TRIOL
C8 H15 O3 S
YXHBFMXISHCSIQ-OZFRBSTCSA-N
 Ligand Interaction
MRD
Query on MRD

Download Ideal Coordinates CCD File
G [auth A](4R)-2-METHYLPENTANE-2,4-DIOL
C6 H14 O2
SVTBMSDMJJWYQN-RXMQYKEDSA-N
 Ligand Interaction
PO4
Query on PO4

Download Ideal Coordinates CCD File
C [auth A], D [auth A]PHOSPHATE ION
O4 P
NBIIXXVUZAFLBC-UHFFFAOYSA-K
 Ligand Interaction
ZN
Query on ZN

Download Ideal Coordinates CCD File
E [auth A]ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
 Ligand Interaction
Binding Affinity Annotations
IDSourceBinding Affinity
NK1 PDBBind:  2OW6 IC50: 2.00e+6 (nM) from 1 assay(s)
Binding MOAD:  2OW6 IC50: 2.00e+6 (nM) from 1 assay(s)
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.19 Å
  • R-Value Free: 0.150
  • R-Value Work: 0.118
  • R-Value Observed: 0.118
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 69.007α = 90
b = 109.62β = 90
c = 138.915γ = 90
Software Package:
Software NamePurpose
SHELXL-97refinement
CNSrefinement
ADSCdata collection
HKL-2000data reduction
DENZOdata reduction
SCALEPACKdata scaling
CNSphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment



Entry History

Deposition Data

  • Deposited Date: 2007-02-15
  • Released Date: 2008-01-08
  • Deposition Author(s): Kuntz, D.A.

Revision History  (Full details and data files)

  • Version 1.0: 2008-01-08
    Type: Initial release
  • Version 1.1: 2011-07-13
    Changes: Non-polymer description, Version format compliance
  • Version 1.2: 2017-10-18
    Changes: Refinement description
  • Version 1.3: 2019-07-24
    Changes: Data collection, Derived calculations, Refinement description
  • Version 1.4: 2020-07-29
    Type: Remediation
    Reason: Carbohydrate remediation
    Changes: Data collection, Database references, Derived calculations, Structure summary
