2MIB

THE STRUCTURE OF MURINE INTERLEUKIN-1 BETA AT 2.8 ANGSTROMS RESOLUTION


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.84 Å

wwPDB Validation 3D Report Full Report


This is version 1.3 of the entry. See complete history

Literature

The structure of murine interleukin-1 beta at 2.8 A resolution.

van Oostrum, J.Priestle, J.P.Grutter, M.G.Schmitz, A.

(1991) J.Struct.Biol. 107: 189-195


  • PubMed Abstract:
  • The three-dimensional structure of recombinant murine interleukin-1 beta has been solved by X-ray crystallographic techniques to 2.8 A resolution and refined to a crystallographic R factor of 0.192. Although murine interleukin-1 beta crystallizes in ...

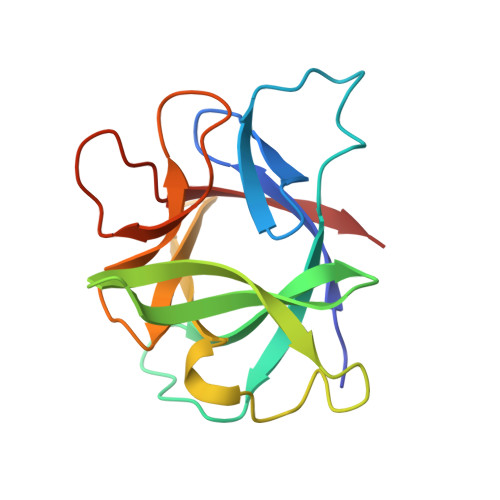

    The three-dimensional structure of recombinant murine interleukin-1 beta has been solved by X-ray crystallographic techniques to 2.8 A resolution and refined to a crystallographic R factor of 0.192. Although murine interleukin-1 beta crystallizes in the same space group as human interleukin-1 beta with almost identical unit cell dimensions, the packing of the molecules is quite different. The murine interleukin-1 beta structure was solved by molecular replacement using the refined structure of human interleukin-1 beta as trial structure, and found to be related to the human structure by a nearly perfect twofold rotation about the crystallographic y-axis and a 14 degrees rotation about the z-axis, with no translation. The folding of murine interleukin-1 beta is similar to that found for the human variant, consisting of 12 beta strands wrapped around a core of hydrophobic side chains in a tetrahedron-like fashion. Significant differences with respect to the human structure are seen at the N terminus and in 4 of the 11 loops connecting the 12 beta strands.


    Organizational Affiliation

    Department of Biotechnology, Ciba-Geigy Ltd., Basel, Switzerland.




Macromolecules

Find similar proteins by: Sequence  |  Structure

Entity ID: 1
MoleculeChainsSequence LengthOrganismDetails
INTERLEUKIN-1 BETA
A
152Mus musculusMutation(s): 0
Gene Names: Il1b
Find proteins for P10749 (Mus musculus)
Go to UniProtKB:  P10749
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.84 Å
  • Space Group: P 43
Unit Cell:
Length (Å)Angle (°)
a = 55.500α = 90.00
b = 55.500β = 90.00
c = 78.600γ = 90.00
Software Package:
Software NamePurpose
X-PLORmodel building
X-PLORrefinement
PROLSQrefinement
TNTrefinement
X-PLORphasing

Structure Validation

View Full Validation Report or Ramachandran Plots



Entry History

Deposition Data

Revision History

  • Version 1.0: 1994-01-31
    Type: Initial release
  • Version 1.1: 2008-03-24
    Type: Version format compliance
  • Version 1.2: 2011-07-13
    Type: Version format compliance
  • Version 1.3: 2017-11-29
    Type: Derived calculations, Other
