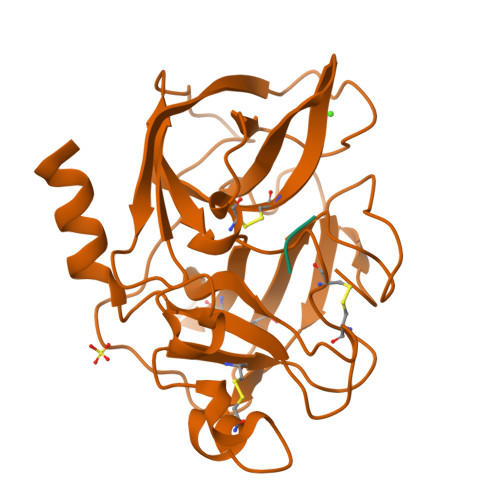

2H1U

Porcine pancreatic elastase complexed with MetPheLeuGlu at pH 5.0

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.60 Å
  • R-Value Free: 0.205
  • R-Value Work: 0.182
  • R-Value Observed: 0.184

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history.


Literature

Structural analyses on intermediates in serine protease catalysis.

Liu, B., Schofield, C.J., Wilmouth, R.C.

(2006) J Biol Chem 281: 24024-24035

  • DOI: 10.1074/jbc.M600495200
  • Primary Citation of Related Structures:
    2BB4, 2BD2, 2BD3, 2BD4, 2BD5, 2BD7, 2BD8, 2BD9, 2BDA, 2BDB, 2BDC, 2H1U

  • PubMed Abstract:

    • Although the subject of many studies, detailed structural information on aspects of the catalytic cycle of serine proteases is lacking. Crystallographic analyses were performed in which an acyl-enzyme complex, formed from elastase and a peptide, was reacted with a series of nucleophilic dipeptides ...

    Although the subject of many studies, detailed structural information on aspects of the catalytic cycle of serine proteases is lacking. Crystallographic analyses were performed in which an acyl-enzyme complex, formed from elastase and a peptide, was reacted with a series of nucleophilic dipeptides. Multiple analyses led to electron density maps consistent with the formation of a tetrahedral species. In certain cases, apparent peptide bond formation at the active site was observed, and the electron density maps suggested production of a cis-amide rather than a trans-amide. Evidence for a cis-amide configuration was also observed in the noncovalent complex between elastase and an alpha1-antitrypsin-derived tetrapeptide. Although there are caveats on the relevance of the crystallographic data to solution catalysis, the results enable detailed proposals for the pathway of the acylation step to be made. At least in some cases, it is proposed that the alcohol of Ser-195 may preferentially attack the carbonyl of the cis-amide form of the substrate, in a stereoelectronically favored manner, to give a tetrahedral oxyanion intermediate, which undergoes N-inversion and/or C-N bond rotation to enable protonation of the leaving group nitrogen. The mechanistic proposals may have consequences for protease inhibition, in particular for the design of high energy intermediate analogues.

    Related Citations:
    • Mass spectrometry reveals elastase inhibitors from the reactive centre loop of alpha1-antitrypsin
      Wright, P.A., Rostom, A.A., Robinson, C.V., Schofield, C.J.
      (2000) Bioorg Med Chem Lett 10: 1219
    Organizational Affiliation:

    School of Biological Sciences, Nanyang Technological University, 60 Nanyang Drive, Singapore 637551, Singapore.



Macromolecules

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
MFLEA [auth P]4N/AMutation(s): 0
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChainsSequence LengthOrganismDetailsImage
Elastase-1B [auth A]240Sus scrofaMutation(s): 0
Gene Names: CELA1, ELA1
EC: 3.4.21.36
UniProt
Find proteins for P00772 (Sus scrofa)
Explore P00772
Go to UniProtKB:  P00772
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP00772
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
SO4
Query on SO4
Download Ideal Coordinates CCD File
D [auth A]SULFATE ION
O4 S
QAOWNCQODCNURD-UHFFFAOYSA-L		 Ligand Interaction
CA
Query on CA
Download Ideal Coordinates CCD File
C [auth A]CALCIUM ION
Ca
BHPQYMZQTOCNFJ-UHFFFAOYSA-N		 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.60 Å
  • R-Value Free: 0.205
  • R-Value Work: 0.182
  • R-Value Observed: 0.184
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 50.084α = 90
b = 57.57β = 90
c = 74.146γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
MOSFLMdata reduction
CCP4data scaling

Structure Validation

View Full Validation Report



View more in-depth experimental data

Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2006-05-30
    Type: Initial release
  • Version 1.1: 2008-05-01
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Version format compliance
