2G60

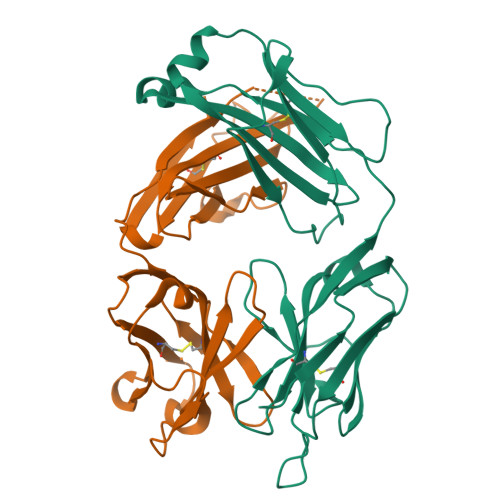

Structure of anti-FLAG M2 Fab domain


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.85 Å
  • R-Value Free: 0.278
  • R-Value Work: 0.235

wwPDB Validation 3D Report Full Report


This is version 1.3 of the entry. See complete history

Literature

Structure of anti-FLAG M2 Fab domain and its use in the stabilization of engineered membrane proteins.

Roosild, T.P.Castronovo, S.Choe, S.

(2006) Acta Crystallogr.,Sect.F 62: 835-839

  • DOI: 10.1107/S1744309106029125

  • PubMed Abstract:
  • The inherent difficulties of stabilizing detergent-solubilized integral membrane proteins for biophysical or structural analysis demand the development of new methodologies to improve success rates. One proven strategy is the use of antibody fragment ...

    The inherent difficulties of stabilizing detergent-solubilized integral membrane proteins for biophysical or structural analysis demand the development of new methodologies to improve success rates. One proven strategy is the use of antibody fragments to increase the ;soluble' portion of any membrane protein, but this approach is limited by the difficulties and expense associated with producing monoclonal antibodies to an appropriate exposed epitope on the target protein. Here, the stabilization of a detergent-solubilized K(+) channel protein, KvPae, by engineering a FLAG-binding epitope into a known loop region of the protein and creating a complex with Fab fragments from commercially available anti-FLAG M2 monoclonal antibodies is reported. Although well diffracting crystals of the complex have not yet been obtained, during the course of crystallization trials the structure of the anti-FLAG M2 Fab domain was solved to 1.86 A resolution. This structure, which should aid future structure-determination efforts using this approach by facilitating molecular-replacement phasing, reveals that the binding pocket appears to be specific only for the first four amino acids of the traditional FLAG epitope, namely DYKD. Thus, the use of antibody fragments for improving the stability of target proteins can be rapidly applied to the study of membrane-protein structure by placing the short DKYD motif within a predicted peripheral loop of that protein and utilizing commercially available anti-FLAG M2 antibody fragments.


    Organizational Affiliation

    Structural Biology Laboratory, The Salk Institute for Biological Studies, La Jolla, California 92037, USA.




Macromolecules

Find similar proteins by: Sequence  |  Structure

Entity ID: 1
MoleculeChainsSequence LengthOrganismDetails
anti-FLAG M2 Fab light chain
L
216N/AMutation(s): 0
Protein Feature View is not available: No corresponding UniProt sequence found.
Entity ID: 2
MoleculeChainsSequence LengthOrganismDetails
anti-FLAG M2 Fab heavy chain
H
215N/AMutation(s): 0
Protein Feature View is not available: No corresponding UniProt sequence found.
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.85 Å
  • R-Value Free: 0.278
  • R-Value Work: 0.235
  • Space Group: P 21 21 2
Unit Cell:
Length (Å)Angle (°)
a = 87.360α = 90.00
b = 133.760β = 90.00
c = 41.480γ = 90.00
Software Package:
Software NamePurpose
PDB_EXTRACTdata extraction
SCALEPACKdata scaling
CNSrefinement
DENZOdata reduction
MOLREPphasing
HKL-2000data reduction

Structure Validation

View Full Validation Report or Ramachandran Plots



Entry History

Deposition Data

  • Deposited Date: 2006-02-23
  • Released Date: 2006-09-12
  • Deposition Author(s): Roosild, T.P.

Revision History

  • Version 1.0: 2006-09-12
    Type: Initial release
  • Version 1.1: 2008-05-01
    Type: Version format compliance
  • Version 1.2: 2011-07-13
    Type: Version format compliance
  • Version 1.3: 2017-10-18
    Type: Refinement description
