2EOD | pdb_00002eod

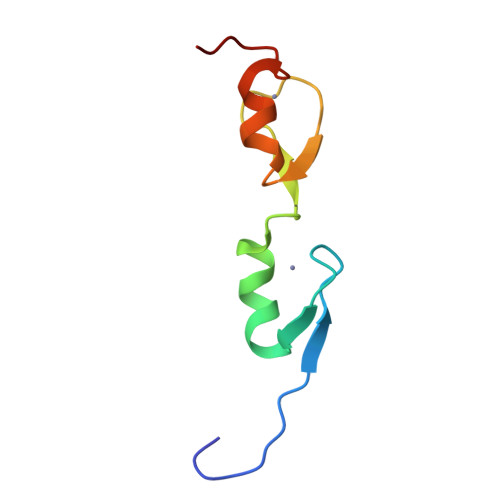

Solution structure of TRAF-type zinc finger domains (190- 248) from human TNF receptor-associated factor 4

PDB DOI: https://doi.org/10.2210/pdb2EOD/pdb

Classification: SIGNALING PROTEIN
Organism(s): Homo sapiens
Mutation(s): No

Deposited: 2007-03-29 Released: 2008-04-01
Deposition Author(s): Nagashima, T., Hayashi, F., Yokoyama, S., RIKEN Structural Genomics/Proteomics Initiative (RSGI)

Experimental Data Snapshot

Method: SOLUTION NMR
Conformers Calculated: 100
Conformers Submitted: 20
Selection Criteria: structures with the least restraint violations, target function

wwPDB Validation 3D Report Full Report

Validation slider image for 2EOD

This is version 1.3 of the entry. See complete history.

Literature

Solution structure of TRAF-type zinc finger domains (190 - 248) from human TNF receptor-associated factor 4

Nagashima, T., Hayashi, F., Yokoyama, S.

To be published.

Macromolecule Content

Total Structure Weight: 7.23 kDa
Atom Count: 494
Modeled Residue Count: 66
Deposited Residue Count: 66
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
TNF receptor-associated factor 4	A	66	Homo sapiens	Mutation(s): 0 Gene Names: TRAF4, CART1, MLN62, RNF83 EC: 2.3.2.27
UniProt & NIH Common Fund Data Resources
Find proteins for Q9BUZ4 (Homo sapiens) Explore Q9BUZ4 Go to UniProtKB: Q9BUZ4
PHAROS: Q9BUZ4 GTEx: ENSG00000076604
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9BUZ4
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ZN Query on ZN Download:Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain B [auth A] MOL2 format, chain C [auth A] MOL2 format, chain B [auth A] mmCIF format, chain C [auth A] mmCIF format, chain B [auth A]	B [auth A], C [auth A]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain B [auth A] Focus chain C [auth A]

Experimental Data & Validation

Experimental Data

Method: SOLUTION NMR
Conformers Calculated: 100
Conformers Submitted: 20
Selection Criteria: structures with the least restraint violations, target function

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

Deposition Data

Released Date: 2008-04-01

Deposition Author(s):

RIKEN Structural Genomics/Proteomics Initiative (RSGI)

Revision History (Full details and data files)

Version 1.0: 2008-04-01
Type: Initial release
Version 1.1: 2011-07-13
Changes: Version format compliance
Version 1.2: 2022-03-09
Changes: Data collection, Database references, Derived calculations
Version 1.3: 2024-05-29
Changes: Data collection
