2ANL

X-ray crystal structure of the aspartic protease plasmepsin 4 from the malarial parasite plasmodium malariae bound to an allophenylnorstatine based inhibitor


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.30 Å
  • R-Value Free: 0.298
  • R-Value Work: 0.247

wwPDB Validation   3D Report Full Report


This is version 1.4 of the entry. See complete history


Literature

Structure of the aspartic protease plasmepsin 4 from the malarial parasite Plasmodium malariae bound to an allophenylnorstatine-based inhibitor.

Clemente, J.C.Govindasamy, L.Madabushi, A.Fisher, S.Z.Moose, R.E.Yowell, C.A.Hidaka, K.Kimura, T.Hayashi, Y.Kiso, Y.Agbandje-McKenna, M.Dame, J.B.Dunn, B.M.McKenna, R.

(2006) Acta Crystallogr D Biol Crystallogr 62: 246-252

  • DOI: 10.1107/S0907444905041260
  • Primary Citation of Related Structures:
    2ANL

  • PubMed Abstract:
  • The malarial parasite continues to be one of the leading causes of death in many developing countries. With the development of resistance to the currently available treatments, the discovery of new therapeutics is imperative. Currently, the plasmepsin enzymes found in the food vacuole of the parasite are a chief target for drug development ...

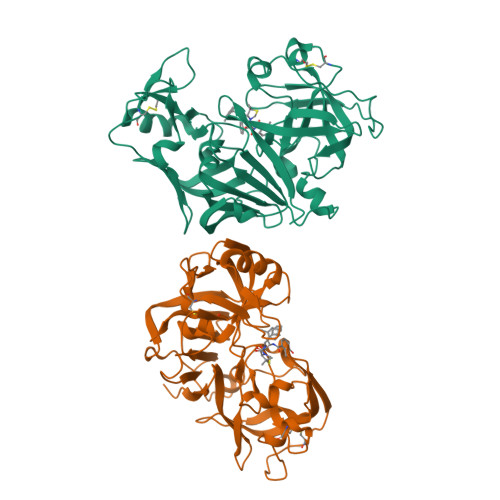

    The malarial parasite continues to be one of the leading causes of death in many developing countries. With the development of resistance to the currently available treatments, the discovery of new therapeutics is imperative. Currently, the plasmepsin enzymes found in the food vacuole of the parasite are a chief target for drug development. Allophenylnorstatine-based compounds originally designed to inhibit HIV-1 protease have shown efficacy against all four plasmepsin enzymes found in the food vacuole of Plasmodium falciparum. In this study, the first crystal structure of P. malariae plasmepsin 4 (PmPM4) bound to the allophenylnorstatine-based compound KNI-764 is described at 3.3 Angstroms resolution. The PmPM4-inhibitor complex crystallized in the orthorhombic space group P2(1)2(1)2, with unit-cell parameters a = 95.9, b = 112.6, c = 90.4 Angstroms, with two molecules in the asymmetric unit related by a non-crystallographic symmetry operator. The structure was refined to a final R factor of 24.7%. The complex showed the inhibitor in an unexpected binding orientation with allophenylnorstatine occupying the S1' pocket. The P2 group was found outside the S2 pocket, wedged between the flap and a juxtaposed loop. Inhibition analysis of PmPM4 also suggests the potential for allophenylnorstatine-based compounds to be effective against all species of malaria infecting humans and for the future development of a broad-based inhibitor.


    Organizational Affiliation

    Department of Biochemistry and Molecular Biology, College of Medicine, University of Florida, USA.



Macromolecules
Find similar proteins by:  (by identity cutoff)  |  Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
plasmepsin IVA, B327Plasmodium malariaeMutation(s): 0
Gene Names: PmUG01_13050400PmlGA01_130044400PMALA_027650PMLGA01_130044400PMUG01_13050400
UniProt
Find proteins for O60990 (Plasmodium malariae)
Explore O60990
Go to UniProtKB:  O60990
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
JE2
Query on JE2

Download Ideal Coordinates CCD File
C [auth A], D [auth B](4R)-3-{(2S,3S)-2-hydroxy-3-[(3-hydroxy-2-methylbenzoyl)amino]-4-phenylbutanoyl}-5,5-dimethyl-N-(2-methylbenzyl)-1,3-thiazolidine-4-carboxamide
C32 H37 N3 O5 S
CUFQBQOBLVLKRF-RZDMPUFOSA-N
 Ligand Interaction
External Ligand Annotations
IDBinding Affinity (Sequence Identity %)
JE2Ki :  110   nM  PDBBind
Biologically Interesting Molecules (External Reference) 1 Unique
Entity ID: 2
IDChainsNameType/Class2D Diagram3D Interactions
PRD_000566 (JE2)
Query on PRD_000566
C [auth A], D [auth B]KNI-764Peptide-like /  Enzyme inhibitor  Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.30 Å
  • R-Value Free: 0.298
  • R-Value Work: 0.247
  • Space Group: P 21 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 95.884α = 90
b = 112.579β = 90
c = 90.404γ = 90
Software Package:
Software NamePurpose
SCALEPACKdata scaling
MOLREPphasing
CNSrefinement

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2006-04-04
    Type: Initial release
  • Version 1.1: 2008-04-30
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Atomic model, Database references, Derived calculations, Non-polymer description, Structure summary, Version format compliance
  • Version 1.3: 2012-12-12
    Changes: Other
  • Version 1.4: 2017-10-11
    Changes: Refinement description
