1XAW

crystal structure of the cytoplasmic distal C-terminal domain of occludin


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.45 Å
  • R-Value Free: 0.284
  • R-Value Work: 0.261
  • R-Value Observed: 0.265

wwPDB Validation   3D Report Full Report


This is version 1.4 of the entry. See complete history


Literature

Structure of the Conserved Cytoplasmic C-terminal Domain of Occludin: Identification of the ZO-1 Binding Surface.

Li, Y.Fanning, A.S.Anderson, J.M.Lavie, A.

(2005) J Mol Biol 352: 151-164

  • DOI: https://doi.org/10.1016/j.jmb.2005.07.017
  • Primary Citation of Related Structures:
    1WPA, 1XAW

  • PubMed Abstract:

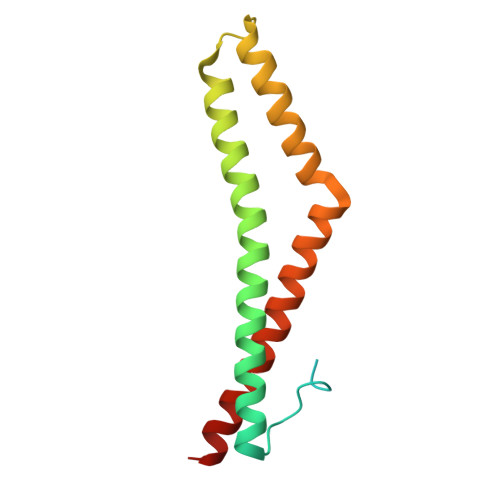

    Occludin is a transmembrane protein localized at tight junctions whose functions are complex yet poorly understood. Current evidence supports a role for occludin in both the formation of the paracellular barrier and in cell signaling. While the N-terminal extracellular domains of occludin mediate homotypic adhesion, the distal C-terminal cytoplasmic domain of occludin controls protein targeting and endocytosis. The C terminus can also bind to the scaffolding proteins ZO-1, ZO-2, ZO-3, cingulin, the membrane trafficking protein VAP33, and the cytoskeletal protein F-actin, suggesting an important role for this domain. This domain is highly homologous to an important functional domain in the C terminus of the ELL family of RNA polymerase II transcription factors. To explore the function of occludin, we determined the high-resolution crystal structure of its C-terminal distal cytoplasmic domain. The structure comprises three helices that form two separate anti-parallel coiled-coils and a loop that packs tightly against one of the coiled-coils. Using in vitro binding studies and site-directed mutagenesis, we have identified a large positively charged surface that contains the binding site for ZO-1, and this surface is required for proper localization of occludin to cell-cell junctions. On the basis of sequence conservation, we predict that occludin domains from different species and the C-terminal domain of the ELL transcription factors share a very similar structure. Our results provide a model to further test the function of occludin and its binding to other proteins.


  • Organizational Affiliation

    Department of Biochemistry and Molecular Genetics, University of Illinois at Chicago, Chicago, IL 60607, USA.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Occludin140Homo sapiensMutation(s): 1
Gene Names: OCLN
UniProt & NIH Common Fund Data Resources
Find proteins for Q16625 (Homo sapiens)
Explore Q16625
Go to UniProtKB:  Q16625
PHAROS:  Q16625
GTEx:  ENSG00000197822
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ16625
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.45 Å
  • R-Value Free: 0.284
  • R-Value Work: 0.261
  • R-Value Observed: 0.265
  • Space Group: C 2 2 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 46.96α = 90
b = 109.57β = 90
c = 48.13γ = 90
Software Package:
Software NamePurpose
DENZOdata reduction
SCALEPACKdata scaling
SOLVEphasing
CNSrefinement

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2005-09-06
    Type: Initial release
  • Version 1.1: 2008-04-30
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Version format compliance
  • Version 1.3: 2021-10-20
    Changes: Database references
  • Version 1.4: 2024-02-14
    Changes: Data collection
