1UHY

Crystal structure of d(GCGATAGC): the base-intercalated duplex


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.70 Å
  • R-Value Free: 0.239
  • R-Value Work: 0.224

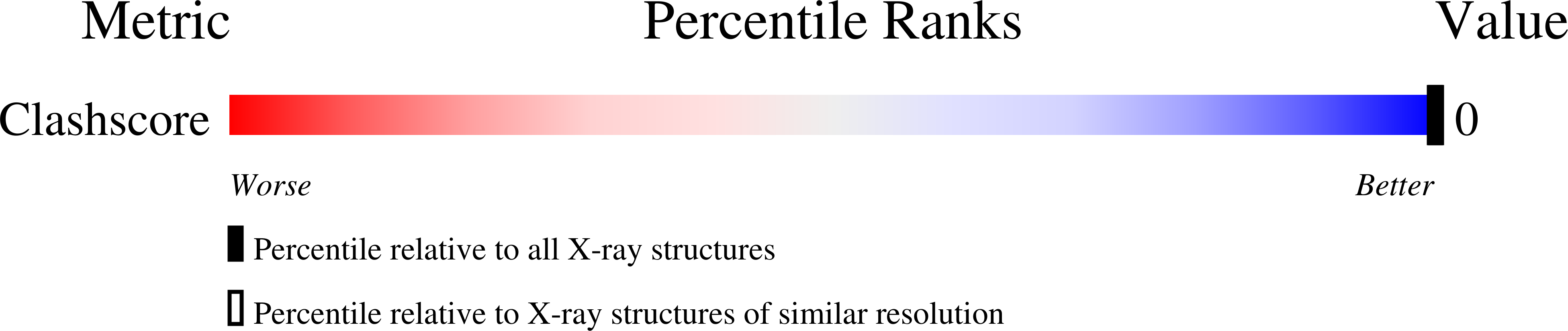

wwPDB Validation   3D Report Full Report


This is version 1.3 of the entry. See complete history


Literature

X-ray analyses of d(GCGAXAGC) containing G and T at X: the base-intercalated duplex is still stable even in point mutants at the fifth residue.

Kondo, J.Umeda, S.I.Fujita, K.Sunami, T.Takenaka, A.

(2004) J Synchrotron Radiat 11: 117-120

  • DOI: 10.1107/s0909049503023562
  • Primary Citation of Related Structures:
    1UHY, 1UHX

  • PubMed Abstract:
  • DNA fragments containing the sequence d(GCGAAAGC) prefer to adopt a base-intercalated (zipper-like) duplex in the crystalline state. To investigate effects of point mutation at the 5th residue on the structure, two crystal structures of d(GCGAGAGC) and d(GCGATAGC) have been determined by X-ray crystallography ...

    DNA fragments containing the sequence d(GCGAAAGC) prefer to adopt a base-intercalated (zipper-like) duplex in the crystalline state. To investigate effects of point mutation at the 5th residue on the structure, two crystal structures of d(GCGAGAGC) and d(GCGATAGC) have been determined by X-ray crystallography. In the respective crystals, the two octamers related by a crystallographic two-fold symmetry are aligned in an anti-parallel fashion and associated to each other to form a duplex, suggesting that the base-intercalated duplex is stable even when the 5th residue is mutated with other bases. The sheared G3:A6 pair formation makes the two phosphate backbones closer and facilitates formation of the A-X*-X-A* base-intercalated motif. The three duplexes are assembled around the three-fold axis, and their 3rd and 4th residues are bound to the hexamine cobalt chloride. The central 5th residues are bound to another cation.


    Organizational Affiliation

    Graduate School of Bioscience and Biotechnology, Tokyo Institute of Technology, Yokohama 226-8501, Japan.



Macromolecules
  • Find similar nucleic acids by:  Sequence   |   Structure
  • Entity ID: 1
    MoleculeChainsLengthOrganismImage
    5'-D(*GP*(CBR)P*GP*AP*TP*AP*GP*C)-3'A8N/A
    Protein Feature View
    Expand
    • Reference Sequence
    Small Molecules
    Ligands 3 Unique
    IDChainsName / Formula / InChI Key2D Diagram3D Interactions
    NCO
    Query on NCO

    Download Ideal Coordinates CCD File
    D [auth A], E [auth A]COBALT HEXAMMINE(III)
    Co H18 N6
    DYLMFCCYOUSRTK-FGTKAUEHAT
     Ligand Interaction
    CL
    Query on CL

    Download Ideal Coordinates CCD File
    C [auth A]CHLORIDE ION
    Cl
    VEXZGXHMUGYJMC-UHFFFAOYSA-M
     Ligand Interaction
    NA
    Query on NA

    Download Ideal Coordinates CCD File
    B [auth A]SODIUM ION
    Na
    FKNQFGJONOIPTF-UHFFFAOYSA-N
     Ligand Interaction
    Experimental Data & Validation

    Experimental Data

    • Method: X-RAY DIFFRACTION
    • Resolution: 1.70 Å
    • R-Value Free: 0.239
    • R-Value Work: 0.224
    • Space Group: P 63 2 2
    Unit Cell:
    Length ( Å )Angle ( ˚ )
    a = 37α = 90
    b = 37β = 90
    c = 65.3γ = 120
    Software Package:
    Software NamePurpose
    MOSFLMdata reduction
    SCALAdata scaling
    AMoREphasing
    CNSrefinement
    CCP4data scaling

    Structure Validation

    View Full Validation Report




    Entry History

    Deposition Data

    Revision History  (Full details and data files)

    • Version 1.0: 2004-02-03
      Type: Initial release
    • Version 1.1: 2008-04-27
      Changes: Version format compliance
    • Version 1.2: 2011-07-13
      Changes: Version format compliance
    • Version 1.3: 2014-10-22
      Changes: Derived calculations
