1IK6

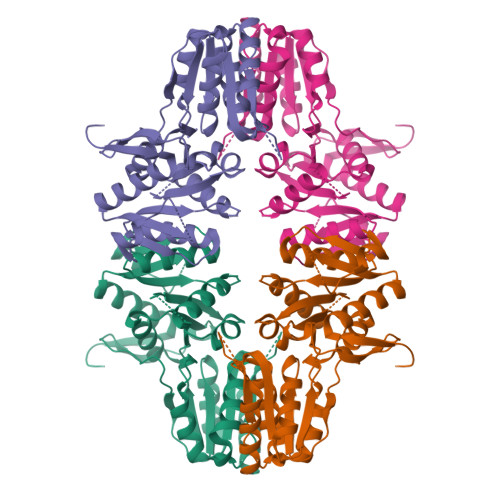

3D structure of the E1beta subunit of pyruvate dehydrogenase from the archeon Pyrobaculum aerophilum


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.00 Å
  • R-Value Free: 0.255
  • R-Value Work: 0.212

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

3D structure and significance of the GPhiXXG helix packing motif in tetramers of the E1beta subunit of pyruvate dehydrogenase from the archeon Pyrobaculum aerophilum.

Kleiger, G.Perry, J.Eisenberg, D.

(2001) Biochemistry 40: 14484-14492

  • DOI: 10.1021/bi011016k
  • Primary Citation of Related Structures:
    1IK6

  • PubMed Abstract:
  • As part of a structural genomics project, we have determined the 2.0 A structure of the E1beta subunit of pyruvate dehydrogenase from Pyrobaculum aerophilum (PA), a thermophilic archaeon. The overall fold of E1beta from PA is closely similar to the previously determined E1beta structures from humans (HU) and P ...

    As part of a structural genomics project, we have determined the 2.0 A structure of the E1beta subunit of pyruvate dehydrogenase from Pyrobaculum aerophilum (PA), a thermophilic archaeon. The overall fold of E1beta from PA is closely similar to the previously determined E1beta structures from humans (HU) and P. putida (PP). However, unlike the HU and PP structures, the PA structure was determined in the absence of its partner subunit, E1alpha. Significant structural rearrangements occur in E1beta when its E1alpha partner is absent, including rearrangement of several secondary structure elements such as helix C. Helix C is buried by E1alpha in the HU and PP structures, but makes crystal contacts in the PA structure that lead to an apparent beta(4) tetramer. Static light scattering and sedimentation velocity data are consistent with the formation of PA E1beta tetramers in solution. The interaction of helix C with its symmetry-related counterpart stabilizes the tetrameric interface, where two glycine residues on the same face of one helix create a packing surface for the other helix. This GPhiXXG helix-helix interaction motif has previously been found in interacting transmembrane helices, and is found here at the E1alpha-E1beta interface for both the HU and PP alpha(2)beta(2) tetramers. As a case study in structural genomics, this work illustrates that comparative analysis of protein structures can identify the structural significance of a sequence motif.


    Organizational Affiliation

    Howard Hughes Medical Institute, UCLA-DOE Laboratory of Structural Biology and Molecular Medicine, Molecular Biology Institute, University of California, Los Angeles 90095-1570, USA.



Macromolecules
Find similar proteins by:  (by identity cutoff)  |  Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
pyruvate dehydrogenaseA369Pyrobaculum aerophilumMutation(s): 0
EC: 1.2.7.11
Find proteins for Q8ZUR7 (Pyrobaculum aerophilum (strain ATCC 51768 / IM2 / DSM 7523 / JCM 9630 / NBRC 100827))
Explore Q8ZUR7
Go to UniProtKB:  Q8ZUR7
Protein Feature View
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.00 Å
  • R-Value Free: 0.255
  • R-Value Work: 0.212
  • Space Group: I 2 2 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 65.241α = 90
b = 84.543β = 90
c = 131.38γ = 90
Software Package:
Software NamePurpose
AMoREphasing
CNSrefinement
DENZOdata reduction
SCALEPACKdata scaling

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2001-12-19
    Type: Initial release
  • Version 1.1: 2008-04-27
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Version format compliance
