1EHK | pdb_00001ehk

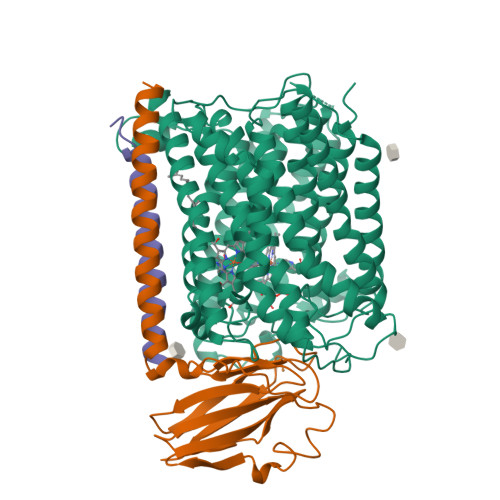

CRYSTAL STRUCTURE OF THE ABERRANT BA3-CYTOCHROME-C OXIDASE FROM THERMUS THERMOPHILUS


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.40 Å
  • R-Value Free:
    0.264 (Depositor)
  • R-Value Work:
    0.222 (Depositor)
  • R-Value Observed:
    0.222 (Depositor)

wwPDB Validation 3D Report Full Report

Validation slider image for 1EHK

This is version 1.4 of the entry. See complete history

Literature

Structure and mechanism of the aberrant ba(3)-cytochrome c oxidase from thermus thermophilus.

Soulimane, T.Buse, G.Bourenkov, G.P.Bartunik, H.D.Huber, R.Than, M.E.

(2000) EMBO J 19: 1766-1776

  • DOI: https://doi.org/10.1093/emboj/19.8.1766
  • Primary Citation Related Structures:
    1EHK

  • PubMed Abstract:

    Cytochrome c oxidase is a respiratory enzyme catalysing the energy-conserving reduction of molecular oxygen to water. The crystal structure of the ba(3)-cytochrome c oxidase from Thermus thermophilus has been determined to 2.4 A resolution using multiple anomalous dispersion (MAD) phasing and led to the discovery of a novel subunit IIa. A structure-based sequence alignment of this phylogenetically very distant oxidase with the other structurally known cytochrome oxidases leads to the identification of sequence motifs and residues that seem to be indispensable for the function of the haem copper oxidases, e.g. a new electron transfer pathway leading directly from Cu(A) to Cu(B). Specific features of the ba(3)-oxidase include an extended oxygen input channel, which leads directly to the active site, the presence of only one oxygen atom (O(2-), OH(-) or H(2)O) as bridging ligand at the active site and the mainly hydrophobic character of the interactions that stabilize the electron transfer complex between this oxidase and its substrate cytochrome c. New aspects of the proton pumping mechanism could be identified.


  • Organizational Affiliation
    • Rheinisch-Westfälische Technische Hochschule Aachen, Institut für Biochemie, Pauwelsstrasse 30, D-52057 Aachen, Germany. tsoulimane@post.klinikum.rwth-aachen.de

Macromolecule Content

  • Total Structure Weight: 87.44 kDa
  • Atom Count: 6,144
  • Modeled Residue Count: 743
  • Deposited Residue Count: 763
  • Unique protein chains: 3

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
BA3-TYPE CYTOCHROME-C OXIDASE562Thermus thermophilus HB8Mutation(s): 0
EC: 1.9.3.1 (PDB Primary Data), 7.1.1.9 (UniProt)
Membrane Entity: Yes
UniProt
Find proteins for Q5SJ79 (Thermus thermophilus (strain ATCC 27634 / DSM 579 / HB8))
Explore Q5SJ79
Go to UniProtKB:  Q5SJ79
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ5SJ79
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage
BA3-TYPE CYTOCHROME-C OXIDASE168Thermus thermophilus HB8Mutation(s): 0
EC: 1.9.3.1 (PDB Primary Data), 7.1.1.9 (UniProt)
Membrane Entity: Yes
UniProt
Find proteins for Q5SJ80 (Thermus thermophilus (strain ATCC 27634 / DSM 579 / HB8))
Explore Q5SJ80
Go to UniProtKB:  Q5SJ80
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ5SJ80
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage
BA3-TYPE CYTOCHROME-C OXIDASE33Thermus thermophilus HB8Mutation(s): 0
EC: 1.9.3.1 (PDB Primary Data), 7.1.1.9 (UniProt)
Membrane Entity: Yes
UniProt
Find proteins for P82543 (Thermus thermophilus (strain ATCC 27634 / DSM 579 / HB8))
Explore P82543
Go to UniProtKB:  P82543
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP82543
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 5 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
HAS

Query on HAS



Download:Ideal Coordinates CCD File
I [auth A]HEME-AS
C54 H64 Fe N4 O6
PDYODZVCODUKFH-ZOMLSHGTSA-L
HEM

Query on HEM



Download:Ideal Coordinates CCD File
H [auth A]PROTOPORPHYRIN IX CONTAINING FE
C34 H32 Fe N4 O4
KABFMIBPWCXCRK-RGGAHWMASA-L
BNG

Query on BNG



Download:Ideal Coordinates CCD File
D [auth A],
E [auth A],
F [auth A]
nonyl beta-D-glucopyranoside
C15 H30 O6
QFAPUKLCALRPLH-UXXRCYHCSA-N
CUA

Query on CUA



Download:Ideal Coordinates CCD File
J [auth B]DINUCLEAR COPPER ION
Cu2
ALKZAGKDWUSJED-UHFFFAOYSA-N
CU

Query on CU



Download:Ideal Coordinates CCD File
G [auth A]COPPER (II) ION
Cu
JPVYNHNXODAKFH-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.40 Å
  • R-Value Free:  0.264 (Depositor)
  • R-Value Work:  0.222 (Depositor)
  • R-Value Observed: 0.222 (Depositor)
Space Group: P 43 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 112.11α = 90
b = 112.11β = 90
c = 161.41γ = 90
Software Package:
Software NamePurpose
SHARPphasing
CNSrefinement
DENZOdata reduction
SCALEPACKdata scaling

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2001-02-22
    Type: Initial release
  • Version 1.1: 2008-04-27
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Source and taxonomy, Version format compliance
  • Version 1.3: 2020-07-29
    Type: Remediation
    Reason: Carbohydrate remediation
    Changes: Advisory, Data collection, Derived calculations, Structure summary
  • Version 1.4: 2024-11-13
    Changes: Advisory, Data collection, Database references, Structure summary
