1WQA | pdb_00001wqa

Crystal Structure of Pyrococcus horikoshii phosphomannomutase/phosphoglucomutase complexed with Mg2+

• PDB DOI: https://doi.org/10.2210/pdb1WQA/pdb

• Classification: ISOMERASE
• Organism(s): Pyrococcus horikoshii
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2004-09-24 Released: 2005-10-04
• Deposition Author(s): Kawamura, T., Tsuge, M., Watanabe, N., Tanaka, I.

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.00 Å
• R-Value Free:
  0.236 (Depositor), 0.230 (DCC)
• R-Value Work:
  0.216 (Depositor), 0.210 (DCC)

Starting Model: experimental

Literature

Crystal structure of Pyrococcus horikoshii phosphomannomutase/phosphoglucomutase

Kawamura, T., Tsuge, M., Watanabe, N., Tanaka, I.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PQS (software)

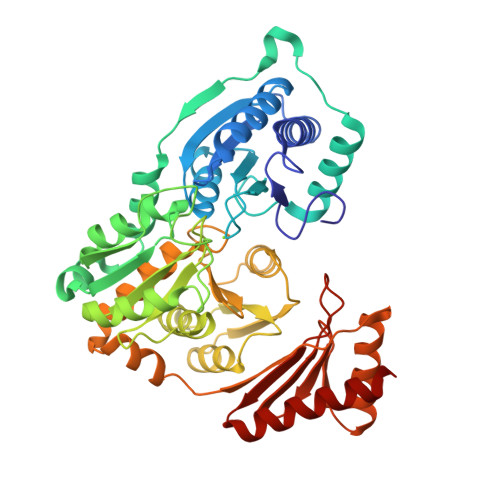

Biological Assembly 2

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 2 assigned by authors and generated by PQS (software)

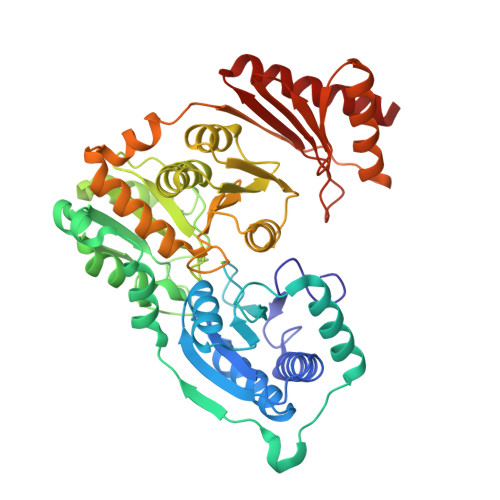

Biological Assembly 3

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 3 assigned by authors and generated by PQS (software)

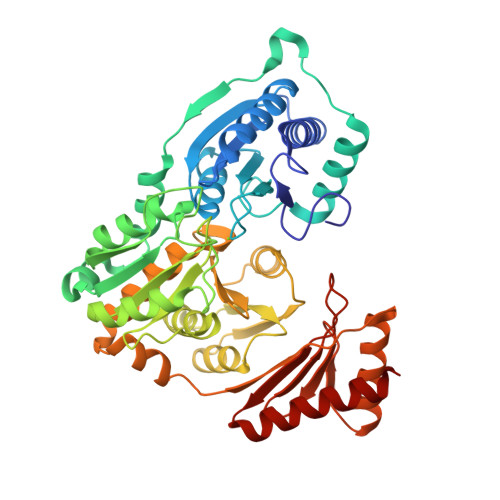

Biological Assembly 4

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 4 assigned by authors and generated by PQS (software)

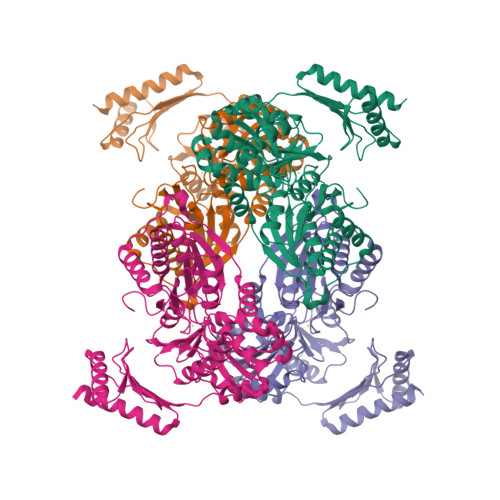

Biological Assembly 5

Global Symmetry: Dihedral - D2  (Explore in 3D)
Global Stoichiometry: Homo 4-mer - A4

Biological assembly 5 generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 199.85 kDa
• Atom Count: 14,766
• Modeled Residue Count: 1,820
• Deposited Residue Count: 1,820
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
phospho-sugar mutase	A, B, C, D	455	Pyrococcus horikoshii	Mutation(s): 0  Gene Names: PH0923 EC: 5.4.2.8
UniProt
Find proteins for O58651 (Pyrococcus horikoshii (strain ATCC 700860 / DSM 12428 / JCM 9974 / NBRC 100139 / OT-3)) Explore O58651  Go to UniProtKB:  O58651

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
MG	E [auth A], F [auth B], G [auth C], H [auth D]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.00 Å
• R-Value Free:  0.236 (Depositor), 0.230 (DCC)
• R-Value Work:  0.216 (Depositor), 0.210 (DCC)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 77.653	α = 90
b = 137.916	β = 93.27
c = 98.409	γ = 90

Software Package:

Software Name	Purpose
DENZO	data reduction
SCALEPACK	data scaling
AMoRE	phasing
CNS	refinement

Structure Validation

Entry History

Deposition Data

• Released Date: 2005-10-04
Deposition Author(s): Kawamura, T., Tsuge, M., Watanabe, N., Tanaka, I.

Revision History

• Version 1.0: 2005-10-04
  Type: Initial release

• Version 1.1: 2008-04-30
  Changes: Version format compliance
• Version 1.2: 2011-07-13
  Changes: Derived calculations, Version format compliance
• Version 1.3: 2023-10-25
  Changes: Data collection, Database references, Derived calculations, Refinement description
