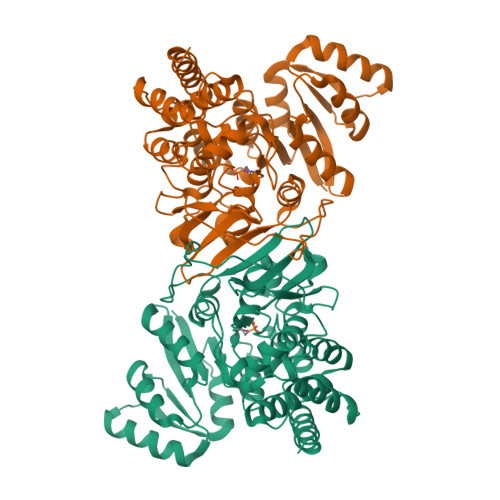

1ONP

IspC complex with Mn2+ and fosmidomycin


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.50 Å
  • R-Value Free: 0.330
  • R-Value Work: 0.255
  • R-Value Observed: 0.260

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.3 of the entry. See complete history


Literature

Structural basis of fosmidomycin action revealed by the complex with 2-C-methyl-D-erythritol 4-phosphate synthase (IspC). Implications for the catalytic mechanism and anti-malaria drug development.

Steinbacher, S.Kaiser, J.Eisenreich, W.Huber, R.Bacher, A.Rohdich, F.

(2003) J Biol Chem 278: 18401-18407

  • DOI: https://doi.org/10.1074/jbc.M300993200
  • Primary Citation of Related Structures:
    1ONN, 1ONO, 1ONP

  • PubMed Abstract:

    2-C-Methyl-d-erythritol 4-phosphate synthase (IspC) is the first enzyme committed to isoprenoid biosynthesis in the methylerythritol phosphate pathway, which represents an alternative route to the classical mevalonate pathway. As it is present in many pathogens and plants, but not in man, this pathway has attracted considerable interest as a target for novel antibiotics and herbicides. Fosmidomycin represents a specific high-affinity inhibitor of IspC. Very recently, its anti-malaria activity in man has been demonstrated in clinical trials. Here, we present the crystal structure of Escherichia coli IspC in complex with manganese and fosmidomycin at 2.5 A resolution. The (N-formyl-N-hydroxy)amino group provides two oxygen ligands to manganese that is present in a distorted octahedral coordination, whereas the phosphonate group is anchored in a specific pocket by numerous hydrogen bonds. Both sites are connected by a spacer of three methylene groups. The substrate molecule, 1-d-deoxyxylulose 5-phosphate, can be superimposed onto fosmidomycin, explaining the stereochemical course of the reaction.


  • Organizational Affiliation

    Max-Planck-Institut für Biochemie, Abteilung für Strukturforschung, Am Klopferspitz 18a, D-82152 Martinsried, Germany. steinbac@caltech.edu


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
1-deoxy-D-xylulose 5-phosphate reductoisomerase
A, B
398Escherichia coliMutation(s): 0
EC: 1.1.1.267
UniProt
Find proteins for P45568 (Escherichia coli (strain K12))
Explore P45568
Go to UniProtKB:  P45568
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP45568
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
FOM
Query on FOM

Download Ideal Coordinates CCD File
D [auth A],
F [auth B]
3-[FORMYL(HYDROXY)AMINO]PROPYLPHOSPHONIC ACID
C4 H10 N O5 P
GJXWDTUCERCKIX-UHFFFAOYSA-N
MN
Query on MN

Download Ideal Coordinates CCD File
C [auth A],
E [auth B]
MANGANESE (II) ION
Mn
WAEMQWOKJMHJLA-UHFFFAOYSA-N
Binding Affinity Annotations
IDSourceBinding Affinity
FOM BindingDB:  1ONP IC50: min: 20, max: 438 (nM) from 6 assay(s)
PDBBind:  1ONP IC50: 30 (nM) from 1 assay(s)
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.50 Å
  • R-Value Free: 0.330
  • R-Value Work: 0.255
  • R-Value Observed: 0.260
  • Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 90.754α = 90
b = 52.301β = 92.11
c = 107.595γ = 90
Software Package:
Software NamePurpose
DENZOdata reduction
SCALEPACKdata scaling
MOLREPphasing
CNSrefinement

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2003-03-18
    Type: Initial release
  • Version 1.1: 2008-04-29
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Version format compliance
  • Version 1.3: 2023-10-25
    Changes: Data collection, Database references, Derived calculations, Refinement description
