1M6D

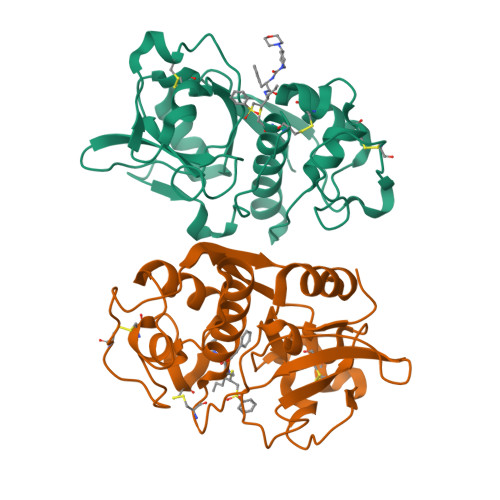

Crystal structure of human cathepsin F


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.7 Å
  • R-Value Free: 0.222
  • R-Value Work: 0.195

wwPDB Validation 3D Report Full Report


This is version 1.4 of the entry. See complete history

Literature

The crystal structure of human cathepsin F and its implications for the development of novel immunomodulators

Somoza, J.R.Palmer, J.T.Ho, J.D.

(2002) J.Mol.Biol. 322: 559-568


  • PubMed Abstract:
  • Cathepsin F is a lysosomal cysteine protease of the papain family, and likely plays a regulatory role in processing the invariant chain that is associated with the major histocompatibility complex (MHC) class II. Evidence suggests that inhibiting cat ...

    Cathepsin F is a lysosomal cysteine protease of the papain family, and likely plays a regulatory role in processing the invariant chain that is associated with the major histocompatibility complex (MHC) class II. Evidence suggests that inhibiting cathepsin F activity will block MHC class II processing in macrophages. Consequently, inhibitors of this enzyme may be useful in treating certain diseases that involve an inappropriate or excessive immune response. We have determined the 1.7A structure of the mature domain of human cathepsin F associated with an irreversible vinyl sulfone inhibitor. This structure provides a basis for understanding cathepsin F's substrate specificity, and suggests ways of identifying potent and selective inhibitors of this enzyme.


    Organizational Affiliation

    Department of Medicinal and Structural Chemistry, Celera, 180 Kimball Way, 94080, South San Francisco, CA, USA. john.somoza@elera.com




Macromolecules

Find similar proteins by: Sequence  |  Structure

Entity ID: 1
MoleculeChainsSequence LengthOrganismDetails
Cathepsin F
A, B
214Homo sapiensMutation(s): 3
Gene Names: CTSF
EC: 3.4.22.41
Find proteins for Q9UBX1 (Homo sapiens)
Go to Gene View: CTSF
Go to UniProtKB:  Q9UBX1
Small Molecules
Ligands 1 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
MYP
Query on MYP

Download SDF File
Download CCD File
A, B
4-MORPHOLIN-4-YL-PIPERIDINE-1-CARBOXYLIC ACID [1-(3-BENZENESULFONYL-1-PROPYL-ALLYLCARBAMOYL)-2-PHENYLETHYL]-AMIDE
C31 H42 N4 O5 S
OFBHNKJTHNHXQT-WNJJXGMVSA-N
 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.7 Å
  • R-Value Free: 0.222
  • R-Value Work: 0.195
  • Space Group: P 21 21 2
Unit Cell:
Length (Å)Angle (°)
a = 68.250α = 90.00
b = 103.260β = 90.00
c = 58.650γ = 90.00
Software Package:
Software NamePurpose
SCALEPACKdata scaling
MAR345data collection
DENZOdata reduction
AMoREphasing
CNXrefinement

Structure Validation

View Full Validation Report or Ramachandran Plots



Entry History

Deposition Data

Revision History

  • Version 1.0: 2003-07-15
    Type: Initial release
  • Version 1.1: 2008-04-28
    Type: Version format compliance
  • Version 1.2: 2011-07-13
    Type: Version format compliance
  • Version 1.3: 2013-07-17
    Type: Non-polymer description
  • Version 1.4: 2017-10-11
    Type: Refinement description
