1KXQ

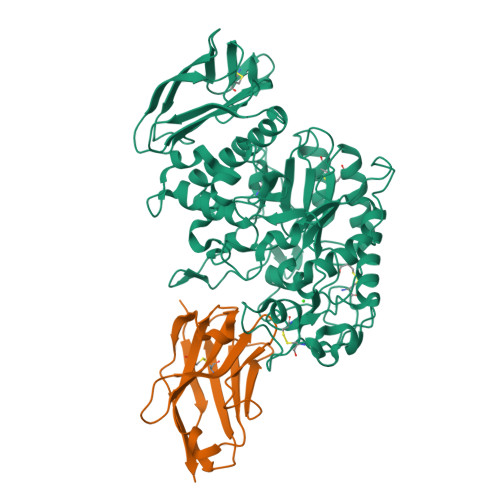

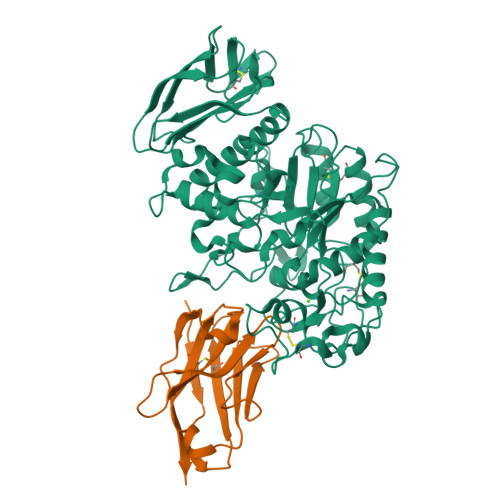

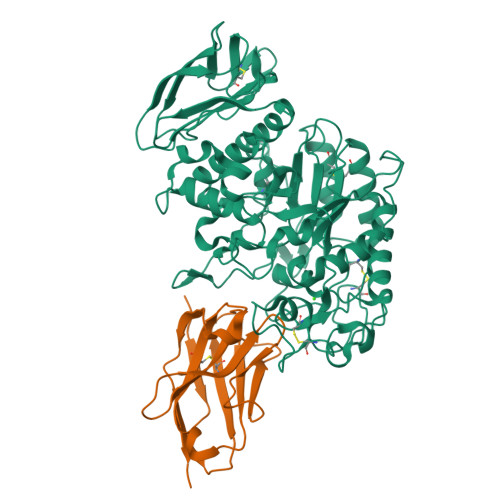

Camelid VHH Domain in Complex with Porcine Pancreatic alpha-Amylase


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.60 Å
  • R-Value Free: 0.219
  • R-Value Work: 0.197

wwPDB Validation 3D Report Full Report


This is version 1.3 of the entry. See complete history


Literature

Three camelid VHH domains in complex with porcine pancreatic alpha-amylase. Inhibition and versatility of binding topology.

Desmyter, A.Spinelli, S.Payan, F.Lauwereys, M.Wyns, L.Muyldermans, S.Cambillau, C.

(2002) J Biol Chem 277: 23645-23650

  • DOI: 10.1074/jbc.M202327200
  • Primary Citation of Related Structures:
    1KXT, 1KXQ, 1KXV

  • PubMed Abstract:
  • Camelids produce functional antibodies devoid of light chains and CH1 domains. The antigen-binding fragment of such heavy chain antibodies is therefore comprised in one single domain, the camelid heavy chain antibody VH (VHH). Here we report on the s ...

    Camelids produce functional antibodies devoid of light chains and CH1 domains. The antigen-binding fragment of such heavy chain antibodies is therefore comprised in one single domain, the camelid heavy chain antibody VH (VHH). Here we report on the structures of three dromedary VHH domains in complex with porcine pancreatic alpha-amylase. Two VHHs bound outside the catalytic site and did not inhibit or inhibited only partially the amylase activity. The third one, AMD9, interacted with the active site crevice and was a strong amylase inhibitor (K(i) = 10 nm). In contrast with complexes of other proteinaceous amylase inhibitors, amylase kept its native structure. The water-accessible surface areas of VHHs covered by amylase ranged between 850 and 1150 A(2), values similar to or even larger than those observed in the complexes between proteins and classical antibodies. These values could certainly be reached because a surprisingly high extent of framework residues are involved in the interactions of VHHs with amylase. The framework residues that participate in the antigen recognition represented 25-40% of the buried surface. The inhibitory interaction of AMD9 involved mainly its complementarity-determining region (CDR) 2 loop, whereas the CDR3 loop was small and certainly did not protrude as it does in cAb-Lys3, a VHH-inhibiting lysozyme. AMD9 inhibited amylase, although it was outside the direct reach of the catalytic residues; therefore it is to be expected that inhibiting VHHs might also be elicited against proteases. These results illustrate the versatility and efficiency of VHH domains as protein binders and enzyme inhibitors and are arguments in favor of their use as drugs against diabetes.


    Related Citations:
    • Potent enzyme inhibitors derived from dromedary heavy-chain antibodies.
      Lauwereys, M., Arbabi Ghahroudi, M., Desmyter, A., Kinne, J., Holzer, W., De Genst, E., Wyns, L., Muyldermans, S.
      (1998) EMBO J 17: 3512
    • Structure and Molecular Model Refinement of Pig Pancreatic alpha-amylase at 2.1 A Resolution
      Qian, M., Haser, R., Payan, F.
      (1993) J Mol Biol 231: 785

    Organizational Affiliation

    Vlaams Interuniversitair Instituut Biotechnologie, Vrije Universiteit Brussel, Paardenstraat 65, B-1640 Sint Genesius Rode, Belgium.



Macromolecules
Find similar proteins by:  (by identity cutoff)  |  Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
alpha-amylase, pancreaticA, B, C, D496Sus scrofaMutation(s): 0
Gene Names: AMY2
EC: 3.2.1.1
Find proteins for P00690 (Sus scrofa)
Explore P00690
Go to UniProtKB:  P00690
Protein Feature View
 ( Mouse scroll to zoom / Hold left click to move )
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  Structure
Entity ID: 2
MoleculeChainsSequence LengthOrganismDetailsImage
antibody VHH fragment CABAMD9E, F, G, H120Camelus dromedariusMutation(s): 0
Protein Feature View
 ( Mouse scroll to zoom / Hold left click to move )
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
CA
Query on CA

Download CCD File
A, B, C, D
CALCIUM ION
Ca
BHPQYMZQTOCNFJ-UHFFFAOYSA-N
 Ligand Interaction
CL
Query on CL

Download CCD File
A, B, C, D
CHLORIDE ION
Cl
VEXZGXHMUGYJMC-UHFFFAOYSA-M
 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.60 Å
  • R-Value Free: 0.219
  • R-Value Work: 0.197
  • Space Group: P 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 65.17α = 79.31
b = 100.92β = 72.63
c = 103.74γ = 86.11
Software Package:
Software NamePurpose
DENZOdata reduction
SCALAdata scaling
AMoREphasing
CNSrefinement
CCP4data scaling

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History

  • Version 1.0: 2002-06-19
    Type: Initial release
  • Version 1.1: 2008-04-27
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Version format compliance
  • Version 1.3: 2018-01-24
    Changes: Database references
