1JH1

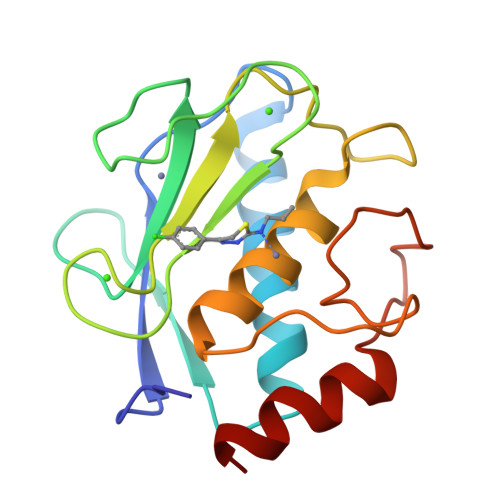

Crystal Structure of MMP-8 complexed with a 6H-1,3,4-thiadiazine derived inhibitor


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.7 Å
  • R-Value Free: 0.264
  • R-Value Work: 0.211

wwPDB Validation 3D Report Full Report


This is version 1.2 of the entry. See complete history

Literature

Structure-based design and synthesis of potent matrix metalloproteinase inhibitors derived from a 6H-1,3,4-thiadiazine scaffold.

Schroder, J.Henke, A.Wenzel, H.Brandstetter, H.Stammler, H.G.Stammler, A.Pfeiffer, W.D.Tschesche, H.

(2001) J.Med.Chem. 44: 3231-3243


  • PubMed Abstract:
  • We describe a new generation of heterocyclic nonpeptide matrix metalloproteinase (MMP) inhibitors derived from a 6H-1,3,4-thiadiazine scaffold. A screening effort was utilized to identify some chiral 6-methyl-1,3,4-thiadiazines that are weak inhibito ...

    We describe a new generation of heterocyclic nonpeptide matrix metalloproteinase (MMP) inhibitors derived from a 6H-1,3,4-thiadiazine scaffold. A screening effort was utilized to identify some chiral 6-methyl-1,3,4-thiadiazines that are weak inhibitors of the catalytic domain of human neutrophil collagenase (cdMMP-8). Further optimization of the lead compounds revealed general design principles that involve the placement of a phenyl or thienyl group at position 5 of the thiadiazine ring, to improve unprimed side affinity; the incorporation of an amino group at position 2 of the thiadiazine ring as the chelating agent for the catalytic zinc; the placement of a N-sulfonamide-substituted amino acid residue at the amino group, to improve primed side affinity; and the attachment of diverse functional groups at position 4 or 5 of the phenyl or thienyl group at the unprimed side, to improve selectivity. The new compounds were assayed against eight different matrix metalloproteinases, MMP-1, cdMMP-2, cdMMP-8, MMP-9, cdMMP-12, cdMMP-13, cdMMP-14, and the ectodomain of MMP-14, respectively. A unique combination of the above-described modifications produced the selective inhibitor (2R)-N-[5-(4-bromophenyl)-6H-1,3,4-thiadiazin-2-yl]-2-[(phenylsulfonyl)amino]propanamide with high affinity for MMP-9 (K(i) = 40 nM). X-ray crystallographic data obtained for cdMMP-8 cocrystallized with N-allyl-5-(4-chlorophenyl)-6H-1,3,4-thiadiazin-2-amine hydrobromide gave detailed design information on binding interactions for thiadiazine-based MMP inhibitors.


    Organizational Affiliation

    Abt. Biochemie I, Universität Bielefeld, Fakultät für Chemie, Universitätsstr. 25, D-33615 Bielefeld, Germany.




Macromolecules

Find similar proteins by: Sequence  |  Structure

Entity ID: 1
MoleculeChainsSequence LengthOrganismDetails
Matrix Metalloproteinase 8
A
158Homo sapiensMutation(s): 0
Gene Names: MMP8 (CLG1)
EC: 3.4.24.34
Find proteins for P22894 (Homo sapiens)
Go to Gene View: MMP8
Go to UniProtKB:  P22894
Small Molecules
Ligands 3 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
ZN
Query on ZN

Download SDF File
Download CCD File
A
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
 Ligand Interaction
CA
Query on CA

Download SDF File
Download CCD File
A
CALCIUM ION
Ca
BHPQYMZQTOCNFJ-UHFFFAOYSA-N
 Ligand Interaction
JST
Query on JST

Download SDF File
Download CCD File
A
BUT-3-ENYL-[5-(4-CHLORO-PHENYL)-3,6-DIHYDRO-[1,3,4]THIADIAZIN-2-YLIDENE]-AMINE
N-ALLYL-5-(4-CHLORO-PHENYL)-6H-1,3,4-THIADIAZIN-2-AMINE
C13 H14 Cl N3 S
ZVZPCRKQNRRBOQ-UHFFFAOYSA-N
 Ligand Interaction
External Ligand Annotations
IDBinding Affinity (Sequence Identity %)
JSTKi: 41000 nM PDBBIND
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.7 Å
  • R-Value Free: 0.264
  • R-Value Work: 0.211
  • Space Group: P 21 21 21
Unit Cell:
Length (Å)Angle (°)
a = 32.990α = 90.00
b = 69.380β = 90.00
c = 72.090γ = 90.00
Software Package:
Software NamePurpose
CNSrefinement
AMoREphasing
MOSFLMdata reduction
CCP4data scaling

Structure Validation

View Full Validation Report or Ramachandran Plots



Entry History

Deposition Data

Revision History

  • Version 1.0: 2001-12-27
    Type: Initial release
  • Version 1.1: 2008-04-27
    Type: Version format compliance
  • Version 1.2: 2011-07-13
    Type: Version format compliance
