1G50

CRYSTAL STRUCTURE OF A WILD TYPE HER ALPHA LBD AT 2.9 ANGSTROM RESOLUTION


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.90 Å
  • R-Value Free: 0.310
  • R-Value Work: 0.241
  • R-Value Observed: 0.241

wwPDB Validation 3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Overexpression, Purification, and Crystal Structure of Native ER alpha LBD

Eiler, S.Gangloff, M.Duclaud, S.Moras, D.Ruff, M.

(2001) Protein Expr Purif 22: 165-173

  • DOI: 10.1006/prep.2001.1409
  • Structures With Same Primary Citation

  • PubMed Abstract:
  • Several crystal structures of human estrogen receptor alpha ligand-binding domain (hERalpha LBD) complexed with agonist or antagonist molecules have previously been solved. The proteins had been modified in cysteine residues (carboxymethylation) or r ...

    Several crystal structures of human estrogen receptor alpha ligand-binding domain (hERalpha LBD) complexed with agonist or antagonist molecules have previously been solved. The proteins had been modified in cysteine residues (carboxymethylation) or renatured in urea to circumvent aggregation and denaturation problems. In this work, high-level protein expression and purification together with crystallization screening procedure yielded high amounts of soluble protein without renaturation or modifications steps. The native protein crystallizes in the space group P3(2) 21 with three molecules in the asymmetric unit. The overall structure is very similar to that previously reported for the hERalpha LBD with cysteine carboxymethylated residues thus validating the modification approach. The present strategy can be adapted to other cases where the solubility and the proper folding is a difficulty.


    Organizational Affiliation

    Laboratoire de Biologie et Génomique Structurales 1, IGBMC, rue Laurent Fries, Illkirch, 67404, France.

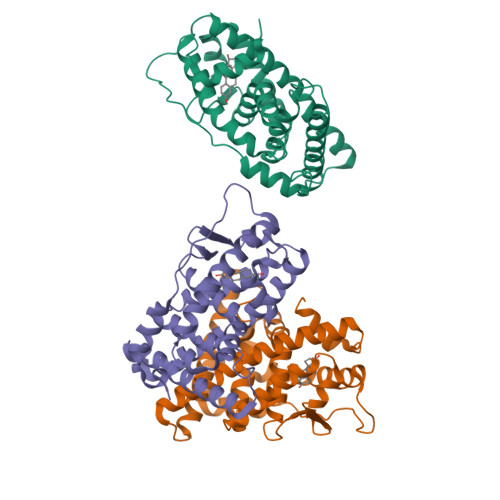

Macromolecules

Find similar proteins by: Sequence  |  Structure

Entity ID: 1
MoleculeChainsSequence LengthOrganismDetails
ESTROGEN RECEPTOR
A, B, C
247Homo sapiensMutation(s): 0
Gene Names: ESR1ESRNR3A1
Find proteins for P03372 (Homo sapiens)
Go to UniProtKB:  P03372
NIH Common Fund Data Resources
PHAROS  P03372
Small Molecules
Ligands 1 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
EST
Query on EST

Download CCD File
A, B, C
ESTRADIOL
C18 H24 O2
VOXZDWNPVJITMN-ZBRFXRBCSA-N
 Ligand Interaction
External Ligand Annotations
IDBinding Affinity (Sequence Identity %)
ESTIC50:  1.2999999523162842   nM  BindingDB
ESTIC50:  12.5   nM  BindingDB
ESTIC50:  10   nM  BindingDB
ESTIC50:  11   nM  BindingDB
ESTEC50:  0.3700000047683716   nM  BindingDB
ESTIC50:  0.009999999776482582   nM  BindingDB
ESTKi:  12   nM  BindingDB
ESTIC50:  0.8999999761581421   nM  BindingDB
ESTEC50:  2.4000000953674316   nM  BindingDB
ESTIC50:  2.200000047683716   nM  BindingDB
ESTIC50:  1.899999976158142   nM  BindingDB
ESTIC50:  24   nM  BindingDB
ESTEC50:  0.49000000953674316   nM  BindingDB
ESTEC50:  0.019999999552965164   nM  BindingDB
ESTIC50:  1.2000000476837158   nM  BindingDB
ESTKi:  0.6499999761581421   nM  BindingDB
ESTIC50:  18   nM  BindingDB
ESTIC50:  3   nM  BindingDB
ESTEC50:  0.009999999776482582   nM  BindingDB
ESTKi:  0.8299999833106995   nM  BindingDB
ESTIC50:  2   nM  BindingDB
ESTEC50:  0.75   nM  BindingDB
ESTIC50:  2   nM  BindingDB
ESTEC50:  1   nM  BindingDB
ESTEC50:  0.10000000149011612   nM  BindingDB
ESTKi:  100   nM  BindingDB
ESTIC50:  4   nM  BindingDB
ESTEC50:  0.5600000023841858   nM  BindingDB
ESTIC50:  1.600000023841858   nM  BindingDB
ESTEC50:  2.299999952316284   nM  BindingDB
ESTIC50:  1.350000023841858   nM  BindingDB
ESTEC50:  5.699999809265137   nM  BindingDB
ESTIC50:  0.75   nM  BindingDB
ESTIC50:  0.4099999964237213   nM  BindingDB
ESTKd:  0.20000000298023224   nM  BindingDB
ESTKd :  530   nM  PDBBind
ESTIC50:  1.899999976158142   nM  BindingDB
ESTEC50:  0.699999988079071   nM  BindingDB
ESTEC50:  3   nM  BindingDB
ESTKi:  2.200000047683716   nM  BindingDB
ESTIC50:  0.5   nM  BindingDB
ESTEC50:  0.47999998927116394   nM  BindingDB
ESTIC50:  3.200000047683716   nM  BindingDB
ESTEC50:  0.15000000596046448   nM  BindingDB
ESTKi:  0.1599999964237213   nM  BindingDB
ESTEC50:  0.09000000357627869   nM  BindingDB
ESTIC50:  21.040000915527344   nM  BindingDB
ESTKi:  2   nM  BindingDB
ESTIC50:  4.400000095367432   nM  BindingDB
ESTEC50:  5.699999809265137   nM  BindingDB
ESTEC50:  2.7699999809265137   nM  BindingDB
ESTIC50:  1   nM  BindingDB
ESTIC50:  5.900000095367432   nM  BindingDB
ESTEC50:  0   nM  BindingDB
ESTEC50:  0.05000000074505806   nM  BindingDB
ESTIC50:  1.7000000476837158   nM  BindingDB
ESTIC50:  4.699999809265137   nM  BindingDB
ESTIC50:  46   nM  BindingDB
ESTEC50:  1.0499999523162842   nM  BindingDB
ESTEC50:  10   nM  BindingDB
ESTEC50:  0.1599999964237213   nM  BindingDB
ESTIC50:  5.699999809265137   nM  BindingDB
ESTEC50:  2.200000047683716   nM  BindingDB
ESTIC50:  1.399999976158142   nM  BindingDB
ESTEC50:  0.07000000029802322   nM  BindingDB
ESTEC50:  0.11999999731779099   nM  BindingDB
ESTIC50:  3.5999999046325684   nM  BindingDB
ESTIC50:  28   nM  BindingDB
ESTIC50:  3.4000000953674316   nM  BindingDB
ESTIC50:  0.8199999928474426   nM  BindingDB
ESTEC50:  0.07999999821186066   nM  BindingDB
ESTKi:  0.30000001192092896   nM  BindingDB
ESTEC50:  0.5899999737739563   nM  BindingDB
ESTIC50:  0.699999988079071   nM  BindingDB
ESTIC50:  0.5699999928474426   nM  BindingDB
ESTKi:  0.20999999344348907   nM  BindingDB
ESTEC50:  3.200000047683716   nM  BindingDB
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.90 Å
  • R-Value Free: 0.310
  • R-Value Work: 0.241
  • R-Value Observed: 0.241
  • Space Group: P 32 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 105.5α = 90
b = 105.5β = 90
c = 136.08γ = 120
Software Package:
Software NamePurpose
AMoREphasing
CNSrefinement
DENZOdata reduction
SCALEPACKdata scaling

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History

  • Version 1.0: 2002-02-06
    Type: Initial release
  • Version 1.1: 2008-04-27
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Version format compliance
