9YBJ | pdb_00009ybj

[2UDS] Double crossover-like DNA motif containing a mobile junction

• PDB DOI: https://doi.org/10.2210/pdb9YBJ/pdb
• NAKB: 9YBJ

• Classification: DNA
• Organism(s): synthetic construct
• Mutation(s): No


• Deposited: 2025-09-17 Released: 2025-10-22
• Deposition Author(s): Horvath, A., Singh, V.R., Vecchioni, S., Ohayon, Y.P., Sha, R.
• Funding Organization(s): Office of Naval Research (ONR), Department of Energy (DOE, United States), National Science Foundation (NSF, United States)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.14 Å
• R-Value Free:
  0.285 (Depositor), 0.283 (DCC)
• R-Value Work:
  0.267 (Depositor), 0.267 (DCC)
• R-Value Observed:
  0.268 (Depositor)

Starting Model: experimental

Literature

Mobile Junction in Double Crossover-Like Tiles

Singh, V.R., Horvath, A., Vecchioni, S., Ohayon, Y.P., Sha, R.

To be published.

Biological Assembly 1

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly Evidence: native gel electrophoresis

Macromolecule Content

• Total Structure Weight: 9.8 kDa
• Atom Count: 650
• Modeled Residue Count: 32
• Deposited Residue Count: 32
• Unique nucleic acid chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Length	Organism	Image

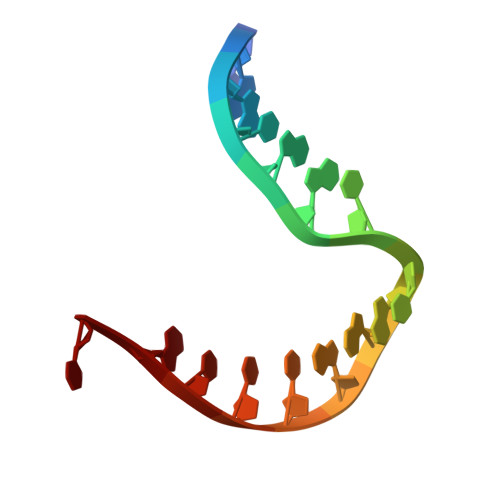

DNA (5'-D(*TP*GP*AP*CP*GP*GP*CP*TP*GP*GP*AP*CP*TP*CP*G)-3')	A	16	synthetic construct

Entity ID: 2
Molecule	Chains	Length	Organism	Image
DNA (5'-D(*CP*AP*AP*GP*CP*CP*GP*TP*GP*AP*GP*TP*CP*CP*AP*C)-3')	B	16	synthetic construct

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.14 Å
• R-Value Free:  0.285 (Depositor), 0.283 (DCC)
• R-Value Work:  0.267 (Depositor), 0.267 (DCC)
• R-Value Observed: 0.268 (Depositor)

Space Group: P 4₃

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 34.864	α = 90
b = 34.864	β = 90
c = 103.212	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
autoPROC	data reduction
STARANISO	data scaling
PHASER	phasing

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2025-10-22
Deposition Author(s): Horvath, A., Singh, V.R., Vecchioni, S., Ohayon, Y.P., Sha, R.

---

Funding Organization	Location	Grant Number
Office of Naval Research (ONR)	United States	N000141912596
Department of Energy (DOE, United States)	United States	DE-SC0007991
National Science Foundation (NSF, United States)	United States	CCF-2106790
National Science Foundation (NSF, United States)	United States	GCR-2317843

Revision History

• Version 1.0: 2025-10-22
  Type: Initial release
