9Y74 | pdb_00009y74

[22L-7B C|A] 22 bp L-DNA tensegrity triangle that propagates via blunt-end stacking with C stacking on A at the interface

• PDB DOI: https://doi.org/10.2210/pdb9Y74/pdb
• NAKB: 9Y74

• Classification: DNA
• Organism(s): synthetic construct
• Mutation(s): No


• Deposited: 2025-09-09 Released: 2025-11-05
• Deposition Author(s): Horvath, A., Woloszyn, K., Vecchioni, S., Ohayon, Y.P., Sha, R.
• Funding Organization(s): Office of Naval Research (ONR), Department of Energy (DOE, United States), National Science Foundation (NSF, United States)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 8.76 Å
• R-Value Free:
  0.317 (Depositor), 0.296 (DCC)
• R-Value Work:
  0.237 (Depositor), 0.235 (DCC)
• R-Value Observed:
  0.238 (Depositor)

Starting Model: experimental

Literature

Blunt-End Tensegrity Triangles

Horvath, A., Woloszyn, K., Vecchioni, S., Ohayon, Y.P., Sha, R.

To be published.

Biological Assembly 1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: native gel electrophoresis

Macromolecule Content

• Total Structure Weight: 13.41 kDa
• Atom Count: 896
• Modeled Residue Count: 44
• Deposited Residue Count: 44
• Unique nucleic acid chains: 4

Macromolecules

Entity ID: 1
Molecule	Chains	Length	Organism	Image

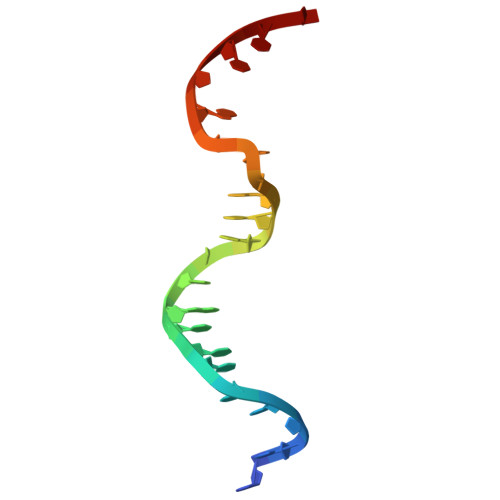

DNA (5'-D(*(0DC)P*(0DG)P*(0DA)P*(0DT)P*(0DG)P*(0DC)P*(0DC)P*(0DT)P*(0DG)P*(0DT)P*(0DA)P*(0DC)P*(0DG)(0DG)P*(0DA)P*(0DC)P*(0DA)P*(0DG)P*(0DA)P*(0DT)P*(0DC)P*(0DA))-3')	A	22	synthetic construct

Entity ID: 2
Molecule	Chains	Length	Organism	Image

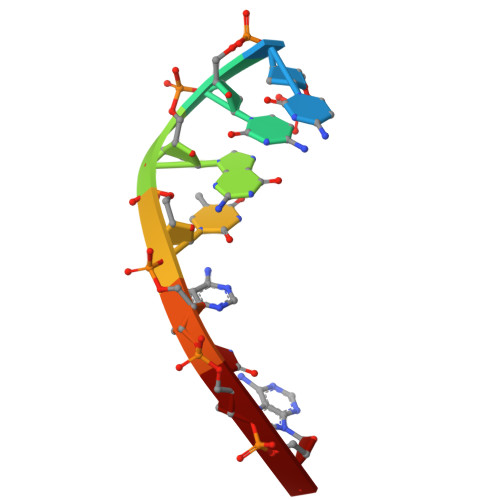

DNA (5'-D(P*(0DC)P*(0DC)P*(0DG)P*(0DT)P*(0DA)P*(0DC)P*(0DA))-3')	B	7	synthetic construct

Entity ID: 3
Molecule	Chains	Length	Organism	Image

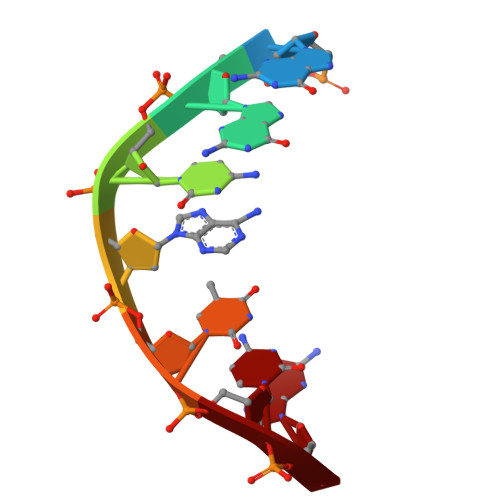

DNA (5'-D(P*(0DG)P*(0DG)P*(0DC)P*(0DA)P*(0DT)P*(0DC)P*(0DG))-3')	C	7	synthetic construct

Entity ID: 4
Molecule	Chains	Length	Organism	Image
DNA (5'-D(*(0DT)P*(0DG)P*(0DA)P*(0DT)P*(0DC)P*(0DT)P*(0DG)P*(0DT))-3')	D	8	synthetic construct

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 8.76 Å
• R-Value Free:  0.317 (Depositor), 0.296 (DCC)
• R-Value Work:  0.237 (Depositor), 0.235 (DCC)
• R-Value Observed: 0.238 (Depositor)

Space Group: P 6₃

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 130.403	α = 90
b = 130.403	β = 90
c = 61.962	γ = 120

Software Package:

Software Name	Purpose
PHENIX	refinement
autoPROC	data reduction
STARANISO	data scaling
PHASER	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-11-05
Deposition Author(s): Horvath, A., Woloszyn, K., Vecchioni, S., Ohayon, Y.P., Sha, R.

---

Funding Organization	Location	Grant Number
Office of Naval Research (ONR)	United States	N000141912596
Department of Energy (DOE, United States)	United States	DE-SC0007991
National Science Foundation (NSF, United States)	United States	CCF-2106790
National Science Foundation (NSF, United States)	United States	GCR-2317843

Revision History

• Version 1.0: 2025-11-05
  Type: Initial release
