9Y1O | pdb_00009y1o

The structure of the Plasmodium falciparum 20S proteasome

  • Classification: HYDROLASE
  • Organism(s): Plasmodium falciparum Dd2
  • Expression System: Spodoptera frugiperda
  • Mutation(s): No

  • Deposited: 2025-08-29 Released: 2025-10-08
  • Deposition Author(s): Zhang, H., Zhao, J., Fajtova, P., O'Donoghue, A.J.
  • Funding Organization(s): Department of Defense (DOD, United States), National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID), National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS), National Institutes of Health/Office of the Director, National Institutes of Health/National Cancer Institute (NIH/NCI), H2020 Marie Curie Actions of the European Commission, European Union (EU), Ministry of Education, Youth and Sports of the Czech Republic, European Regional Development Fund

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.10 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history.


Literature

Incorrectly assembled half-Pf20S

Zhang, H., Zhao, J., Fajtova, P., O'Donoghue, A.J.

To be published.

Macromolecules
Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome subunit alpha type-6A,
X [auth O]		260Plasmodium falciparum Dd2Mutation(s): 0
Gene Names: PF3D7_0807500
EC: 3.4.25.1
UniProt
Find proteins for Q8IAR3 (Plasmodium falciparum (isolate 3D7))
Explore Q8IAR3
Go to UniProtKB:  Q8IAR3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8IAR3
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:
(by identity cutoff)  |  3D Structure

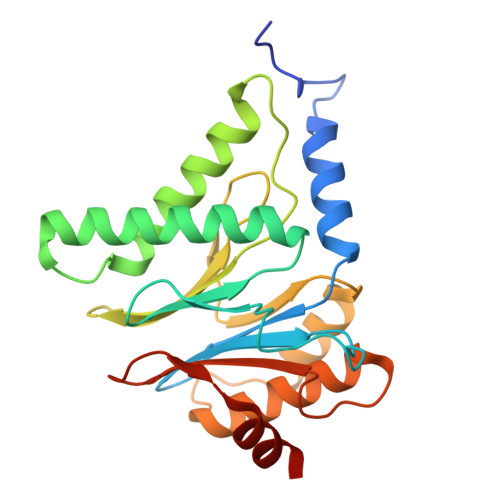

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome subunit alpha type-2B,
O [auth P]		235Plasmodium falciparum Dd2Mutation(s): 0
Gene Names: PF3D7_0608500
UniProt
Find proteins for C6KST3 (Plasmodium falciparum (isolate 3D7))
Explore C6KST3
Go to UniProtKB:  C6KST3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupC6KST3
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome subunit alpha type-3C,
P [auth Q]		246Plasmodium falciparum Dd2Mutation(s): 0
Gene Names: PF3D7_1353800
UniProt
Find proteins for Q8IDG3 (Plasmodium falciparum (isolate 3D7))
Explore Q8IDG3
Go to UniProtKB:  Q8IDG3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8IDG3
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:
(by identity cutoff)  |  3D Structure

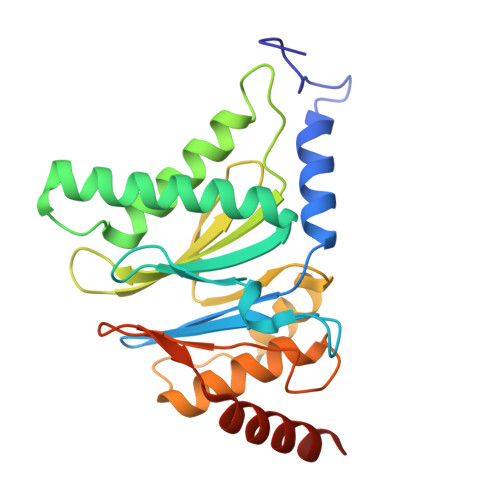

Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome subunit alpha type-4D,
Q [auth R]		241Plasmodium falciparum Dd2Mutation(s): 0
Gene Names: PF3D7_1353900
UniProt
Find proteins for Q8IDG2 (Plasmodium falciparum (isolate 3D7))
Explore Q8IDG2
Go to UniProtKB:  Q8IDG2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8IDG2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome subunit alpha type-5E,
R [auth S]		256Plasmodium falciparum Dd2Mutation(s): 0
Gene Names: PFDG_00127
UniProt
Find proteins for A0A0L7LVZ5 (Plasmodium falciparum (isolate Dd2))
Explore A0A0L7LVZ5
Go to UniProtKB:  A0A0L7LVZ5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0L7LVZ5
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:
(by identity cutoff)  |  3D Structure

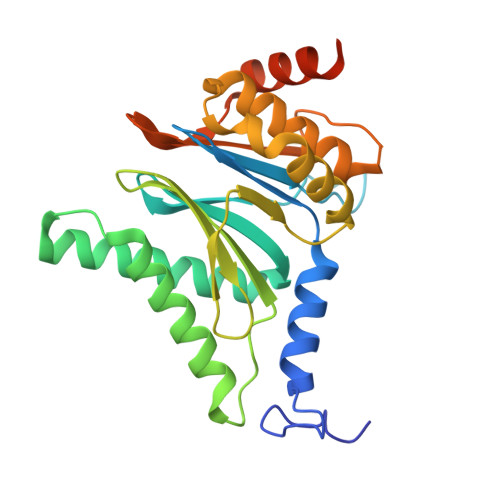

Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome subunit alpha type-1F,
Z [auth T]		254Plasmodium falciparum Dd2Mutation(s): 0
Gene Names: PF3D7_1474800
EC: 3.4.25.1
UniProt
Find proteins for Q8IK90 (Plasmodium falciparum (isolate 3D7))
Explore Q8IK90
Go to UniProtKB:  Q8IK90
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8IK90
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome subunit alpha type-3G,
Y [auth U]		252Plasmodium falciparum Dd2Mutation(s): 0
Gene Names: PF3D7_0317000
EC: 3.4.25.1
UniProt
Find proteins for O77396 (Plasmodium falciparum (isolate 3D7))
Explore O77396
Go to UniProtKB:  O77396
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO77396
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:
(by identity cutoff)  |  3D Structure

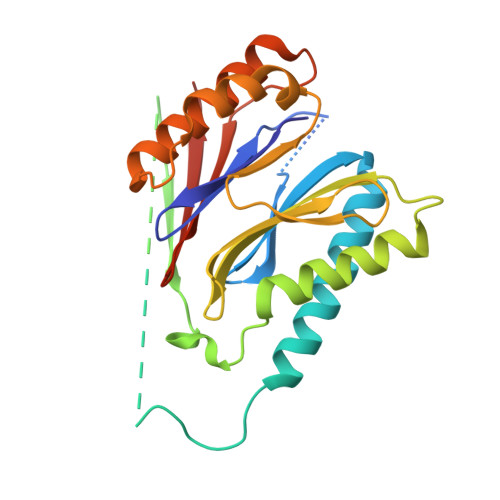

Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome endopeptidase complexH,
S [auth V]		252Plasmodium falciparum Dd2Mutation(s): 0
Gene Names: PFDG_02566
UniProt
Find proteins for A0A0L7M1M6 (Plasmodium falciparum (isolate Dd2))
Explore A0A0L7M1M6
Go to UniProtKB:  A0A0L7M1M6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0L7M1M6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:
(by identity cutoff)  |  3D Structure

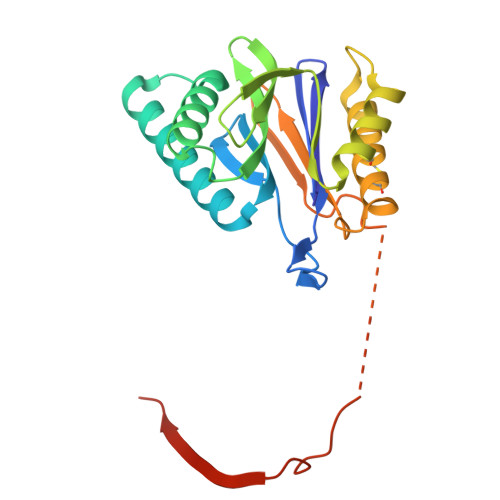

Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome subunit beta-2I,
T [auth W]		229Plasmodium falciparum Dd2Mutation(s): 0
Gene Names: PF3D7_1328100
UniProt
Find proteins for Q8I6T3 (Plasmodium falciparum (isolate 3D7))
Explore Q8I6T3
Go to UniProtKB:  Q8I6T3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8I6T3
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:
(by identity cutoff)  |  3D Structure

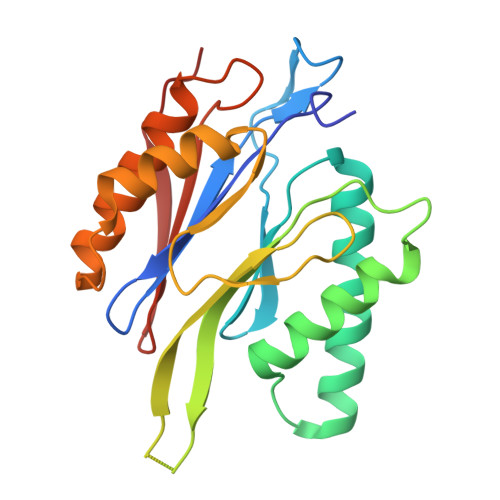

Entity ID: 10
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome subunit beta-3AA [auth X],
J		218Plasmodium falciparum Dd2Mutation(s): 0
Gene Names: PF3D7_0108000
UniProt
Find proteins for Q8I261 (Plasmodium falciparum (isolate 3D7))
Explore Q8I261
Go to UniProtKB:  Q8I261
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8I261
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 11
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome subunit beta-4BA [auth Y],
K		195Plasmodium falciparum Dd2Mutation(s): 0
Gene Names: PF3D7_1470900
UniProt
Find proteins for Q8IKC9 (Plasmodium falciparum (isolate 3D7))
Explore Q8IKC9
Go to UniProtKB:  Q8IKC9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8IKC9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:
(by identity cutoff)  |  3D Structure

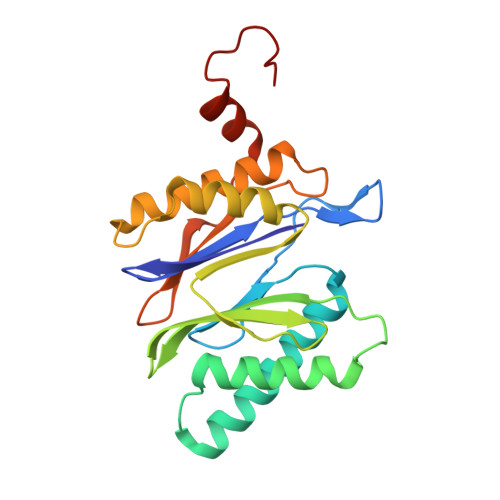

Entity ID: 12
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome subunit beta-5L,
U [auth Z]		211Plasmodium falciparum Dd2Mutation(s): 0
Gene Names: PF3D7_1011400
UniProt
Find proteins for Q8IJT1 (Plasmodium falciparum (isolate 3D7))
Explore Q8IJT1
Go to UniProtKB:  Q8IJT1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8IJT1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:
(by identity cutoff)  |  3D Structure

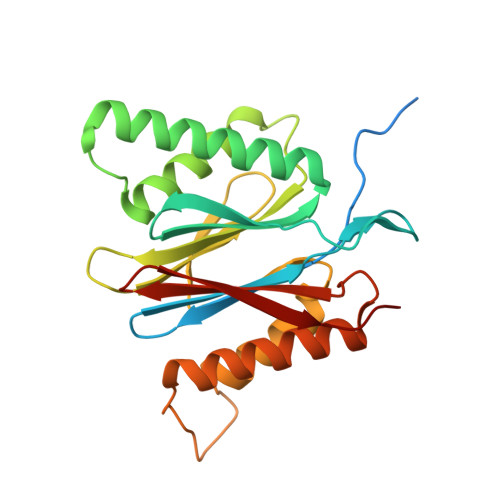

Entity ID: 13
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome subunit betaM [auth N],
W [auth b]		302Plasmodium falciparum Dd2Mutation(s): 0
Gene Names: PFDG_00103
UniProt
Find proteins for A0A0L7LW03 (Plasmodium falciparum (isolate Dd2))
Explore A0A0L7LW03
Go to UniProtKB:  A0A0L7LW03
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0L7LW03
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 14
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome subunit betaN [auth M],
V [auth a]		240Plasmodium falciparum Dd2Mutation(s): 0
Gene Names: CK202_3362, CYL21_3125
UniProt
Find proteins for A0A2I0BU46 (Plasmodium falciparum (isolate NF54))
Explore A0A2I0BU46
Go to UniProtKB:  A0A2I0BU46
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A2I0BU46
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.10 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



View more in-depth experimental data
Entry History & Funding Information

Deposition Data

Funding OrganizationLocationGrant Number
Department of Defense (DOD, United States)United StatesW81XWH2210520
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United StatesR01 AI158612
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United StatesR21 AI146387
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United StatesR21 AI133393
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United StatesR21 AI171824
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesR35 GM147487
National Institutes of Health/Office of the DirectorUnited StatesS10 OD026926
National Institutes of Health/National Cancer Institute (NIH/NCI)United StatesP30 CA030199
H2020 Marie Curie Actions of the European CommissionEuropean Union846688
European Union (EU)European UnionLX22NPO5103
Ministry of Education, Youth and Sports of the Czech RepublicCzech RepublicLM2023042
European Regional Development FundEuropean UnionCZ.02.01.01/00/23_015/0008175

Revision History  (Full details and data files)

  • Version 1.0: 2025-10-08
    Type: Initial release
  • Version 1.1: 2025-12-10
    Changes: Data collection, Structure summary
