9UOA | pdb_00009uoa

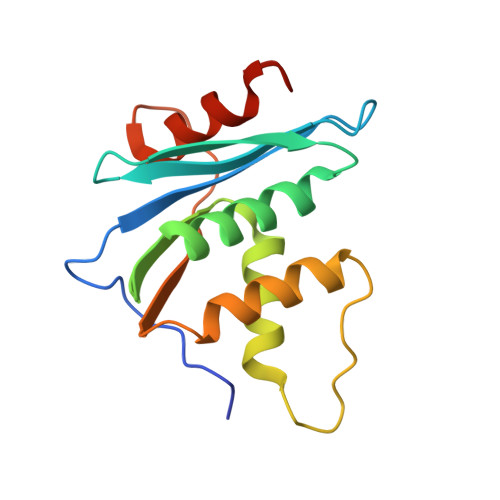

Crystal structure of HIV-1 Reverse Transcriptase RNase H domain complexed with a galloyl inhibitor


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.96 Å
  • R-Value Free:
    0.282 (Depositor), 0.291 (DCC)
  • R-Value Work:
    0.251 (Depositor), 0.258 (DCC)
  • R-Value Observed:
    0.254 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

Structural Analysis of HIV-1 RNase H Bound to a Galloyl Active Site Inhibitor and Computational Compound Modification.

Wei, S.Fujimoto, K.Tang, K.Zhan, P.Menendez-Arias, L.Hoshino, T.

(2025) Biochemistry 64: 3695-3705

  • DOI: https://doi.org/10.1021/acs.biochem.5c00266
  • Primary Citation of Related Structures:
    9UOA

  • PubMed Abstract:

    The emergence of drug-resistant viruses is a significant concern for the treatment of human immunodeficiency virus type-1 (HIV-1) infection, despite the availability of various drugs that block viral replication and propagation. Drugs that act upon unexploited targets of the viral replicative cycle may be able to circumvent resistance. The RNase H activity of HIV-1 reverse transcriptase is a viral enzymatic function for which no approved inhibitors are available. The active site of RNase H contains two metal cations that are required for catalysis. In this study, we describe the X-ray crystal structure of p15Ec (an HIV-1 RNase H domain recombinant protein) bound to an active-site inhibitor containing a pyrogallol moiety with chelating properties. The analysis revealed three hydroxyl oxygen atoms on the pyrogallol that firmly chelate two metal ions at the catalytic site. Molecular mechanics (MM) calculations were performed to determine the contributions of the respective compound atoms to the binding score. The analysis suggested that a piperazine moiety connected to the pyrogallol was not required to interact with the RNase H domain. A total of 6,757 derivatives were generated by replacing piperazine with other chemical groups. This was reduced to 5,567 following optimization of their binding poses by MM calculations, which indicated that the pyrogallol moiety maintained coordination with metal ions at the active site. Twelve candidate compounds with the best binding scores were selected as novel galloyl derivatives with improved RNase H inhibitory activity.


  • Organizational Affiliation
    • Laboratory of Molecular Design Graduate School of Pharmaceutical Sciences, Chiba University, 1-8-1 Inohana, Chuo-ku, Chiba 260-8675, Japan.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Reverse transcriptase/RNaseH151Human immunodeficiency virus 1Mutation(s): 0
Gene Names: pol
UniProt
Find proteins for Q72547 (Human immunodeficiency virus type 1)
Explore Q72547
Go to UniProtKB:  Q72547
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ72547
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.96 Å
  • R-Value Free:  0.282 (Depositor), 0.291 (DCC)
  • R-Value Work:  0.251 (Depositor), 0.258 (DCC)
  • R-Value Observed: 0.254 (Depositor)
Space Group: P 41 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 61.255α = 90
b = 61.255β = 90
c = 83.122γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
Aimlessdata scaling
PDB_EXTRACTdata extraction
XDSdata reduction
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Japan Society for the Promotion of Science (JSPS)Japan--

Revision History  (Full details and data files)

  • Version 1.0: 2025-05-14
    Type: Initial release
  • Version 1.1: 2025-08-27
    Changes: Database references
  • Version 1.2: 2025-09-17
    Changes: Database references
