9UGT | pdb_00009ugt

Structure of Butanol Dehydrogenase in Complex with ADP and Co


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.72 Å
  • R-Value Free:
    0.249 (Depositor), 0.247 (DCC)
  • R-Value Work:
    0.201 (Depositor), 0.203 (DCC)
  • R-Value Observed:
    0.206 (Depositor)

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history


Literature

Structural flexibility of the nicotinamide group of NADH in butanol dehydrogenase YqdH from Fusobacterium nucleatum.

Bai, X.Nam, K.H.Xu, Y.

(2025) PLoS One 20: e0338369-e0338369

  • DOI: https://doi.org/10.1371/journal.pone.0338369
  • Primary Citation Related Structures:
    9UGS, 9UGT

  • PubMed Abstract:

    Butanol dehydrogenases (BDHs) are NAD(P)H-dependent oxidoreductases that catalyze the reversible conversion of butanol to butyraldehyde. These enzymes play essential roles in microbial butanol fermentation and show significant potential for biofuel synthesis and bioremediation. The crystal structures of BDHs from Fusobacterium nucleatum and Thermotoga maritima have clarified cofactor recognition and proposed reaction mechanisms. However, their distinct cofactor-binding modes and conformational differences in the substrate-binding cleft remain poorly characterized. In this study, we report the crystal structure of Fusobacterium nucleatum butanol dehydrogenase YqdH (FnYqdH) in a partially NADH-bound state. Electron density map analysis showed stable binding of the adenosine and diphosphate groups of NADH to the nucleotide-binding domain of FnYqdH. Conversely, the nicotinamide group was not observed, indicating that it was in an unbound state. Structural comparisons of FnYqdH complexed with either partial ADP or NADH revealed that the adenosine group is stabilized by hydrogen bonds with Thr143, Thr187, and Val184. Nicotinamide group binding induces positional and conformational changes in the diphosphate group of NADH. A comparative analysis of FnYqdH and TmBDH proteins revealed distinct conformational differences between their nucleotide-binding and catalytic domains, including variations in their substrate-binding metal ion sites. In particular, amino acid sequence and structural analyses of the BDH family revealed significant variability in the residues responsible for metal ion binding. Based on the observed flexibility of the nicotinamide group of NADH and the open conformation of FnYqdH, a potential reaction mechanism of FnYqdH is proposed. These findings offer valuable insights into the cofactor and substrate recognition within the BDH protein family.


  • Organizational Affiliation
    • Department of Bioengineering, College of Life Science, Dalian Minzu University, Dalian, Liaoning, China.

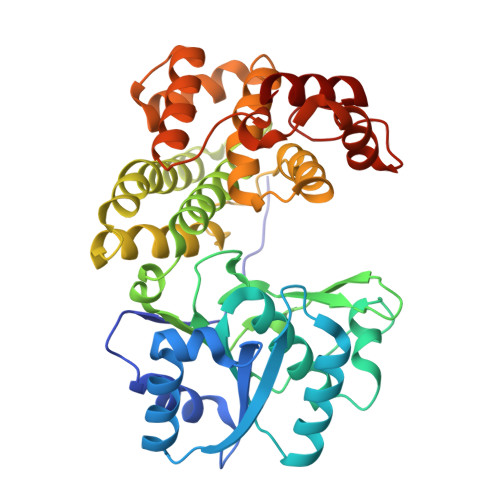

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
NADH-dependent butanol dehydrogenase A385Fusobacterium nucleatumMutation(s): 0
Gene Names: FN1415
EC: 1.1.1
UniProt
Find proteins for Q8R612 (Fusobacterium nucleatum subsp. nucleatum (strain ATCC 25586 / DSM 15643 / BCRC 10681 / CIP 101130 / JCM 8532 / KCTC 2640 / LMG 13131 / VPI 4355))
Explore Q8R612
Go to UniProtKB:  Q8R612
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8R612
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.72 Å
  • R-Value Free:  0.249 (Depositor), 0.247 (DCC)
  • R-Value Work:  0.201 (Depositor), 0.203 (DCC)
  • R-Value Observed: 0.206 (Depositor)
Space Group: I 2 2 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 64.426α = 90
b = 79.351β = 90
c = 212.932γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
HKL-2000data reduction
HKL-2000data collection
HKL-2000data scaling
PHENIXphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Research Foundation (NRF, Korea)Korea, Republic OfNRF- 2017M3A9F6029736
National Research Foundation (NRF, Korea)Korea, Republic OfNRF-2020M3H1A1075314
National Research Foundation (NRF, Korea)Korea, Republic OfNRF-2021R1I1A1A01050838

Revision History  (Full details and data files)

  • Version 1.0: 2025-10-29
    Type: Initial release
  • Version 1.1: 2026-04-08
    Changes: Database references
