9U9V | pdb_00009u9v

beta2-adrenergic receptor in complex with methamphetamine

  • Classification: MEMBRANE PROTEIN
  • Organism(s): Homo sapiens
  • Expression System: Trichoplusia ni
  • Mutation(s): No
  • Membrane Protein: Yes  MemProtMD

  • Deposited: 2025-03-29 Released: 2025-09-03
  • Deposition Author(s): Shan, W., Shan, W.
  • Funding Organization(s): Ministry of Science and Technology (MoST, China), National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.85 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9U9V

This is version 1.0 of the entry. See complete history.

Literature

beta2-adrenergic receptor in complex with methamphetamine

Shan, W.

To be published.

Macromolecule Content

  • Total Structure Weight: 156.63 kDa
  • Atom Count: 8,275
  • Modeled Residue Count: 1,044
  • Deposited Residue Count: 1,391
  • Unique protein chains: 5

Macromolecules

Find similar proteins by:
|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

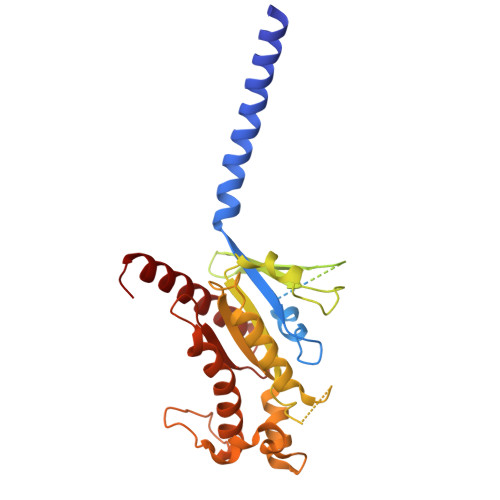

Guanine nucleotide-binding protein G(s) subunit alpha isoforms short394Homo sapiensMutation(s): 0
Gene Names: GNAS, GNAS1, GSP
EC: 3.6.5
Membrane Entity: Yes
UniProt & NIH Common Fund Data Resources
Find proteins for P63092 (Homo sapiens)
Explore P63092
Go to UniProtKB:  P63092
PHAROS:  P63092
GTEx:  ENSG00000087460
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP63092
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

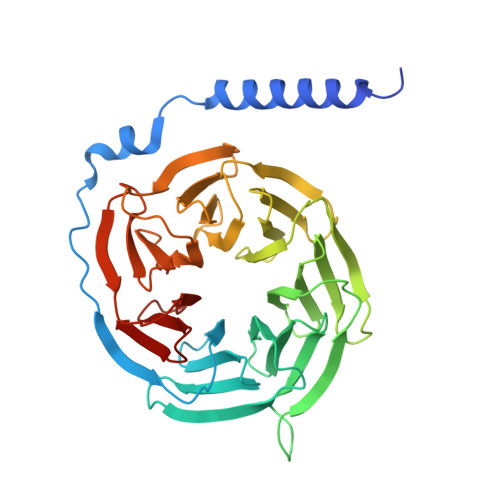

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1351Homo sapiensMutation(s): 0
Gene Names: GNB1
UniProt & NIH Common Fund Data Resources
Find proteins for P62873 (Homo sapiens)
Explore P62873
Go to UniProtKB:  P62873
PHAROS:  P62873
GTEx:  ENSG00000078369
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62873
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage
Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-271Homo sapiensMutation(s): 0
Gene Names: GNG2
Membrane Entity: Yes
UniProt & NIH Common Fund Data Resources
Find proteins for P59768 (Homo sapiens)
Explore P59768
Go to UniProtKB:  P59768
PHAROS:  P59768
GTEx:  ENSG00000186469
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP59768
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage
Nb35 nanobodyD [auth N]162Homo sapiensMutation(s): 0
Find similar proteins by:
|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage

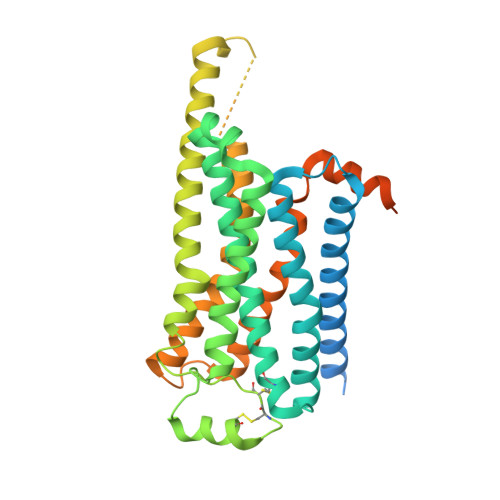

Beta-2 adrenergic receptorE [auth R]413Homo sapiensMutation(s): 0
Gene Names: ADRB2, ADRB2R, B2AR
Membrane Entity: Yes
UniProt & NIH Common Fund Data Resources
Find proteins for P07550 (Homo sapiens)
Explore P07550
Go to UniProtKB:  P07550
PHAROS:  P07550
GTEx:  ENSG00000169252
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP07550
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
B40
(Subject of Investigation/LOI)

Query on B40


Download:Ideal Coordinates CCD File
F [auth R](2S)-N-methyl-1-phenylpropan-2-amine
C10 H15 N
MYWUZJCMWCOHBA-VIFPVBQESA-N

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.85 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.19.2_4158

Structure Validation

View Full Validation Report



View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Funding OrganizationLocationGrant Number
Ministry of Science and Technology (MoST, China)China2023YFA0916300
Ministry of Science and Technology (MoST, China)China2020YFA0908500
National Natural Science Foundation of China (NSFC)China32271249
National Natural Science Foundation of China (NSFC)China31971127

Revision History  (Full details and data files)

  • Version 1.0: 2025-09-03
    Type: Initial release
