9U5A | pdb_00009u5a

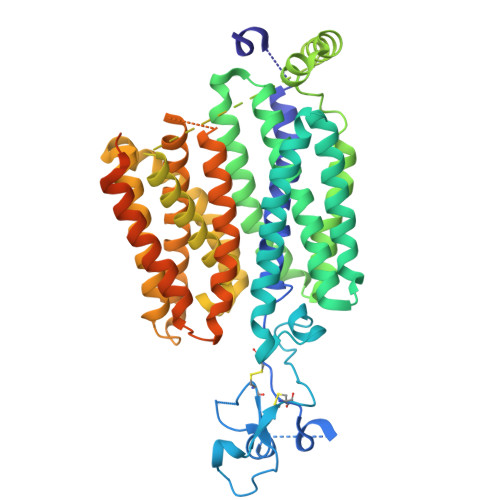

Cryo-EM structure of human OAT4 in complex with DHEAS

PDB DOI: https://doi.org/10.2210/pdb9U5A/pdb
EM Map EMD-63867: EMDB EMDataResource

Classification: MEMBRANE PROTEIN
Organism(s): Homo sapiens
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2025-03-21 Released: 2025-06-18
Deposition Author(s): Zhang, W., Chu, Y., Zhang, Y.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.98 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9U5A

This is version 1.0 of the entry. See complete history.

Literature

Cryo-EM structure of human OAT4 in complex with DHEAS

Zhang, W., Chu, Y., Zhang, Y.

To be published.

Macromolecule Content

Total Structure Weight: 63.14 kDa
Atom Count: 3,268
Modeled Residue Count: 432
Deposited Residue Count: 572
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Solute carrier family 22 member 11	A	572	Homo sapiens	Mutation(s): 0 Gene Names: SLC22A11, OAT4
UniProt & NIH Common Fund Data Resources
Find proteins for Q9NSA0 (Homo sapiens) Explore Q9NSA0 Go to UniProtKB: Q9NSA0
PHAROS: Q9NSA0 GTEx: ENSG00000168065
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9NSA0
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ZWY (Subject of Investigation/LOI) Query on ZWY Download:Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	17-oxoandrost-5-en-3beta-yl hydrogen sulfate C₁₉ H₂₈ O₅ S CZWCKYRVOZZJNM-USOAJAOKSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.98 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-06-18

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History (Full details and data files)

Version 1.0: 2025-06-18
Type: Initial release
