9TAD | pdb_00009tad

mCoral: a mCherry variant with cysteine replacing methionine in the chromophore


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.04 Å
  • R-Value Free:
    0.210 (Depositor), 0.212 (DCC)
  • R-Value Work:
    0.166 (Depositor), 0.174 (DCC)
  • R-Value Observed:
    0.170 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9TAD

This is version 1.1 of the entry. See complete history

Literature

Structure, Function and Dynamics of mCoral, a pH-Responsive Engineered Variant of the mCherry Fluorescent Protein with Improved Hydrogen Peroxide Tolerance.

Zitti, A.Aksakal, O.Vitsupakorn, D.Rizkallah, P.J.Mikolajek, H.Platts, J.A.Menzies, G.E.Jones, D.D.

(2025) Int J Mol Sci 27

  • DOI: https://doi.org/10.3390/ijms27010154
  • Primary Citation Related Structures:
    9TAD

  • PubMed Abstract:

    The red fluorescent protein mCherry is one of the most widely used fluorescent proteins in biology. Here, we have changed the chromophore chemistry by converting the thioether group of M66 to a thiol group through mutation to cysteine. The new variant, termed mCoral (due to its orange fluorescence hue), has similar brightness to mCherry but improved resistance to hydrogen peroxide. The variant is also responsive to pH with low and high pKa forms that have distinct spectral properties, which DFT analysis suggests is due to protonation state changes in the newly introduced thiol group, as well as the phenol group. The structure of mCoral reveals that the M66C mutation creates a space within the β-barrel structure that is filled by a water molecule, which makes new polar interactions, including the backbone carbonyl group of F65. Molecular dynamics simulations suggest that this additional water molecule, together with local solvation around the chromophore, could play a role in promoting planarity of the full conjugated system comprising the chromophore. The mCoral chromophore makes slightly more H-bonds with water than mCherry. The main water exit point for mCherry is also narrower in mCoral, providing a potential explanation for increased resistance to hydrogen peroxide. Overall, a small structural change to mCherry has resulted in a new fluorescent protein with potentially useful characteristics and an insight into the role of dynamics and water in defining the structure-function relationship in red fluorescent proteins.


  • Organizational Affiliation
    • Molecular Bioscience Division, School of Biosciences, Cardiff University, Sir Martin Evans Building, Cardiff CF10 3AX, UK.

Macromolecule Content

  • Total Structure Weight: 25.04 kDa
  • Atom Count: 1,853
  • Modeled Residue Count: 218
  • Deposited Residue Count: 218
  • Unique protein chains: 1

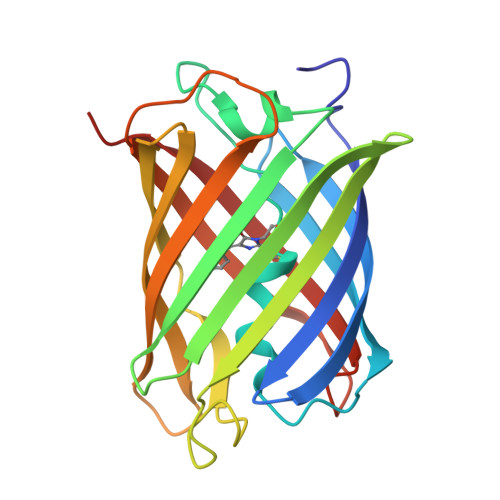

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
mCherry Fluorescent protein218Discosoma sp.Mutation(s): 9
UniProt
Find proteins for D0VWW2 (Discosoma sp.)
Explore D0VWW2
Go to UniProtKB:  D0VWW2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupD0VWW2
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
SO4

Query on SO4



Download:Ideal Coordinates CCD File
B [auth A]SULFATE ION
O4 S
QAOWNCQODCNURD-UHFFFAOYSA-L
Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
GYC
Query on GYC
A
L-PEPTIDE LINKINGC14 H15 N3 O4 SCYS, TYR, GLY

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.04 Å
  • R-Value Free:  0.210 (Depositor), 0.212 (DCC)
  • R-Value Work:  0.166 (Depositor), 0.174 (DCC)
  • R-Value Observed: 0.170 (Depositor)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 48.76α = 90
b = 43.182β = 114.91
c = 63.095γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
Aimlessdata scaling
XDSdata reduction
PHASERphasing

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Engineering and Physical Sciences Research CouncilUnited Kingdom--

Revision History  (Full details and data files)

  • Version 1.0: 2025-12-31
    Type: Initial release
  • Version 1.1: 2026-01-21
    Changes: Database references
