9S2D | pdb_00009s2d

KHNYN exPIN nuclease


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.35 Å
  • R-Value Free:
    0.278 (Depositor), 0.276 (DCC)
  • R-Value Work:
    0.198 (Depositor), 0.197 (DCC)
  • R-Value Observed:
    0.202 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

KHNYN is a manganese-dependent endoribonuclease required for ZAP-mediated antiviral restriction.

Youle, R.L.Lista, M.J.Brudenell, E.L.Thompson, B.Bouton, C.Morris, E.R.Neil, S.J.D.Swanson, C.M.Taylor, I.A.

(2025) Nucleic Acids Res 53

  • DOI: https://doi.org/10.1093/nar/gkaf1360
  • Primary Citation of Related Structures:
    9S2D

  • PubMed Abstract:

    Zinc finger antiviral protein (ZAP) is a cytoplasmic protein central to host innate immunity to viral infection. ZAP has no intrinsic catalytic activity but inhibits viral replication by binding to CpG dinucleotides in cytoplasmic viral RNA and recruiting other factors to inhibit protein synthesis and target the RNA for degradation. KHNYN is a ZAP-binding protein required for ZAP-restriction of CpG-rich viral genomes. It contains an extended diKH, PIN nuclease, and CUElike domain, each of which are required for ZAP restriction of viral replication. Here, we report a structural, enzymological, and virological study of KHNYN's essential PIN nuclease domain. Our crystal structure reveals an extended PIN domain (ex-PIN) containing a conserved N-terminal arm region required for domain stability and an active site tetra-Asp motif, which are both required for antiviral activity. Unlike the weak activity recently reported for the PIN domain, we demonstrate that the KHNYN ex-PIN domain is a highly active Mn2+-dependent single-stranded RNA endonuclease that cleaves with a preference for ApC, ApA, and UpA dinucleotides. These observations extend our view of KHNYN antiviral activity and suggest an unforeseen role for activation by manganese ions in the ZAP-KHNYN antiviral response.


  • Organizational Affiliation
    • The Francis Crick Institute, Macromolecular Structure Laboratory, 1 Midland Road, London NW1 1AT, UK.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

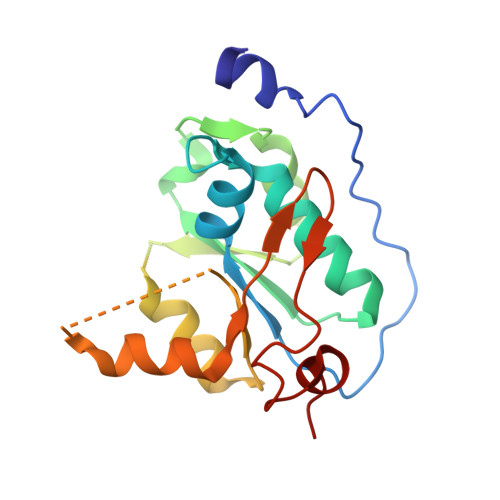

Protein KHNYN
A, B
184Homo sapiensMutation(s): 0
Gene Names: KHNYNKIAA0323
UniProt & NIH Common Fund Data Resources
Find proteins for O15037 (Homo sapiens)
Explore O15037
Go to UniProtKB:  O15037
PHAROS:  O15037
GTEx:  ENSG00000100441
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO15037
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.35 Å
  • R-Value Free:  0.278 (Depositor), 0.276 (DCC)
  • R-Value Work:  0.198 (Depositor), 0.197 (DCC)
  • R-Value Observed: 0.202 (Depositor)
Space Group: P 41
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 54.718α = 90
b = 54.718β = 90
c = 110.851γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
xia2data reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Medical Research Council (MRC, United Kingdom)United KingdomCC2029
Wellcome TrustUnited KingdomCC2029
Cancer Research UKUnited KingdomCC2029
Medical Research Council (MRC, United Kingdom)United KingdomMR/S000844/1
Medical Research Council (MRC, United Kingdom)United KingdomMR/W018519/1

Revision History  (Full details and data files)

  • Version 1.0: 2025-12-31
    Type: Initial release
