9RZC | pdb_00009rzc

State 3 MAP 1 SETD2 bound to distal H3 of upstream nucleosome


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.66 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Molecular mechanism of co-transcriptional H3K36 methylation by SETD2.

Walshe, J.L.Ochmann, M.Neef, U.Dybkov, O.Dienemann, C.Oberthur, C.Zheenbekova, A.Urlaub, H.Cramer, P.

(2025) Nat Commun 16: 9565-9565

  • DOI: https://doi.org/10.1038/s41467-025-65439-y
  • Primary Citation of Related Structures:
    9GW2, 9RTN, 9RZC, 9RZD, 9S0U, 9S3G

  • PubMed Abstract:

    H3K36me3 is a hallmark of actively and recently transcribed genes and contributes to cellular memory and identity. The deposition of H3K36me3 occurs co-transcriptionally when the methyltransferase SETD2 associates with RNA polymerase II. Here we present three cryo-EM structures of SETD2 bound to RNA polymerase II elongation complexes at different states of nucleosome passage. Together with functional probing, our results suggest a 3-step mechanism of transcription-coupled H3K36me3 deposition. First, binding to the elongation factor SPT6 tethers the catalytic SET domain in proximity to the upstream DNA. Second, RNA polymerase II nucleosome passage leads to the transfer of a hexasome from downstream to upstream, poised for methylation. Finally, continued transcription leads to upstream nucleosome reassembly, partial dissociation of the histone chaperone FACT and sequential methylation of both H3 tails, completing H3K36me3 deposition of an upstream nucleosome after RNA polymerase II passage.


  • Organizational Affiliation
    • Department of Molecular Biology, Max Planck Institute for Multidisciplinary Sciences, Göttingen, Germany. james.walshe@mpinat.mpg.de.

Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

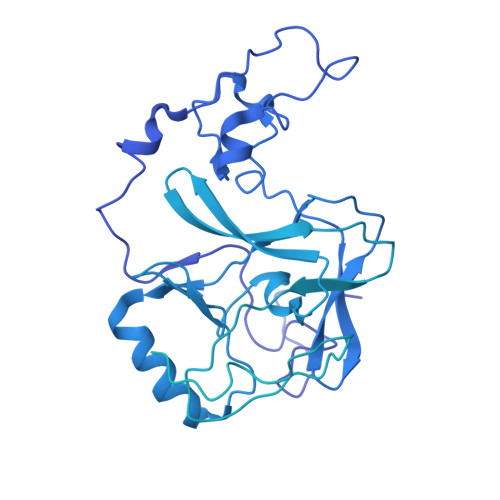

Histone-lysine N-methyltransferase SETD2B [auth O]1,133Homo sapiensMutation(s): 1
Gene Names: SETD2HIF1HYPBKIAA1732KMT3ASET2HSPC069
EC: 2.1.1.359 (PDB Primary Data), 2.1.1 (PDB Primary Data)
UniProt & NIH Common Fund Data Resources
Find proteins for Q9BYW2 (Homo sapiens)
Explore Q9BYW2
Go to UniProtKB:  Q9BYW2
PHAROS:  Q9BYW2
GTEx:  ENSG00000181555
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9BYW2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage

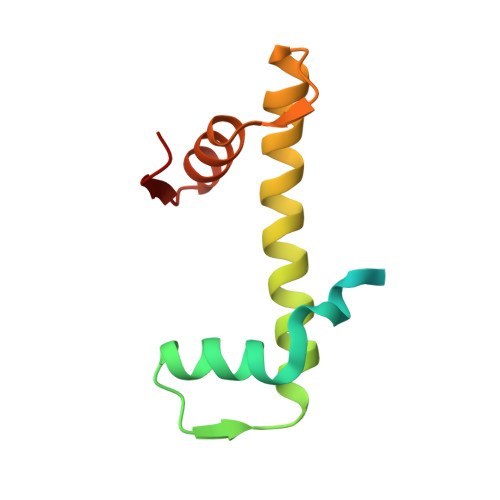

Histone H3.2D [auth a],
L [auth e]
136Homo sapiensMutation(s): 2
Gene Names: H3C15HIST2H3AH3C14H3F2H3FMHIST2H3CH3C13HIST2H3D
UniProt & NIH Common Fund Data Resources
Find proteins for Q71DI3 (Homo sapiens)
Explore Q71DI3
Go to UniProtKB:  Q71DI3
PHAROS:  Q71DI3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ71DI3
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
Histone H4E [auth b],
H [auth f]
103Homo sapiensMutation(s): 0
Gene Names:
UniProt & NIH Common Fund Data Resources
Find proteins for P62805 (Homo sapiens)
Explore P62805
Go to UniProtKB:  P62805
PHAROS:  P62805
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62805
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage
Histone H2A type 1-B/EF [auth c],
I [auth g]
135Homo sapiensMutation(s): 0
Gene Names: H2AC4H2AFMHIST1H2ABH2AC8H2AFAHIST1H2AE
UniProt & NIH Common Fund Data Resources
Find proteins for P04908 (Homo sapiens)
Explore P04908
Go to UniProtKB:  P04908
PHAROS:  P04908
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP04908
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage
Histone H2B type 1-KG [auth d],
J [auth h]
126Homo sapiensMutation(s): 0
Gene Names: HIST1H2BKH2BFTHIRIP1
UniProt & NIH Common Fund Data Resources
Find proteins for O60814 (Homo sapiens)
Explore O60814
Go to UniProtKB:  O60814
PHAROS:  O60814
GTEx:  ENSG00000197903
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO60814
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage

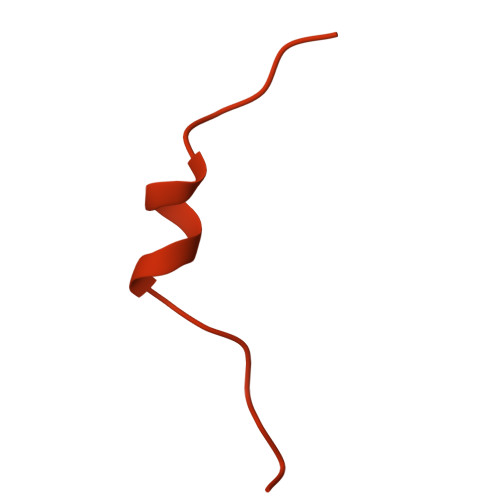

FACT complex subunit SPT16K [auth k]1,049Homo sapiensMutation(s): 0
Gene Names: SUPT16HFACT140FACTP140
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y5B9 (Homo sapiens)
Explore Q9Y5B9
Go to UniProtKB:  Q9Y5B9
PHAROS:  Q9Y5B9
GTEx:  ENSG00000092201
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9Y5B9
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains LengthOrganismImage

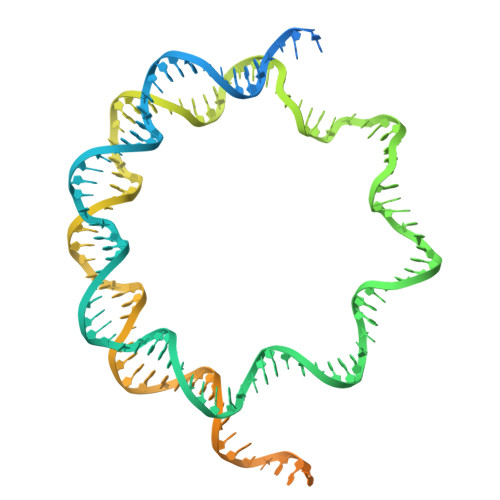

Non-template DNAA [auth N]197synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains LengthOrganismImage
Template DNAC [auth T]197synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.66 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX
RECONSTRUCTIONRELION

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Max Planck SocietyGermany--

Revision History  (Full details and data files)

  • Version 1.0: 2025-09-24
    Type: Initial release
  • Version 1.1: 2025-11-12
    Changes: Data collection, Database references
