9RUP | pdb_00009rup

Cryo-EM structure of TCRpub/pMHC dimer

PDB DOI: https://doi.org/10.2210/pdb9RUP/pdb
EM Map EMD-54273: EMDB EMDataResource

Classification: IMMUNE SYSTEM
Organism(s): Homo sapiens
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2025-07-04 Released: 2025-08-13
Deposition Author(s): Akil, C., Zhu, Y., Hardenbrook, N., Zhang, P.
Funding Organization(s): Chinese Academy of Sciences, Wellcome Trust

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 4.11 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9RUP

This is version 1.0 of the entry. See complete history.

Literature

Cryo-EM structure of TCRpub/pMHC dimer

Akil, C., Zhu, Y., Hardenbrook, N., Zhang, P.

To be published.

Macromolecule Content

Total Structure Weight: 190.37 kDa
Atom Count: 12,807
Modeled Residue Count: 1,596
Deposited Residue Count: 1,670
Unique protein chains: 5

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
T cell receptor, alpha chain	A, F [auth a]	209	Homo sapiens	Mutation(s): 0

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
T cell receptor, beta chain	B, G [auth b]	242	Homo sapiens	Mutation(s): 0

Find similar proteins by:

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

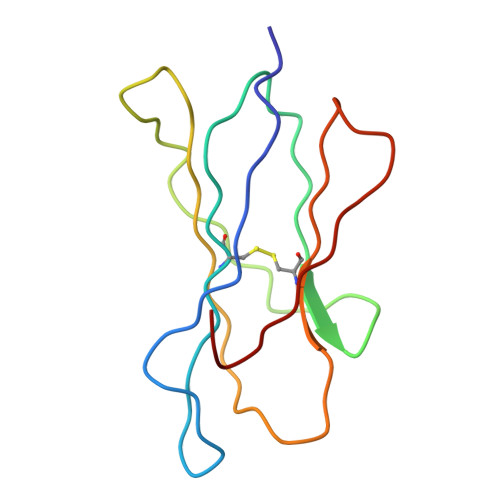

Beta-2-microglobulin	C [auth E], H [auth e]	99	Homo sapiens	Mutation(s): 0 Gene Names: B2M, CDABP0092, HDCMA22P
UniProt & NIH Common Fund Data Resources
Find proteins for P61769 (Homo sapiens) Explore P61769 Go to UniProtKB: P61769
PHAROS: P61769 GTEx: ENSG00000166710
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P61769
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

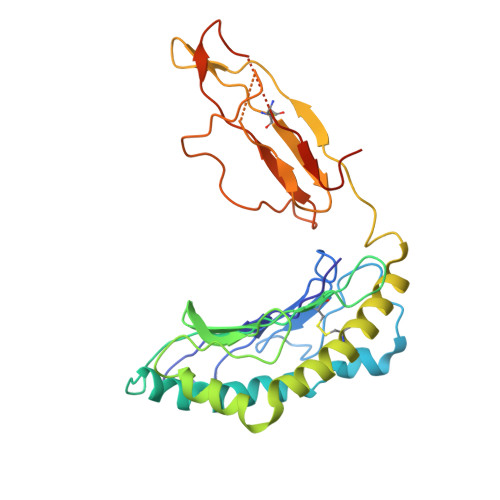

MHC class I antigen	D [auth C], I [auth c]	276	Homo sapiens	Mutation(s): 0 Gene Names: HLA-A
UniProt
Find proteins for A0A0D6K978 (Homo sapiens) Explore A0A0D6K978 Go to UniProtKB: A0A0D6K978
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A0D6K978
Sequence Annotations Expand
Reference Sequence

Find similar proteins by: Sequence | 3D Structure

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image
ORF3a_207-215 epitope	E [auth D], J [auth d]	9	Homo sapiens	Mutation(s): 0

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 4.11 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-08-13

Deposition Author(s):

Hardenbrook, N.

Funding Organization	Location	Grant Number
Chinese Academy of Sciences	China	2024-I2M-2-001-1
Wellcome Trust	United Kingdom	203141/Z/16/Z

Revision History (Full details and data files)

Version 1.0: 2025-08-13
Type: Initial release
