9RTN | pdb_00009rtn

State 2 MAP 2 SPT6 with SETD2


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.82 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Molecular mechanism of co-transcriptional H3K36 methylation by SETD2.

Walshe, J.L.Ochmann, M.Neef, U.Dybkov, O.Dienemann, C.Oberthur, C.Zheenbekova, A.Urlaub, H.Cramer, P.

(2025) Nat Commun 16: 9565-9565

  • DOI: https://doi.org/10.1038/s41467-025-65439-y
  • Primary Citation of Related Structures:
    9GW2, 9RTN, 9RZC, 9RZD, 9S0U, 9S3G

  • PubMed Abstract:

    H3K36me3 is a hallmark of actively and recently transcribed genes and contributes to cellular memory and identity. The deposition of H3K36me3 occurs co-transcriptionally when the methyltransferase SETD2 associates with RNA polymerase II. Here we present three cryo-EM structures of SETD2 bound to RNA polymerase II elongation complexes at different states of nucleosome passage. Together with functional probing, our results suggest a 3-step mechanism of transcription-coupled H3K36me3 deposition. First, binding to the elongation factor SPT6 tethers the catalytic SET domain in proximity to the upstream DNA. Second, RNA polymerase II nucleosome passage leads to the transfer of a hexasome from downstream to upstream, poised for methylation. Finally, continued transcription leads to upstream nucleosome reassembly, partial dissociation of the histone chaperone FACT and sequential methylation of both H3 tails, completing H3K36me3 deposition of an upstream nucleosome after RNA polymerase II passage.


  • Organizational Affiliation
    • Department of Molecular Biology, Max Planck Institute for Multidisciplinary Sciences, Göttingen, Germany. james.walshe@mpinat.mpg.de.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

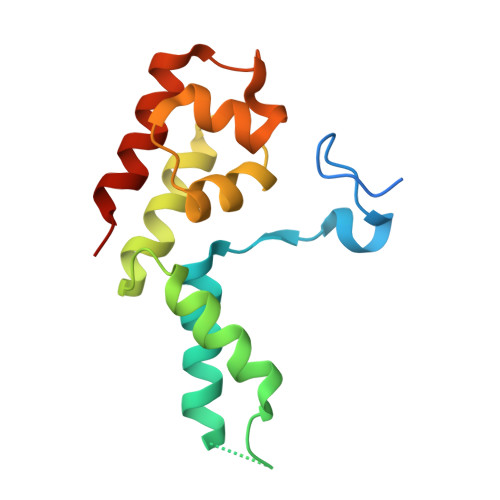

RNA polymerase II subunit DA [auth D]142Sus scrofaMutation(s): 0
UniProt
Find proteins for A0A287ADR4 (Sus scrofa)
Explore A0A287ADR4
Go to UniProtKB:  A0A287ADR4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A287ADR4
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

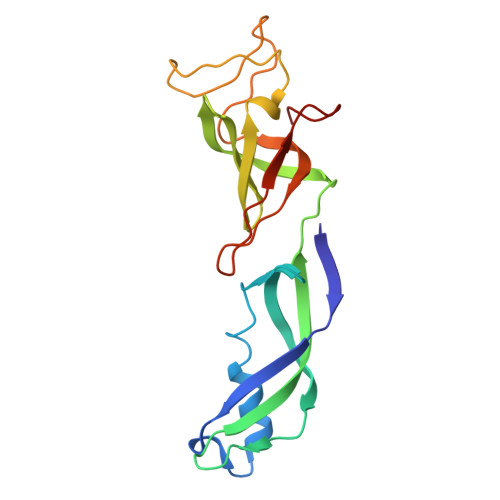

DNA-directed RNA polymerase II subunit RPB7B [auth G]172Sus scrofaMutation(s): 0
UniProt
Find proteins for A0A4X1VKG7 (Sus scrofa)
Explore A0A4X1VKG7
Go to UniProtKB:  A0A4X1VKG7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A4X1VKG7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
Histone-lysine N-methyltransferase SETD2C [auth O]1,133Homo sapiensMutation(s): 0
Gene Names: SETD2HIF1HYPBKIAA1732KMT3ASET2HSPC069
EC: 2.1.1.359 (PDB Primary Data), 2.1.1 (PDB Primary Data)
UniProt & NIH Common Fund Data Resources
Find proteins for Q9BYW2 (Homo sapiens)
Explore Q9BYW2
Go to UniProtKB:  Q9BYW2
PHAROS:  Q9BYW2
GTEx:  ENSG00000181555
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9BYW2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage

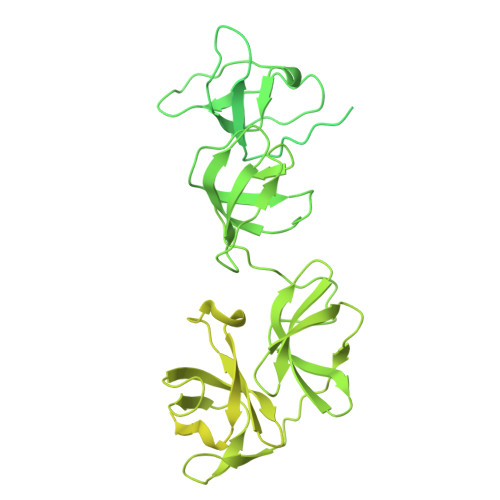

Transcription elongation factor SPT5D [auth Z]1,087Homo sapiensMutation(s): 0
Gene Names: SUPT5HSPT5SPT5H
UniProt & NIH Common Fund Data Resources
Find proteins for O00267 (Homo sapiens)
Explore O00267
Go to UniProtKB:  O00267
PHAROS:  O00267
GTEx:  ENSG00000196235
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO00267
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
Transcription elongation factor SPT6E [auth M]1,729Homo sapiensMutation(s): 0
Gene Names: SUPT6HKIAA0162SPT6H
UniProt & NIH Common Fund Data Resources
Find proteins for Q7KZ85 (Homo sapiens)
Explore Q7KZ85
Go to UniProtKB:  Q7KZ85
PHAROS:  Q7KZ85
GTEx:  ENSG00000109111
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ7KZ85
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.82 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX
RECONSTRUCTIONRELION

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Max Planck SocietyGermany--

Revision History  (Full details and data files)

  • Version 1.0: 2025-09-24
    Type: Initial release
  • Version 1.1: 2025-11-12
    Changes: Data collection, Database references
