9RJ0 | pdb_00009rj0

SARS-CoV-2 with a bound inhibitor

• PDB DOI: https://doi.org/10.2210/pdb9RJ0/pdb

• Classification: HYDROLASE
• Organism(s): Severe acute respiratory syndrome coronavirus 2
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2025-06-12 Released: 2025-07-09
• Deposition Author(s): Mac Sweeney, A.
• Funding Organization(s): Not funded

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.71 Å
• R-Value Free:
  0.242 (Depositor), 0.242 (DCC)
• R-Value Work:
  0.202 (Depositor), 0.202 (DCC)

Starting Model: experimental

Literature

SARS-CoV-2 with a bound inhibitor

Mac Sweeney, A.

To be published.

Biological Assembly 1

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Homo 2-mer - A2

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly Evidence: gel filtration

Macromolecule Content

• Total Structure Weight: 68.36 kDa
• Atom Count: 5,030
• Modeled Residue Count: 608
• Deposited Residue Count: 612
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

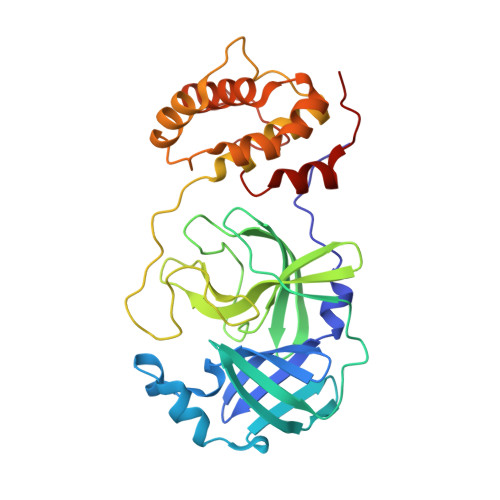

3C-like proteinase nsp5	A, B	306	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 0  EC: 3.4.22.69
UniProt
Find proteins for P0DTC1 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTC1  Go to UniProtKB:  P0DTC1

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
A1JGO (Subject of Investigation/LOI)	C [auth A], D [auth B]	1-(benzimidazol-1-yl)-3-[(4~{S})-6-fluoranyl-3,4-dihydro-2~{H}-thiochromen-4-yl]urea C17 H15 F N4 O S UYXIALZFEONGAS-ZDUSSCGKSA-N
NA	E [auth B]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.71 Å
• R-Value Free:  0.242 (Depositor), 0.242 (DCC)
• R-Value Work:  0.202 (Depositor), 0.202 (DCC)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 68.05	α = 90
b = 100.75	β = 90
c = 104.53	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
autoPROC	data reduction
autoPROC	data scaling
PHASER	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-07-09
Deposition Author(s): Mac Sweeney, A.

---

Funding Organization	Location	Grant Number
Not funded		--

Revision History

• Version 1.0: 2025-07-09
  Type: Initial release
