9Q5B | pdb_00009q5b

Crystal Structure of Human P38 alpha MAPK in Complex with MW01-21-114SRM

• PDB DOI: https://doi.org/10.2210/pdb9Q5B/pdb

• Classification: TRANSFERASE
• Organism(s): Homo sapiens
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): No


• Deposited: 2025-08-20 Released: 2025-09-17
• Deposition Author(s): Minasov, G., Brunzelle, J.S., Roy, S.M., Watterson, D.M., Shuvalova, L.
• Funding Organization(s): National Institutes of Health/National Institute on Aging (NIH/NIA)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.05 Å
• R-Value Free:
  0.236 (Depositor), 0.238 (DCC)
• R-Value Work:
  0.191 (Depositor), 0.202 (DCC)
• R-Value Observed:
  0.193 (Depositor)

Starting Model: experimental

Literature

Crystal Structure of Human P38 alpha MAPK in Complex with MW01-21-114SRM

Minasov, G., Brunzelle, J.S., Roy, S.M., Watterson, D.M., Shuvalova, L.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors.

Macromolecule Content

• Total Structure Weight: 42.18 kDa
• Atom Count: 2,929
• Modeled Residue Count: 333
• Deposited Residue Count: 362
• Unique protein chains: 1

Macromolecules

Entity ID: 1

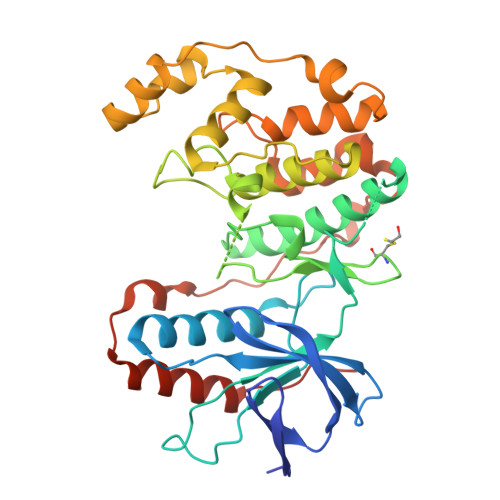

Molecule	Chains	Sequence Length	Organism	Details	Image
Mitogen-activated protein kinase 14	A	362	Homo sapiens	Mutation(s): 0  Gene Names: MAPK14, CSBP, CSBP1, CSBP2, CSPB1, MXI2, SAPK2A EC: 2.7.11.24
UniProt & NIH Common Fund Data Resources
Find proteins for Q16539 (Homo sapiens) Explore Q16539  Go to UniProtKB:  Q16539
PHAROS:  Q16539 GTEx:  ENSG00000112062

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
A1CRZ (Subject of Investigation/LOI)	C [auth A]	(3P)-6-chloro-3-(naphthalen-2-yl)-4-(pyridin-4-yl)pyridazine C19 H12 Cl N3 XWQSPVNHITVMSG-UHFFFAOYSA-N
GG5 (Subject of Investigation/LOI)	B [auth A]	4-[3-(4-FLUOROPHENYL)-1H-PYRAZOL-4-YL]PYRIDINE C14 H10 F N3 BILJSHVAAVZERY-UHFFFAOYSA-N
ZN	D [auth A]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N

Modified Residues  1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
CME	A	L-PEPTIDE LINKING	C5 H11 N O3 S2		CYS

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.05 Å
• R-Value Free:  0.236 (Depositor), 0.238 (DCC)
• R-Value Work:  0.191 (Depositor), 0.202 (DCC)
• R-Value Observed: 0.193 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 66.074	α = 90
b = 74.8	β = 90
c = 78.662	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
PDB_EXTRACT	data extraction
HKL-3000	data reduction
HKL-3000	data scaling
REFMAC	phasing

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2025-09-17
Deposition Author(s): Minasov, G., Brunzelle, J.S., Roy, S.M., Watterson, D.M., Shuvalova, L.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute on Aging (NIH/NIA)	United States	AG066722

Revision History

• Version 1.0: 2025-09-17
  Type: Initial release
