9PHL | pdb_00009phl

[A4J-A] Asymmetric tensegrity triangle containing a semi-junction formed via in crystallo hybridization

• PDB DOI: https://doi.org/10.2210/pdb9PHL/pdb

• Classification: DNA
• Organism(s): synthetic construct
• Mutation(s): No


• Deposited: 2025-07-09 Released: 2025-12-03
• Deposition Author(s): Horvath, A., Wang, M., Woloszyn, K., Vecchioni, S., Ohayon, Y.P., Sha, R.
• Funding Organization(s): Office of Naval Research (ONR), Department of Energy (DOE, United States), National Science Foundation (NSF, United States)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 6.25 Å
• R-Value Free:
  0.261 (Depositor), 0.272 (DCC)
• R-Value Work:
  0.236 (Depositor), 0.235 (DCC)
• R-Value Observed:
  0.237 (Depositor)

Starting Model: experimental

Literature

Single Stranded Regions in Tensegrity Triangles

Wang, M., Horvath, A., Woloszyn, K., Vecchioni, S., Ohayon, Y.P., Sha, R.

To be published.

Biological Assembly 1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: native gel electrophoresis

Macromolecule Content

• Total Structure Weight: 38.57 kDa
• Atom Count: 2,562
• Modeled Residue Count: 126
• Deposited Residue Count: 126
• Unique nucleic acid chains: 8

Macromolecules

Entity ID: 1
Molecule	Chains	Length	Organism	Image

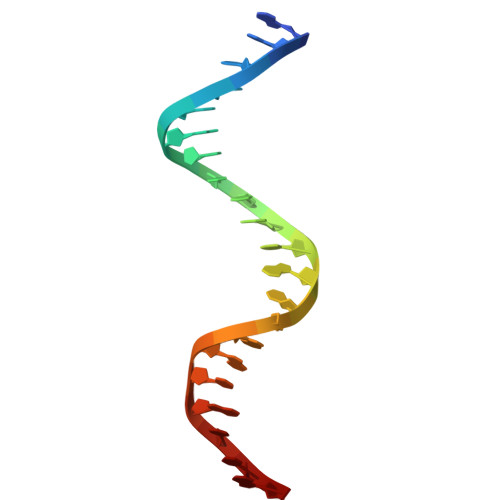

DNA (5'-D(*GP*AP*GP*CP*GP*AP*CP*CP*TP*GP*TP*AP*CP*GP*GP*AP*CP*AP*TP*CP*A)-3')	A	21	synthetic construct

Entity ID: 2
Molecule	Chains	Length	Organism	Image
DNA (5'-D(*TP*GP*CP*GP*TP*AP*GP*TP*GP*GP*TP*CP*GP*C)-3')	B [auth E]	14	synthetic construct

Entity ID: 3
Molecule	Chains	Length	Organism	Image

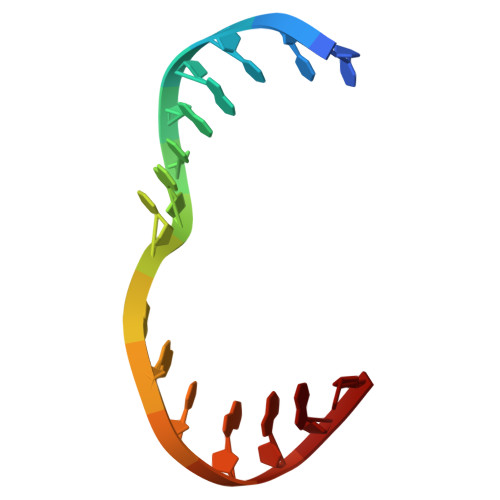

DNA (5'-D(*TP*CP*TP*GP*AP*TP*GP*TP*GP*GP*TP*AP*GP*G)-3')	C [auth D]	15	synthetic construct

Entity ID: 4
Molecule	Chains	Length	Organism	Image

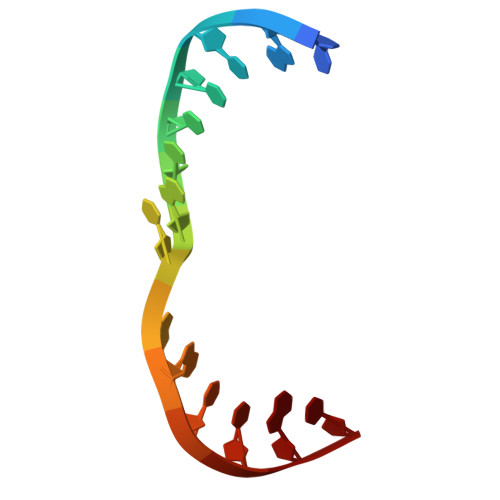

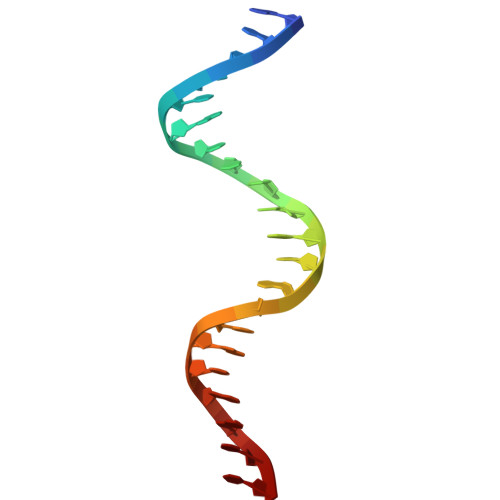

DNA (5'-D(*AP*AP*CP*CP*TP*AP*CP*CP*TP*GP*GP*CP*AP*GP*GP*AP*CP*GP*AP*CP*T)-3')	D [auth B]	21	synthetic construct

Entity ID: 5
Molecule	Chains	Length	Organism	Image

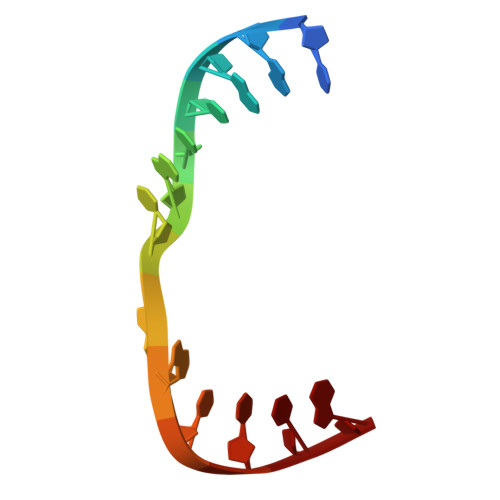

DNA (5'-D(*TP*TP*AP*GP*TP*CP*GP*TP*GP*GP*TP*AP*TP*C)-3')	E [auth F]	13	synthetic construct

Entity ID: 6
Molecule	Chains	Length	Organism	Image

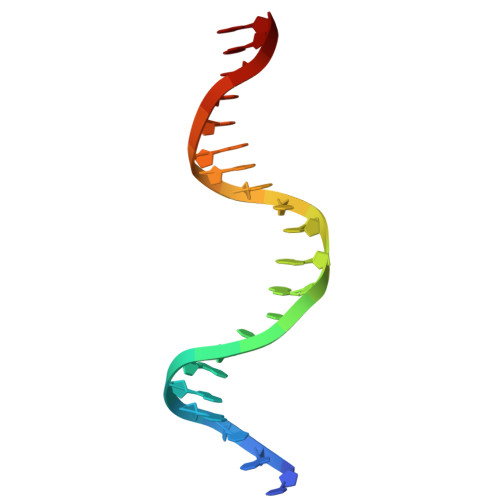

DNA (5'-D(*CP*AP*GP*AP*TP*AP*CP*CP*TP*GP*AP*TP*CP*GP*GP*AP*CP*TP*AP*CP*G)-3')	F [auth C]	21	synthetic construct

Entity ID: 7
Molecule	Chains	Length	Organism	Image

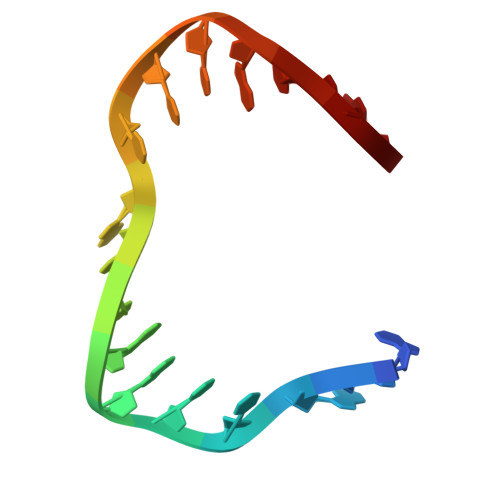

DNA (5'-D(P*AP*CP*AP*CP*CP*GP*AP*TP*CP*AP*CP*CP*TP*GP*CP*CP*AP*CP*CP*GP*T)-3')	G [auth M]	17	synthetic construct

Entity ID: 8
Molecule	Chains	Length	Organism	Image

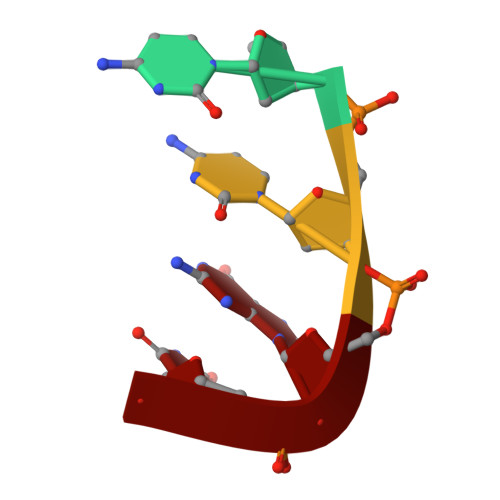

DNA (5'-D(P*AP*CP*AP*CP*CP*GP*AP*TP*CP*AP*CP*CP*TP*GP*CP*CP*AP*CP*CP*GP*T)-3')	H [auth G]	4	synthetic construct

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 6.25 Å
• R-Value Free:  0.261 (Depositor), 0.272 (DCC)
• R-Value Work:  0.236 (Depositor), 0.235 (DCC)
• R-Value Observed: 0.237 (Depositor)

Space Group: P 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 68.736	α = 95.78
b = 68.516	β = 96.659
c = 69.701	γ = 104.323

Software Package:

Software Name	Purpose
PHENIX	refinement
autoPROC	data reduction
STARANISO	data scaling
PHASER	phasing

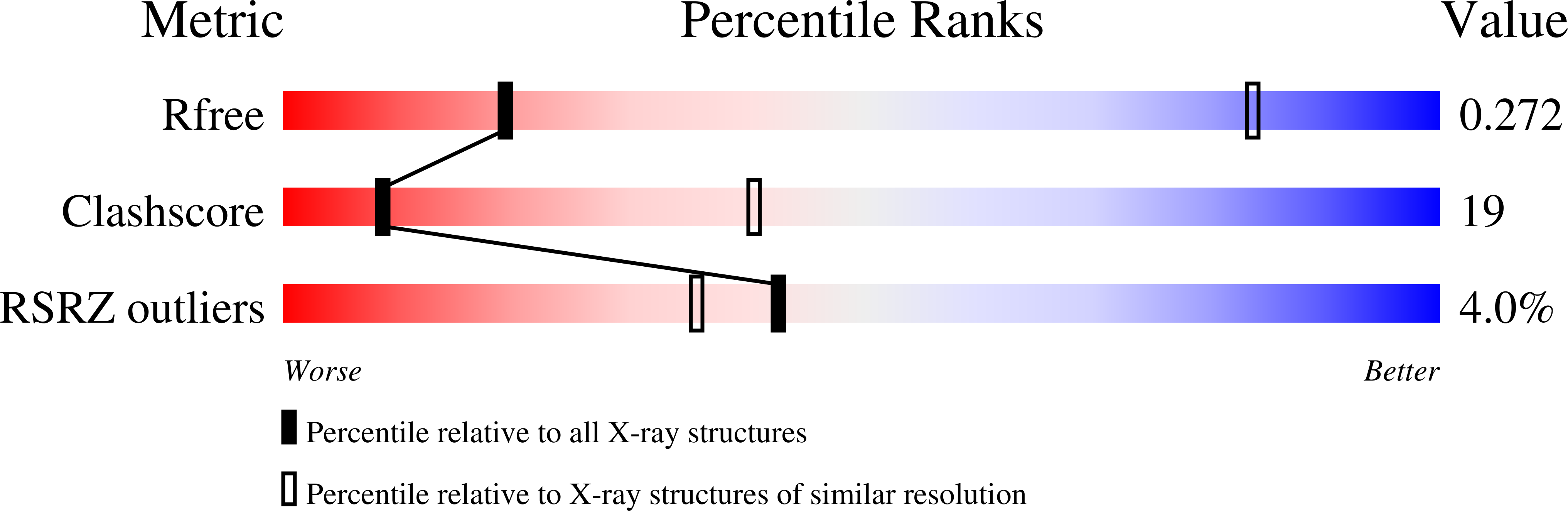

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-12-03
Deposition Author(s): Horvath, A., Wang, M., Woloszyn, K., Vecchioni, S., Ohayon, Y.P., Sha, R.

---

Funding Organization	Location	Grant Number
Office of Naval Research (ONR)	United States	N000141912596
Department of Energy (DOE, United States)	United States	DE-SC0007991
National Science Foundation (NSF, United States)	United States	CCF-2106790
National Science Foundation (NSF, United States)	United States	GCR-2317843

Revision History

• Version 1.0: 2025-12-03
  Type: Initial release
