9OBI | pdb_00009obi

Room Temperature X-Ray Structure of HIV-1 Protease in Complex with Inhibitor GRL-075-24A


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.70 Å
  • R-Value Free:
    0.198 (Depositor), 0.225 (DCC)
  • R-Value Work:
    0.168 (Depositor)
  • R-Value Observed:
    0.170 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9OBI

Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history

Literature

Design, synthesis, evaluation and X-ray structural studies of potent HIV-1 protease inhibitors containing substituted oxaspirocyclic carbamates as the P2 ligands.

Ghosh, A.K.Shaktah, R.Ghosh, A.K.Johnson, M.E.Bhandari, D.Amano, M.Aoki, M.Kovalevsky, A.Mitsuya, H.

(2025) Eur J Med Chem 297: 117880-117880

  • DOI: https://doi.org/10.1016/j.ejmech.2025.117880
  • Primary Citation Related Structures:
    9OBI

  • PubMed Abstract:

    We report here the design, synthesis and evaluation of a series of HIV-1 protease inhibitors that incorporate substituted oxaspirocyclic carbamate derivatives to serve as the P2 ligands. Various substituted ligand derivatives were synthesized in a racemic manner, using a tandem Prins/pinacol reaction as the key reaction. This reaction sets the relative stereochemistry of the oxaspirocyclic template in a highly diastereoselective manner. Reaction of the resulting ketone with enantiopure (S)-tert-butyl sulfinamide provided a convenient pathway to resolve the oxaspirocyclic ketone derivatives. The absolute stereochemical identity was determined by X-ray crystallography. The structure-activity studies demonstrate the effect of the stereochemistry of the oxaspirocyclic ring systems as well as the substitution effect on the aromatic ring. Several inhibitors exhibited potent HIV-1 protease inhibitory activity. One of these inhibitors displayed subnanomolar HIV-1 protease affinity and also exhibited potent antiviral activity. A high-resolution X-ray crystal structure of this inhibitor-bound HIV-1 protease show that the oxaspirocyclic P2 ligand forms an unconventional C-H⋯O bond with the backbone carboxyl group of Gly48' and an interesting N-H … π interaction with the aromatic ring in the S2 subsite of HIV-1 protease active site.


  • Organizational Affiliation
    • Department of Chemistry, Purdue University, West Lafayette, IN, 47907, USA; Department of Medicinal Chemistry and Molecular Pharmacology, Purdue University, West Lafayette, IN, 47907, USA. Electronic address: akghosh@purdue.edu.

Macromolecule Content

  • Total Structure Weight: 88.78 kDa
  • Atom Count: 6,817
  • Modeled Residue Count: 792
  • Deposited Residue Count: 792
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure

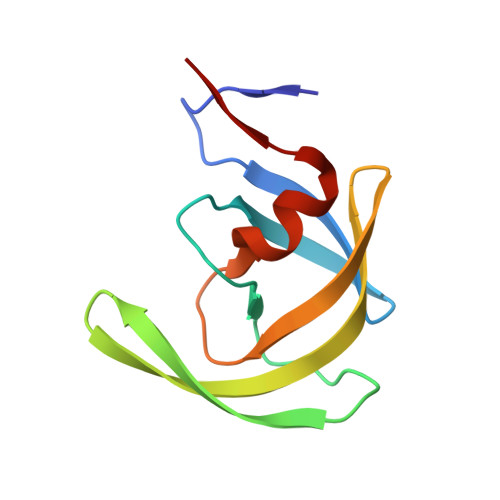

Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Protease
A, B, C, D, E
A, B, C, D, E, F, G, H
99Human immunodeficiency virus 1Mutation(s): 5
Gene Names: pol
EC: 3.4.23.16
UniProt
Find proteins for Q7SSI0 (Human immunodeficiency virus type 1)
Explore Q7SSI0
Go to UniProtKB:  Q7SSI0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ7SSI0
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.70 Å
  • R-Value Free:  0.198 (Depositor), 0.225 (DCC)
  • R-Value Work:  0.168 (Depositor)
  • R-Value Observed: 0.170 (Depositor)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 68.088α = 90
b = 69.487β = 90.06
c = 89.433γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
CrysalisProdata reduction
CrysalisProdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United StatesAI150466

Revision History  (Full details and data files)

  • Version 1.0: 2025-07-23
    Type: Initial release
