9OB0 | pdb_00009ob0

Human PU.1 ETS-Domain (165-270) Bound to d(5'-AATAAGCGIAAGTGGG-3') d(5'-TCCCACTTTCGCTTAT-3') with an IT mismatch

• PDB DOI: https://doi.org/10.2210/pdb9OB0/pdb
• NAKB: 9OB0

• Classification: TRANSCRIPTION/DNA
• Organism(s): synthetic construct, Homo sapiens
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2025-04-21 Released: 2025-06-04
• Deposition Author(s): Terrell, J.R., Poon, G.M.K.
• Funding Organization(s): National Institutes of Health/National Institute of Environmental Health Sciences (NIH/NIEHS), National Institutes of Health/National Heart, Lung, and Blood Institute (NIH/NHLBI), National Science Foundation (NSF, United States)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.79 Å
• R-Value Free:
  0.211 (Depositor), 0.209 (DCC)
• R-Value Work:
  0.166 (Depositor), 0.166 (DCC)
• R-Value Observed:
  0.170 (Depositor)

Starting Model: experimental

Literature

DNA Recognition by ETS Proteins in UV Photodamage

Sivapragasam, S., Terrell, J.R., Poon, G.M.K., Wyrick, J.J.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 22.23 kDa
• Atom Count: 1,587
• Modeled Residue Count: 123
• Deposited Residue Count: 138
• Unique protein chains: 1
• Unique nucleic acid chains: 2

Macromolecules

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

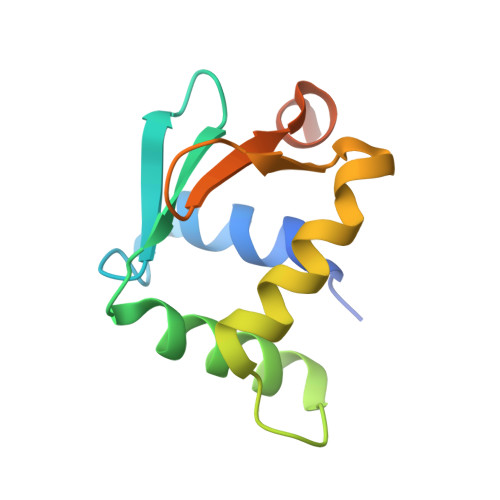

Transcription factor PU.1	C [auth F]	106	Homo sapiens	Mutation(s): 0  Gene Names: SPI1
UniProt & NIH Common Fund Data Resources
Find proteins for P17947 (Homo sapiens) Explore P17947  Go to UniProtKB:  P17947
PHAROS:  P17947 GTEx:  ENSG00000066336

Entity ID: 1
Molecule	Chains	Length	Organism	Image

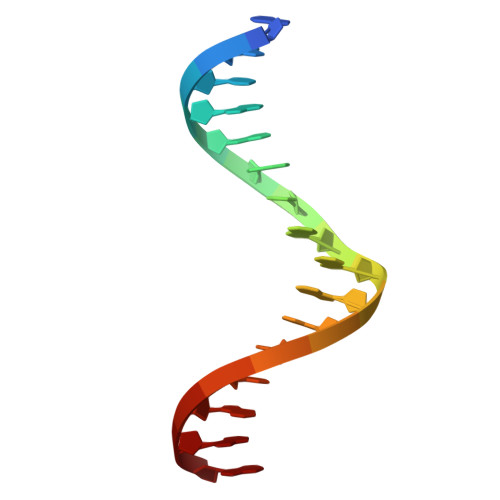

DNA (5'-D(*AP*AP*TP*AP*AP*GP*CP*GP*IP*AP*AP*GP*TP*GP*GP*G)-3')	A [auth C]	16	synthetic construct

Entity ID: 2
Molecule	Chains	Length	Organism	Image

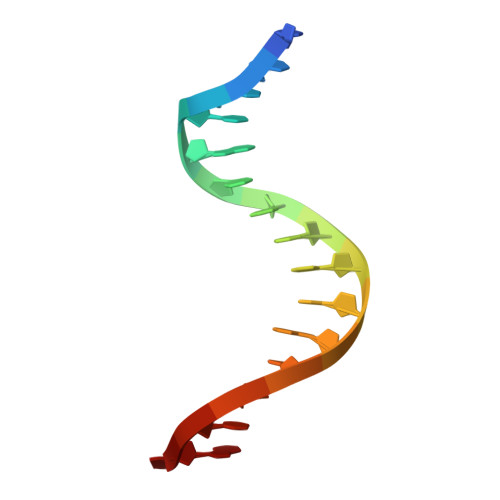

DNA (5'-D(*TP*CP*CP*CP*AP*CP*TP*TP*TP*CP*GP*CP*TP*TP*AP*T)-3')	B [auth D]	16	synthetic construct

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.79 Å
• R-Value Free:  0.211 (Depositor), 0.209 (DCC)
• R-Value Work:  0.166 (Depositor), 0.166 (DCC)
• R-Value Observed: 0.170 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 42.996	α = 90
b = 60.588	β = 116.789
c = 44.909	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
Aimless	data scaling
PHASER	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-06-04
Deposition Author(s): Terrell, J.R., Poon, G.M.K.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of Environmental Health Sciences (NIH/NIEHS)	United States	ES035139
National Institutes of Health/National Heart, Lung, and Blood Institute (NIH/NHLBI)	United States	HL155178
National Science Foundation (NSF, United States)	United States	2028902

Revision History

• Version 1.0: 2025-06-04
  Type: Initial release
