9NO3 | pdb_00009no3

The bifunctional arabinofuranosidase/xylosidase from metagenome of Pseudacanthotermes militaris.


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.05 Å
  • R-Value Free:
    0.238 (Depositor), 0.238 (DCC)
  • R-Value Work:
    0.178 (Depositor), 0.177 (DCC)
  • R-Value Observed:
    0.181 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9NO3

This is version 1.1 of the entry. See complete history

Literature

Structural and functional characterization of a bifunctional GH43 alpha-L-arabinofuranosidase/ beta-xylosidase from the metagenome of Pseudacanthotermes militaris gut.

Gomes, B.M.de Oliveira, G.S.de Melo, V.S.Rossini, N.O.Adriani, P.P.Dias, M.V.B.Chambergo, F.S.

(2025) Int J Biol Macromol 329: 147909-147909

  • DOI: https://doi.org/10.1016/j.ijbiomac.2025.147909
  • Primary Citation Related Structures:
    9NO3

  • PubMed Abstract:

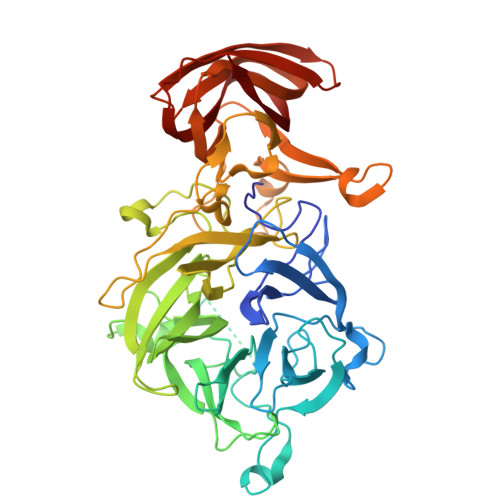

    The pursuit of sustainable energy has intensified the search for efficient biocatalysts to convert lignocellulosic biomass. In this context, we characterized a novel bifunctional enzyme, TerARA, identified from the gut metagenome of the termite Pseudacanthotermes militaris. Belonging to the glycoside hydrolase 43 (GH43) family, TerARA was heterologously expressed in E. coli BL21 and purified. The enzyme demonstrated bifunctional activity toward synthetic substrates p-nitrophenyl-α-L-arabinofuranoside (pNP-Araf) (387.22 ± 74.2 U/mg) and p-nitrophenyl-β-D-xylopyranoside (pNP-Xyl) (330.82 ± 31.2 U/mg), with higher catalytic efficiency for pNP-Araf (9.14 s -1 ·mM -1 ), suggesting functional preference as an α-L-arabinofuranosidase. Activity modulation by metal ions revealed that Ca 2+ slightly improved efficiency toward pNP-Araf (to 9.58 s -1 ·mM -1 at 1 mM), while Zn 2+ reduced efficiency for pNP-Xyl except at 5 mM (6.65 s -1 ·mM -1 ). Zn 2+ also enhanced enzymatic stability, maintaining 80 % activity in pNP-Xyl hydrolysis. Crystallographic analysis at 2.0 Å resolution revealed a 43 Glycosyl Hydrolase catalytic domain with a five-bladed β-propeller fold and two Ca 2+ ions and a Carbohydrate-Binding Module (CBM) domain with a β-sandwich fold likely involved in substrate interaction. Conserved catalytic residues, binding sites, and Ca 2+ stabilizing effects were identified. TerARA's bifunctionality and structural features support its application in hemicellulose degradation and biomass conversion.


  • Organizational Affiliation
    • Laboratory of Biochemistry and Protein Biotechnology, School of Arts, Sciences and Humanities, University of Sao Paulo, Sao Paulo, 03828000, Brazil.

Macromolecule Content

  • Total Structure Weight: 221.97 kDa
  • Atom Count: 16,918
  • Modeled Residue Count: 1,955
  • Deposited Residue Count: 2,024
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
TerARA - arabinofuranosidase/xylosidase from metagenome of Pseudacanthotermes militaris.
A, B, C, D
506Pseudacanthotermes militarisMutation(s): 0

Small Molecules

Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
TRS

Query on TRS



Download:Ideal Coordinates CCD File
G [auth A],
H [auth A],
U [auth D],
X [auth D]
2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
C4 H12 N O3
LENZDBCJOHFCAS-UHFFFAOYSA-O
GOL

Query on GOL



Download:Ideal Coordinates CCD File
K [auth B]
L [auth B]
M [auth B]
O [auth C]
R [auth C]
K [auth B],
L [auth B],
M [auth B],
O [auth C],
R [auth C],
S [auth C]
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
CA
(Subject of Investigation/LOI)

Query on CA



Download:Ideal Coordinates CCD File
E [auth A]
F [auth A]
I [auth B]
J [auth B]
N [auth B]
E [auth A],
F [auth A],
I [auth B],
J [auth B],
N [auth B],
P [auth C],
Q [auth C],
T [auth C],
V [auth D],
W [auth D]
CALCIUM ION
Ca
BHPQYMZQTOCNFJ-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.05 Å
  • R-Value Free:  0.238 (Depositor), 0.238 (DCC)
  • R-Value Work:  0.178 (Depositor), 0.177 (DCC)
  • R-Value Observed: 0.181 (Depositor)
Space Group: P 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 76.369α = 77.34
b = 85.774β = 68.05
c = 90.601γ = 63.76
Software Package:
Software NamePurpose
PHENIXrefinement
Aimlessdata scaling
XDSdata reduction
PHASERphasing

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Sao Paulo Research Foundation (FAPESP)Brazil2018/00351-1
Sao Paulo Research Foundation (FAPESP)Brazil2021/10577-0
Sao Paulo Research Foundation (FAPESP)Brazil2022/12234-5
Sao Paulo Research Foundation (FAPESP)Brazil2017/23627-0
Sao Paulo Research Foundation (FAPESP)Brazil2021/14205-0
Brazilian National Council for Scientific and Technological Development (CNPq)Brazil308223/2023-3

Revision History  (Full details and data files)

  • Version 1.0: 2025-10-08
    Type: Initial release
  • Version 1.1: 2025-11-19
    Changes: Database references
