9MXL | pdb_00009mxl

Complex of the phosphorylated human cystic fibrosis transmembrane conductance regulator (CFTR) with (R)-BPO-27 and ATP/Mg

  • Classification: MEMBRANE PROTEIN
  • Organism(s): Homo sapiens
  • Expression System: Homo sapiens
  • Mutation(s): Yes

  • Deposited: 2025-01-20 Released: 2025-08-06
  • Deposition Author(s): Young, P.G., Fiedorczuk, K., Chen, J.
  • Funding Organization(s): Howard Hughes Medical Institute (HHMI), National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.10 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Structure of CFTR bound to (R)-BPO-27 unveils a pore-blockage mechanism.

Young, P.G.Fiedorczuk, K.Chen, J.

(2025) Nat Commun 16: 7059-7059

  • DOI: https://doi.org/10.1038/s41467-025-62199-7
  • Primary Citation of Related Structures:
    9MXL

  • PubMed Abstract:

    Hyperactivation of the cystic fibrosis transmembrane conductance regulator (CFTR) contributes to secretory diarrhea, a major cause of pediatric mortality worldwide, and autosomal dominant polycystic kidney disease (ADPKD), the most common inherited cause of end-stage renal disease. Selective CFTR inhibition is a potential therapeutic strategy, with (R)-BPO-27 emerging as a promising candidate. Here, we present a cryo-EM structure of CFTR bound to (R)-BPO-27 at an overall resolution of 2.1 Å. Contrary to the previous hypothesis that it inhibits CFTR current by competition with ATP, we demonstrate that (R)-BPO-27 instead directly occludes the chloride-conducting pore while permitting ATP hydrolysis, thus uncoupling the two activities. Furthermore, we find that inhibitor binding requires some degree of NBD separation, as the inhibition rate inversely correlates with the probability NBD dimerization. These findings clarify the compound's mechanism and provide a molecular basis for optimizing its clinical potential.


  • Organizational Affiliation
    • Laboratory of Membrane Biology and Biophysics, The Rockefeller University, New York, NY, USA.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure

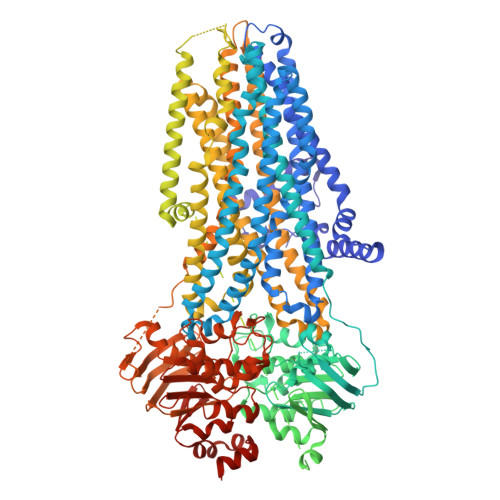

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Cystic fibrosis transmembrane conductance regulatorA [auth B]1,480Homo sapiensMutation(s): 1
Gene Names: CFTRABCC7
EC: 5.6.1.6
UniProt & NIH Common Fund Data Resources
Find proteins for P13569 (Homo sapiens)
Explore P13569
Go to UniProtKB:  P13569
PHAROS:  P13569
GTEx:  ENSG00000001626
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP13569
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1BUJ (Subject of Investigation/LOI)
Query on A1BUJ

Download Ideal Coordinates CCD File
B
(6R,12R)-6-(5-bromofuran-2-yl)-7,9-dimethyl-8,10-dioxo-11-phenyl-7,8,9,10-tetrahydro-6H-pyrimido[4',5':3,4]pyrrolo[2,1-c][1,4]benzoxazine-2-carboxylic acid
C26 H18 Br N3 O6
GNHIGSRGYXEQEP-QHCPKHFHSA-N
ATP
Query on ATP

Download Ideal Coordinates CCD File
E [auth B],
F [auth B]
ADENOSINE-5'-TRIPHOSPHATE
C10 H16 N5 O13 P3
ZKHQWZAMYRWXGA-KQYNXXCUSA-N
CL
Query on CL

Download Ideal Coordinates CCD File
G [auth B]CHLORIDE ION
Cl
VEXZGXHMUGYJMC-UHFFFAOYSA-M
MG
Query on MG

Download Ideal Coordinates CCD File
C [auth B],
D [auth B]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.10 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX
RECONSTRUCTIONRELION

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Howard Hughes Medical Institute (HHMI)United States--
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesT32GM152349

Revision History  (Full details and data files)

  • Version 1.0: 2025-08-06
    Type: Initial release
  • Version 1.1: 2026-02-18
    Changes: Data collection, Database references
