9MQA | pdb_00009mqa

Cryo-EM structure of hemagglutinin H5N1 in complex with Fab 310-7D11

• PDB DOI: https://doi.org/10.2210/pdb9MQA/pdb
• EM Map EMD-48518: EMDB EMDataResource

• Classification: VIRAL PROTEIN
• Organism(s): Influenza A virus, Homo sapiens
• Expression System: Homo sapiens
• Mutation(s): No


• Deposited: 2025-01-02 Released: 2025-08-13
• Deposition Author(s): Malla, T.N., Tsybovsky, Y., Zhou, T.
• Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.22 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Starting Model: in silico

Literature

Potently Neutralizing Pan H5 monoclonal antibodies provide protection against HPAI H5N1

Abu-Shmais, A., Malla, T., Tsybovsky, Y., Zhou, T., Andrews, S., Kanekiyo, M.

To be published.

Biological Assembly 1

Global Symmetry: Cyclic - C3  (Explore in 3D)
Global Stoichiometry: Hetero 12-mer - A3B3C3D3 Pseudo Symmetry: Cyclic - C3  (Explore in 3D)
Pseudo Stoichiometry: Hetero 12-mer - A6B3C3

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 272.26 kDa
• Atom Count: 14,951
• Modeled Residue Count: 1,895
• Deposited Residue Count: 2,421
• Unique protein chains: 4

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

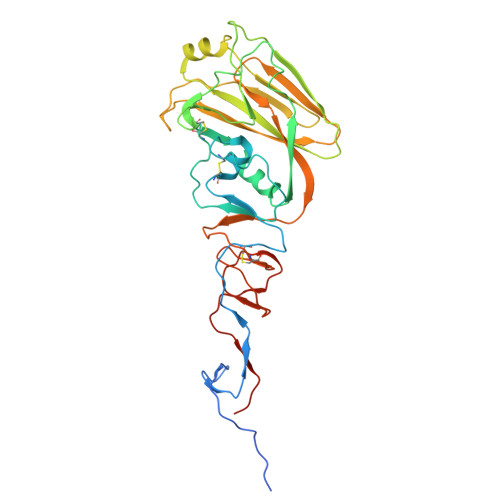

Hemagglutinin HA1 chain	A, C, E	342	Influenza A virus	Mutation(s): 0  Gene Names: HA
UniProt
Find proteins for A0A8E4ZAK5 (Influenza A virus) Explore A0A8E4ZAK5  Go to UniProtKB:  A0A8E4ZAK5

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

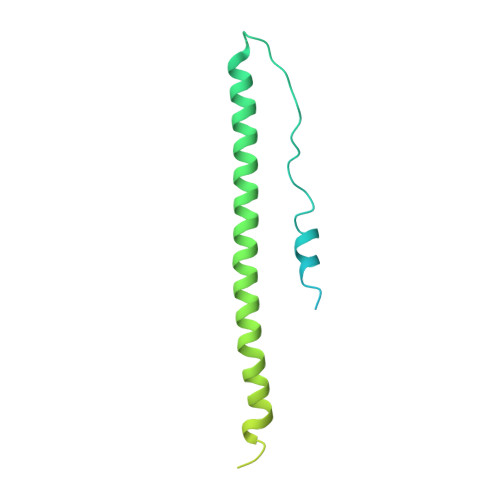

Hemagglutinin HA2 chain	B, D, F	227	Influenza A virus	Mutation(s): 0  Gene Names: HA
UniProt
Find proteins for A0A8K1XY81 (Influenza A virus) Explore A0A8K1XY81  Go to UniProtKB:  A0A8K1XY81

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image
310-7D11 Fab Heavy chain	G [auth H], H [auth I], I [auth J]	126	Homo sapiens	Mutation(s): 0

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

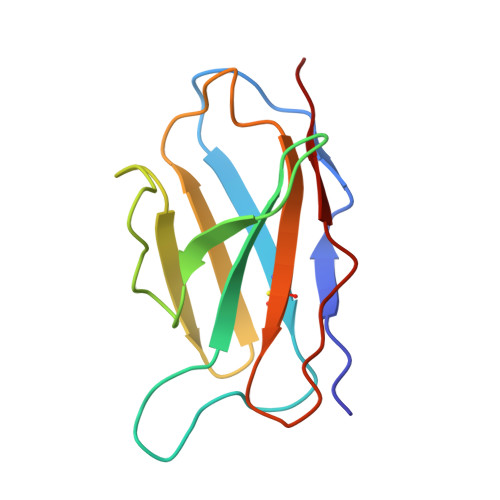

310-7D11 Fab Light chain	J [auth L], K [auth M], L [auth N]	112	Homo sapiens	Mutation(s): 0

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.22 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.20.1_4487:
RECONSTRUCTION	cryoSPARC

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-08-13
Deposition Author(s): Malla, T.N., Tsybovsky, Y., Zhou, T.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	--

Revision History

• Version 1.0: 2025-08-13
  Type: Initial release
