9MPP | pdb_00009mpp

The cryo-EM structure of nucleosome-bound DNA methyltransferases DNMT3A2 and DNMT3L


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.10 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Models: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Mechanisms of DNMT3A-3L-mediated de novo DNA methylation on chromatin.

Yan, Y.Zhou, X.E.Thomas, S.L.Liu, M.Lai, G.Q.Worden, E.J.Jones, P.A.Xu, T.H.

(2025) Nat Struct Mol Biol

  • DOI: https://doi.org/10.1038/s41594-025-01704-4
  • Primary Citation of Related Structures:
    9MP0, 9MPO, 9MPP

  • PubMed Abstract:

    De novo DNA methylation is mediated by DNA methyltransferases DNMT3A and DNMT3B, in cooperation with the catalytically inactive paralogs DNMT3L and DNMT3B3. DNMT3L is predominantly expressed in embryonic stem cells to establish methylation patterns and is silenced upon differentiation, with DNMT3B3 substituting in somatic cells. Here we present high-resolution cryo-electron microscopy structures of nucleosome-bound, full-length DNMT3A2-3L and its oligomeric assemblies in the nucleosome-free state. We identified the critical role of DNMT3L as a histone modification sensor, guiding chromatin engagement through a mechanism distinct from DNMT3B3. The structures show a 180° rotated 'switching helix' in DNMT3L that prevents direct interaction with the nucleosome acidic patch. Instead, nucleosome binding is mediated by the DNMT3L ADD domain, while the DNMT3A PWWP domain exhibits reduced engagement in the absence of H3K36 methylation. The oligomeric arrangement of DNMT3A2-3L in nucleosome-free states highlights its dynamic assembly and potential allosteric regulation. We further capture dynamic structural movements of DNMT3A2-3L on nucleosomes. These findings uncover a previously unknown mechanism by which DNMT3A-3L mediates de novo DNA methylation on chromatin through complex assembly, histone tail sensing, dynamic DNA search and regulated nucleosome engagement, providing insights into epigenetic regulation.


  • Organizational Affiliation
    • Edward A. Doisy Department of Biochemistry and Molecular Biology, Saint Louis University School of Medicine, St. Louis, MO, USA.

Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

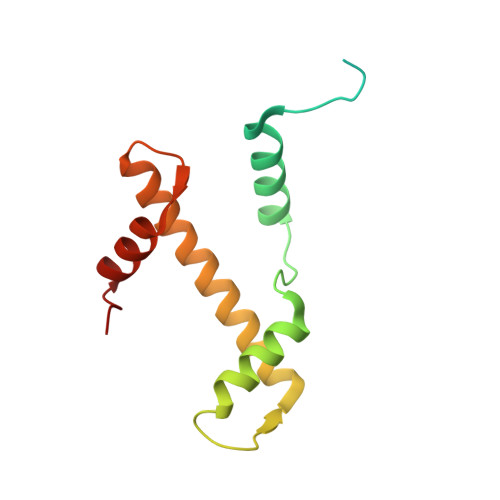

Histone H3.2
A, E
135Xenopus laevisMutation(s): 1
UniProt
Find proteins for P84233 (Xenopus laevis)
Explore P84233
Go to UniProtKB:  P84233
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP84233
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

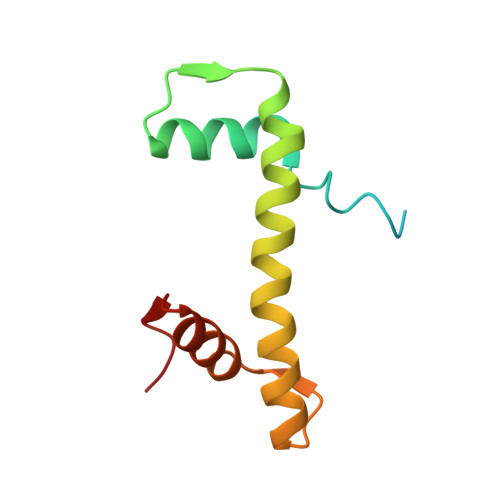

Histone H4
B, F
103Xenopus laevisMutation(s): 0
UniProt
Find proteins for P62799 (Xenopus laevis)
Explore P62799
Go to UniProtKB:  P62799
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62799
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

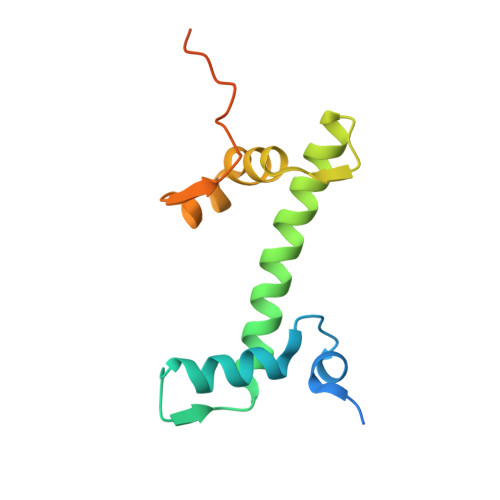

Histone H2A type 1
C, G
129Xenopus laevisMutation(s): 2
UniProt
Find proteins for P06897 (Xenopus laevis)
Explore P06897
Go to UniProtKB:  P06897
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP06897
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage

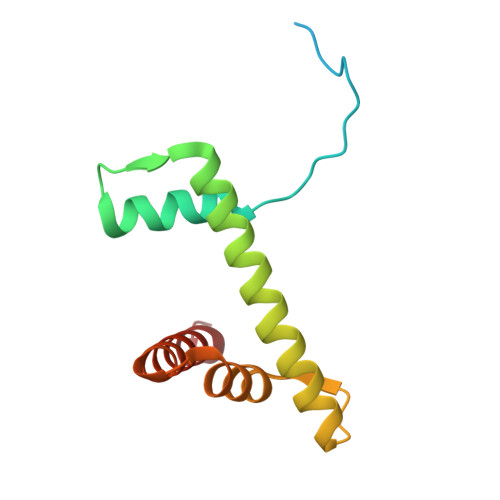

Histone H2B 1.1
D, H
123Xenopus laevisMutation(s): 1
UniProt
Find proteins for P02281 (Xenopus laevis)
Explore P02281
Go to UniProtKB:  P02281
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP02281
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage

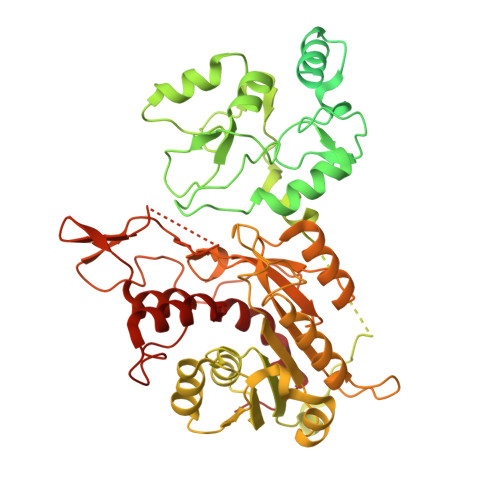

DNA (cytosine-5)-methyltransferase 3AK [auth M],
M [auth K]
689Homo sapiensMutation(s): 0
Gene Names: DNMT3A
EC: 2.1.1.37 (PDB Primary Data), 2.1.1 (UniProt)
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y6K1 (Homo sapiens)
Explore Q9Y6K1
Go to UniProtKB:  Q9Y6K1
PHAROS:  Q9Y6K1
GTEx:  ENSG00000119772
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9Y6K1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage

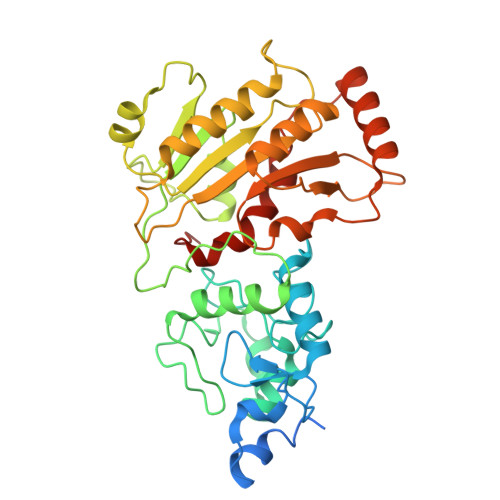

DNA (cytosine-5)-methyltransferase 3-likeL [auth N],
N [auth L]
386Homo sapiensMutation(s): 1
Gene Names: DNMT3L
UniProt & NIH Common Fund Data Resources
Find proteins for Q9UJW3 (Homo sapiens)
Explore Q9UJW3
Go to UniProtKB:  Q9UJW3
PHAROS:  Q9UJW3
GTEx:  ENSG00000142182
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9UJW3
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains LengthOrganismImage
DNA (167-MER)167synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains LengthOrganismImage
DNA (167-MER)167synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
SAH (Subject of Investigation/LOI)
Query on SAH

Download Ideal Coordinates CCD File
R [auth M],
V [auth K]
S-ADENOSYL-L-HOMOCYSTEINE
C14 H20 N6 O5 S
ZJUKTBDSGOFHSH-WFMPWKQPSA-N
ZN (Subject of Investigation/LOI)
Query on ZN

Download Ideal Coordinates CCD File
O [auth M]
P [auth M]
Q [auth M]
S [auth N]
T [auth N]
O [auth M],
P [auth M],
Q [auth M],
S [auth N],
T [auth N],
U [auth N]
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.10 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONcryoSPARC4.6
MODEL REFINEMENTPHENIX

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Other privateStartup Funds
National Institutes of Health/National Cancer Institute (NIH/NCI)United StatesR35CA209859

Revision History  (Full details and data files)

  • Version 1.0: 2025-10-08
    Type: Initial release
  • Version 1.1: 2025-11-12
    Changes: Data collection, Database references
  • Version 1.2: 2025-11-19
    Changes: Data collection
