9LGU | pdb_00009lgu

Crystal structure of Bcl-xL in complex with stapled HRK peptide


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.97 Å
  • R-Value Free:
    0.303 (Depositor), 0.295 (DCC)
  • R-Value Work:
    0.257 (Depositor)
  • R-Value Observed:
    0.260 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9LGU

This is version 1.2 of the entry. See complete history

Literature

Molecular mechanisms underlying HRK interaction with BCL-XL and BCL-2 reveal specificity determinants for BH3 mimetics.

Wang, J.Guo, M.Dai, S.Wei, H.

(2025) iScience 28: 113309-113309

  • DOI: https://doi.org/10.1016/j.isci.2025.113309
  • Primary Citation Related Structures:
    9LGU, 9LI8

  • PubMed Abstract:

    BH3 mimetics targeting the BCL-2 family hold broad promise for cancer therapy. High similarity between the anti-apoptotic proteins BCL-XL and BCL-2 challenges the engineering of selective inhibitors. The BH3-only protein HRK is a natural selective inhibitor of BCL-XL and to a less extent of BCL-2. The detailed interaction mechanism remains elusive. Our structural and mutational analyses show that the discrepant conformational changes and non-conserved residues in the α2-α3 region are crucial for the preferential binding between BCL-XL and HRK. BCL-XL tolerates hydrophilic Thr33 or hydrophobic substitutions at the h1 position of HRK, whereas BCL-2 favors hydrophobic interactions, resulting in a weaker affinity for HRK. In addition, we design HRK-derived stapled peptides with improved helicity and activity against BCL-XL and BCL-2, and further elucidate the structural mechanism. Our findings reveal the binding specificity of HRK interactions with BCL-XL and BCL-2, and provide advanced insights into the development of BH3 mimetics.


  • Organizational Affiliation
    • Department of Oncology, NHC Key Laboratory of Cancer Proteomics & State Local Joint Engineering Laboratory for Anticancer Drugs, National Clinical Research Center for Geriatric Disorders, Xiangya Hospital, Central South University, Changsha, Hunan 410008, China.

Macromolecule Content

  • Total Structure Weight: 164.1 kDa
  • Atom Count: 8,005
  • Modeled Residue Count: 991
  • Deposited Residue Count: 1,452
  • Unique protein chains: 2

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

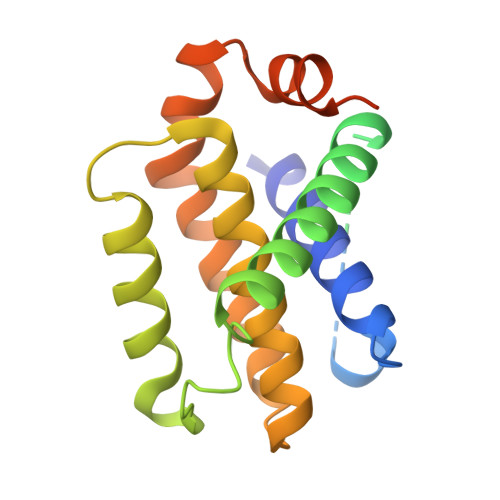

Bcl-2-like protein 1218Homo sapiensMutation(s): 0
Gene Names: BCL2L1BCL2LBCLX
UniProt & NIH Common Fund Data Resources
Find proteins for Q07817 (Homo sapiens)
Explore Q07817
Go to UniProtKB:  Q07817
PHAROS:  Q07817
GTEx:  ENSG00000171552
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ07817
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:  Sequence   |   3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

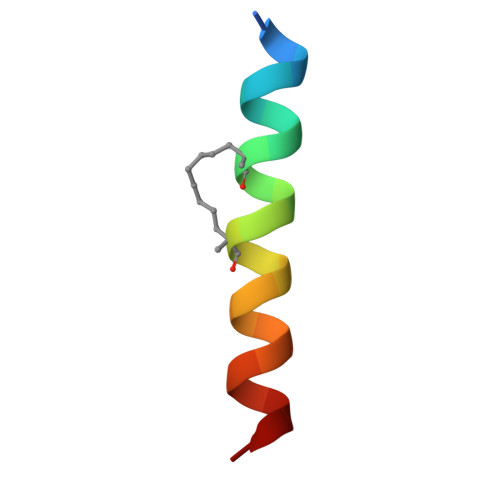

Activator of apoptosis harakiri24Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for O00198 (Homo sapiens)
Explore O00198
Go to UniProtKB:  O00198
PHAROS:  O00198
GTEx:  ENSG00000135116
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO00198
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.97 Å
  • R-Value Free:  0.303 (Depositor), 0.295 (DCC)
  • R-Value Work:  0.257 (Depositor)
  • R-Value Observed: 0.260 (Depositor)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 71.59α = 90
b = 111.91β = 109.52
c = 84.14γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
autoPROCdata reduction
autoPROCdata scaling
PHENIXphasing

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China82470176, 82273496 and 31900880

Revision History  (Full details and data files)

  • Version 1.0: 2025-08-06
    Type: Initial release
  • Version 1.1: 2025-09-10
    Changes: Database references
  • Version 1.2: 2025-09-17
    Changes: Database references
