9L3F | pdb_00009l3f

Structure-Guided Design of Picomolar-level Macrocyclic TRPC5 Channel Inhibitors with Antidepressant Activity

PDB DOI: https://doi.org/10.2210/pdb9L3F/pdb
EM Map EMD-62784: EMDB EMDataResource

Classification: MEMBRANE PROTEIN
Organism(s): Mus musculus
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2024-12-18 Released: 2025-12-24
Deposition Author(s): Che, T., Zhang, J., Xiong, B., Cheng, X.Y.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.09 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Structure-Guided Design of Picomolar-level Macrocyclic TRPC5 Channel Inhibitors with Antidepressant Activity

Che, T., Zhang, J., Xiong, B., Cheng, X.Y.

To be published.

Macromolecule Content

Total Structure Weight: 358.21 kDa
Atom Count: 22,652
Modeled Residue Count: 2,752
Deposited Residue Count: 3,060
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

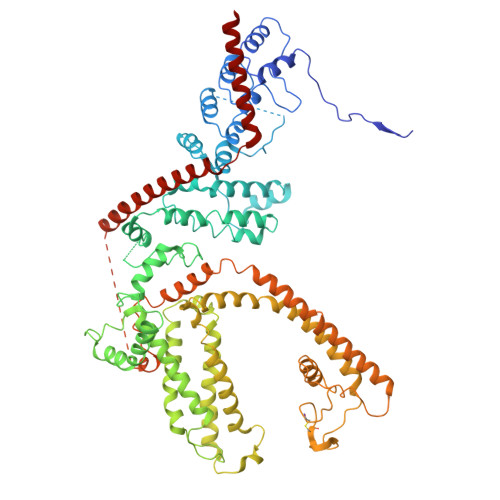

Short transient receptor potential channel 5	A, B, C, D	765	Mus musculus	Mutation(s): 0 Gene Names: Trpc5, Trp5, Trrp5
UniProt
Find proteins for Q9QX29 (Mus musculus) Explore Q9QX29 Go to UniProtKB: Q9QX29
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9QX29
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1EH7 (Subject of Investigation/LOI) Query on A1EH7 Download Ideal Coordinates CCD File SDF format, chain G [auth A] SDF format, chain J [auth B] SDF format, chain M [auth C] SDF format, chain P [auth D] MOL2 format, chain G [auth A] MOL2 format, chain J [auth B] MOL2 format, chain M [auth C] MOL2 format, chain P [auth D] mmCIF format, chain G [auth A] mmCIF format, chain J [auth B] mmCIF format, chain M [auth C] mmCIF format, chain P [auth D]	G [auth A], J [auth B], M [auth C], P [auth D]	(E)-1-(4-chlorobenzyl)-3-fluoro-1-(3-hydroxypropyl)-1,1,1,1-tetrahydro-1H-2,4-dioxa-1(8,3)-purina-3(1,3)-benzenacyclodecaphane-1,1-dione C₂₇ H₂₈ Cl F N₄ O₅ IKZSODIUDUBEIW-UHFFFAOYSA-N		Interactions Focus chain G [auth A] Focus chain J [auth B] Focus chain M [auth C] Focus chain P [auth D] Interactions & Density Focus chain G [auth A] Focus chain J [auth B] Focus chain M [auth C] Focus chain P [auth D]
ZN (Subject of Investigation/LOI) Query on ZN Download Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain K [auth C] SDF format, chain N [auth D] SDF format, chain H [auth B] MOL2 format, chain E [auth A] MOL2 format, chain K [auth C] MOL2 format, chain N [auth D] MOL2 format, chain H [auth B] mmCIF format, chain E [auth A] mmCIF format, chain K [auth C] mmCIF format, chain N [auth D] mmCIF format, chain H [auth B]	E [auth A], H [auth B], K [auth C], N [auth D]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain E [auth A] Focus chain H [auth B] Focus chain K [auth C] Focus chain N [auth D] Interactions & Density Focus chain E [auth A] Focus chain H [auth B] Focus chain K [auth C] Focus chain N [auth D]
CA (Subject of Investigation/LOI) Query on CA Download Ideal Coordinates CCD File SDF format, chain F [auth A] SDF format, chain I [auth B] SDF format, chain L [auth C] SDF format, chain O [auth D] MOL2 format, chain F [auth A] MOL2 format, chain I [auth B] MOL2 format, chain L [auth C] MOL2 format, chain O [auth D] mmCIF format, chain F [auth A] mmCIF format, chain I [auth B] mmCIF format, chain L [auth C] mmCIF format, chain O [auth D]	F [auth A], I [auth B], L [auth C], O [auth D]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N		Interactions Focus chain F [auth A] Focus chain I [auth B] Focus chain L [auth C] Focus chain O [auth D] Interactions & Density Focus chain F [auth A] Focus chain I [auth B] Focus chain L [auth C] Focus chain O [auth D]
