9K76 | pdb_00009k76

Crystal structure of human STING in complex with F2W

PDB DOI: https://doi.org/10.2210/pdb9K76/pdb

Classification: IMMUNE SYSTEM
Organism(s): Homo sapiens
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2024-10-23 Released: 2025-10-29
Deposition Author(s): Feng, Z.W., Zeng, T., Chen, M.R., Xiao, Y.B., Xu, X.L.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.17 Å
R-Value Free:
0.230 (Depositor), 0.230 (DCC)
R-Value Work:
0.195 (Depositor), 0.197 (DCC)
R-Value Observed:
0.199 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9K76

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Crystal structure of human STING in complex with F2W

Feng, Z.W., Zeng, T., Chen, M.R., Xiao, Y.B., Xu, X.L.

To be published.

Macromolecule Content

Total Structure Weight: 22.27 kDa
Atom Count: 1,437
Modeled Residue Count: 170
Deposited Residue Count: 191
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1

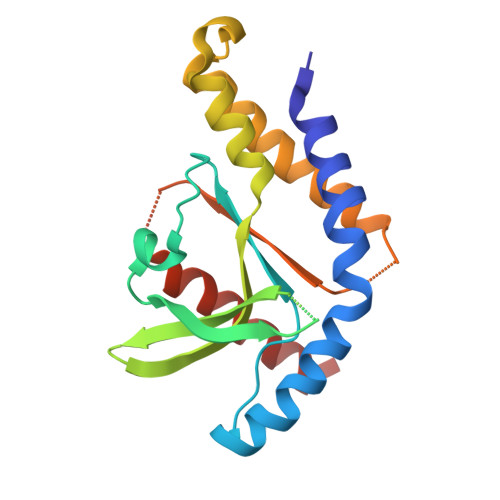

Molecule	Chains	Sequence Length	Organism	Details	Image
Stimulator of interferon genes protein	A [auth B]	191	Homo sapiens	Mutation(s): 0 Gene Names: STING1, ERIS, MITA, STING, TMEM173
UniProt & NIH Common Fund Data Resources
Find proteins for Q86WV6 (Homo sapiens) Explore Q86WV6 Go to UniProtKB: Q86WV6
PHAROS: Q86WV6 GTEx: ENSG00000184584
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q86WV6
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
1T2 (Subject of Investigation/LOI) Query on 1T2 Download:Ideal Coordinates CCD File SDF format, chain B MOL2 format, chain B mmCIF format, chain B	B	5-chloranyl-3-[(4-methylsulfonylphenyl)carbonylamino]-1-benzofuran-2-carboxylic acid C₁₇ H₁₂ Cl N O₆ S CTIKDWINEZJFSB-UHFFFAOYSA-N		Interactions Focus chain B Interactions & Density Focus chain B

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.17 Å
R-Value Free: 0.230 (Depositor), 0.230 (DCC)
R-Value Work: 0.195 (Depositor), 0.197 (DCC)
R-Value Observed: 0.199 (Depositor)

Space Group: C 2 2 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 81.371	α = 90
b = 87.638	β = 90
c = 73.484	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
XDS	data scaling
PHENIX	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-10-29

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	82273786

Revision History (Full details and data files)

Version 1.0: 2025-10-29
Type: Initial release
