9JIX | pdb_00009jix

Crystal structure of de novo designed ATPase, PL2x4_2


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.29 Å
  • R-Value Free:
    0.260 (Depositor), 0.260 (DCC)
  • R-Value Work:
    0.237 (Depositor), 0.240 (DCC)
  • R-Value Observed:
    0.238 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9JIX

This is version 1.1 of the entry. See complete history

Literature

De novo design of ATPase based on a blueprint optimized for harboring the P-loop motif.

Kosugi, T.Tanabe, M.Koga, N.

(2025) Protein Sci 34: e70132-e70132

  • DOI: https://doi.org/10.1002/pro.70132
  • Primary Citation Related Structures:
    9JIX

  • PubMed Abstract:

    De novo design of proteins has seen remarkable recent progress and has provided understanding of folding and functional expression. However, rationally creating enzymes with high activity comparable to most naturally occurring enzymes remains challenging. Here, we attempted to design an ATPase de novo, through the exploration of an optimal backbone blueprint to incorporate a conserved phosphate binding motif, the P-loop, into designed structures. The designed protein, based on the identified blueprint, was found to be a monomer with high thermal stability and exhibited ATPase ability. The crystal structure was closely matched to the design model, both at the overall structure level and within the P-loop motif. Interestingly, AlphaFold 2 was not able to predict the designed structure accurately, indicating the difficulties of predicting folded structures for novel amino acid sequences. Remarkably, the designed protein exhibited ATPase ability even at temperatures around 100°C, with significantly increased activity. However, the ATPase activity was still not comparable to those of naturally occurring enzymes. This suggests that the P-loop motif alone is insufficient to achieve the high ATPase activity seen in naturally occurring enzymes, indicating that other structural components-such as a binding pocket optimized for the adenine or ribose moieties of ATP, additional catalytic residues, or structural dynamics that facilitate hydrolysis-are necessary to reach such activity levels.


  • Organizational Affiliation
    • Research Center of Integrative Molecular Systems, Institute for Molecular Science (IMS), National Institutes of Natural Sciences (NINS), Okazaki, Aichi, Japan.

Macromolecule Content

  • Total Structure Weight: 34.51 kDa
  • Atom Count: 2,358
  • Modeled Residue Count: 303
  • Deposited Residue Count: 316
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

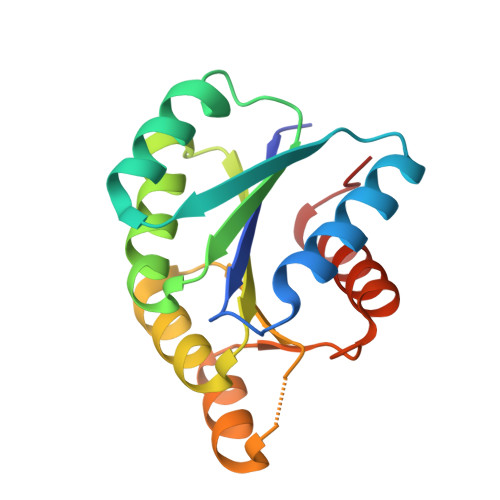

De Novo Designed ATPase, PL2x4_2A,
B [auth C]
158synthetic constructMutation(s): 0

Small Molecules

Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
TRS

Query on TRS



Download:Ideal Coordinates CCD File
H [auth C]2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
C4 H12 N O3
LENZDBCJOHFCAS-UHFFFAOYSA-O
SO4

Query on SO4



Download:Ideal Coordinates CCD File
D [auth A],
I [auth C]
SULFATE ION
O4 S
QAOWNCQODCNURD-UHFFFAOYSA-L
ACT

Query on ACT



Download:Ideal Coordinates CCD File
E [auth A],
F [auth A],
G [auth A]
ACETATE ION
C2 H3 O2
QTBSBXVTEAMEQO-UHFFFAOYSA-M
NH4

Query on NH4



Download:Ideal Coordinates CCD File
C [auth A]AMMONIUM ION
H4 N
QGZKDVFQNNGYKY-UHFFFAOYSA-O

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.29 Å
  • R-Value Free:  0.260 (Depositor), 0.260 (DCC)
  • R-Value Work:  0.237 (Depositor), 0.240 (DCC)
  • R-Value Observed: 0.238 (Depositor)
Space Group: P 32 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 77.663α = 90
b = 77.663β = 90
c = 101.535γ = 120
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Japan Society for the Promotion of Science (JSPS)Japan18H05420
Japan Science and TechnologyJapanJPMJPR20E6
Japan Agency for Medical Research and Development (AMED)JapanJP21am0101071

Revision History  (Full details and data files)

  • Version 1.0: 2025-04-23
    Type: Initial release
  • Version 1.1: 2025-05-28
    Changes: Database references
