9JEN | pdb_00009jen

Chito oligosaccharide deacetylase from vibrio campbellii (VhCOD) complex Tetraacetyl-Chitotetraose Oligosaccharide (GlcNAc)4


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.65 Å
  • R-Value Free:
    0.198 (Depositor), 0.200 (DCC)
  • R-Value Work:
    0.169 (Depositor), 0.176 (DCC)
  • R-Value Observed:
    0.171 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history


Literature

Structure and loop dynamics of a chitooligosaccharide deacetylase from the marine bacterium Vibrio campbellii (harveyi).

Pongnan, S.Robinson, R.C.Lampela, O.Juffer, A.Fukamizo, T.Suginta, W.

(2025) J Biological Chem 301: 110608-110608

  • DOI: https://doi.org/10.1016/j.jbc.2025.110608
  • Primary Citation of Related Structures:
    8YFP, 8YH4, 9JEN, 9JEO, 9JT0, 9JT8

  • PubMed Abstract:

    A chitooligosaccharide deacetylase from Vibrio campbellii (formerly Vibrio harveyi) (VhCOD) belonging to the carbohydrate esterase family 4 catalyzes Zn 2+ -dependent deacetylation of a specific GlcNAc residue in chitooligosaccharides. It deacetylates chitobiose, (GlcNAc) 2 , to produce GlcNAc-GlcN following Michaelis-Menten kinetics. We elucidated the six crystal structures of wildtype VhCOD in ligand-free and -bound states with (GlcNAc) 2 (substrate), GlcNAc-GlcN (product), (GlcN) 2 (product analog), GlcNAc-GlcN-GlcNAc (product), or GlcNAc-GlcN-(GlcNAc) 2 (product). The structures of VhCOD comprise the carbohydrate esterase family 4 catalytic domain and the two CBM12 carbohydrate-binding domains, similar to the COD homologs from Vibrio cholerae and Vibrio parahaemolyticus. The catalytic site, where a Zn 2+ ion is coordinated with the His-His-Asp triad and three water molecules, is surrounded by six loops (L1-L6). Comparison between the ligand-free and various bound structures uncovered full catalytic cycle, including the product release in company with a large conformational change in L4. Molecular dynamics simulation based on the crystal structures provided further insights into the loop fluctuations, which are proposed to be involved in the catalytic reaction.


  • Organizational Affiliation
    • School of Biomolecular Science and Engineering (BSE), Vidyasirimedhi Institute of Science and Technology (VISTEC), Rayong, Thailand.

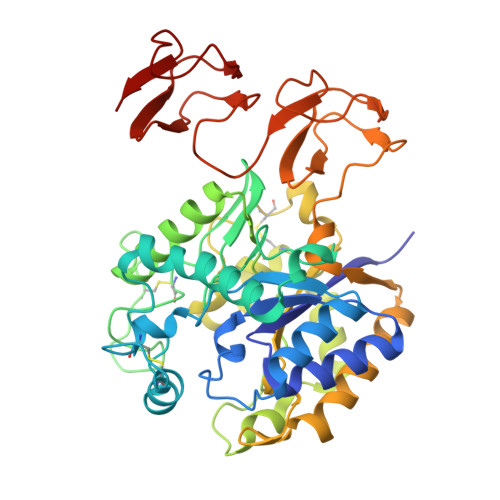

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
NodB homology domain-containing protein
A, B
405Vibrio campbellii ATCC BAA-1116Mutation(s): 0
Gene Names: VIBHAR_03626
UniProt
Find proteins for A7MSF4 (Vibrio campbellii (strain ATCC BAA-1116))
Explore A7MSF4
Go to UniProtKB:  A7MSF4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA7MSF4
Sequence Annotations
Expand
  • Reference Sequence
Oligosaccharides

Help

Entity ID: 2
MoleculeChains Length2D Diagram Glycosylation3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-amino-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseC [auth U]3N/A
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
ZN (Subject of Investigation/LOI)
Query on ZN

Download Ideal Coordinates CCD File
E [auth A],
I [auth B]
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
ACT (Subject of Investigation/LOI)
Query on ACT

Download Ideal Coordinates CCD File
D [auth A],
G [auth B],
H [auth B]
ACETATE ION
C2 H3 O2
QTBSBXVTEAMEQO-UHFFFAOYSA-M
NA (Subject of Investigation/LOI)
Query on NA

Download Ideal Coordinates CCD File
F [auth A],
J [auth B]
SODIUM ION
Na
FKNQFGJONOIPTF-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.65 Å
  • R-Value Free:  0.198 (Depositor), 0.200 (DCC)
  • R-Value Work:  0.169 (Depositor), 0.176 (DCC)
  • R-Value Observed: 0.171 (Depositor)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 60.343α = 90
b = 102.927β = 110.04
c = 77.285γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
HKL-2000data scaling
iMOSFLMdata reduction
PHENIXphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Vidyasirimedhi Institute of Science and Technology (VISTEC)Thailand--

Revision History  (Full details and data files)

  • Version 1.0: 2025-09-10
    Type: Initial release
  • Version 1.1: 2025-10-22
    Changes: Database references
