9JCL | pdb_00009jcl

ADP-bound purinergic receptor 1 with L266P mutant in complex with miniGs/q

• PDB DOI: https://doi.org/10.2210/pdb9JCL/pdb
• EM Map EMD-61369: EMDB EMDataResource

• Classification: MEMBRANE PROTEIN/IMMUNE SYSTEM
• Organism(s): Homo sapiens
• Expression System: Spodoptera frugiperda, Escherichia coli
• Mutation(s): Yes
• Membrane Protein: Yes  MemProtMD


• Deposited: 2024-08-29 Released: 2025-09-10
• Deposition Author(s): Gu, Q.C., Wang, T.X., Tang, W.Q.
• Funding Organization(s): National Natural Science Foundation of China (NSFC)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 2.76 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Cryo-EM map and model for human purinergic receptor P2Y1 with single mutation L266P

Gu, Q.C., Wang, T.X., Tang, W.Q.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 5-mer - A1B1C1D1E1

Biological assembly 1 assigned by authors.

Macromolecule Content

• Total Structure Weight: 121.37 kDa
• Atom Count: 8,300
• Modeled Residue Count: 1,057
• Deposited Residue Count: 1,071
• Unique protein chains: 5

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

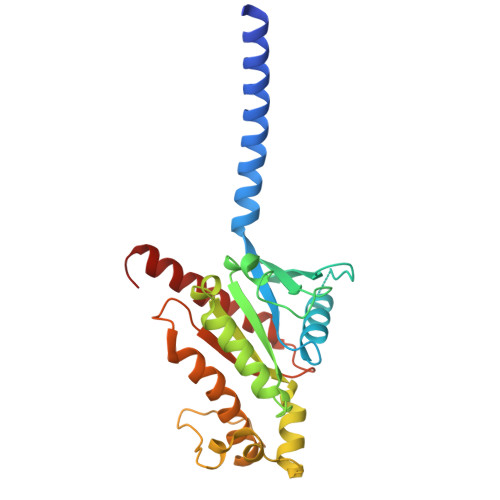

GNAS complex locus	A	253	Homo sapiens	Mutation(s): 0

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

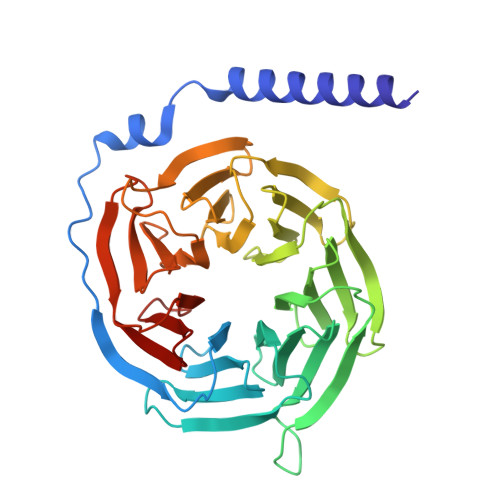

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1	B	338	Homo sapiens	Mutation(s): 0  Gene Names: GNB1
UniProt & NIH Common Fund Data Resources
Find proteins for P62873 (Homo sapiens) Explore P62873  Go to UniProtKB:  P62873
PHAROS:  P62873 GTEx:  ENSG00000078369

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

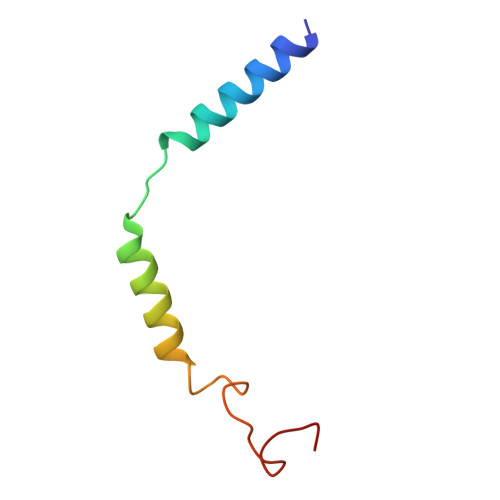

Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2	C [auth G]	57	Homo sapiens	Mutation(s): 0  Gene Names: GNG2 Membrane Entity: Yes
UniProt & NIH Common Fund Data Resources
Find proteins for P59768 (Homo sapiens) Explore P59768  Go to UniProtKB:  P59768
PHAROS:  P59768 GTEx:  ENSG00000186469

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

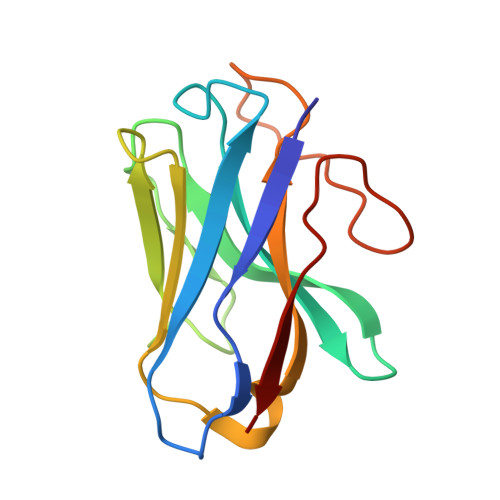

Nanobody 35	D [auth N]	126	Homo sapiens	Mutation(s): 0

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

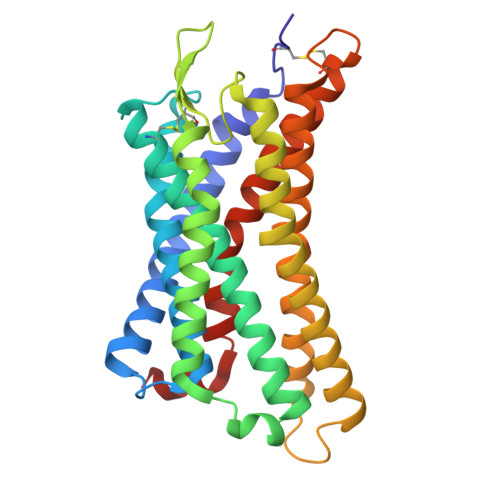

P2Y purinoceptor 1	E [auth R]	297	Homo sapiens	Mutation(s): 1  Gene Names: P2RY1 Membrane Entity: Yes
UniProt & NIH Common Fund Data Resources
Find proteins for P47900 (Homo sapiens) Explore P47900  Go to UniProtKB:  P47900
PHAROS:  P47900 GTEx:  ENSG00000169860

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
ADP (Subject of Investigation/LOI)	F [auth R]	ADENOSINE-5'-DIPHOSPHATE C10 H15 N5 O10 P2 XTWYTFMLZFPYCI-KQYNXXCUSA-N
CLR (Subject of Investigation/LOI)	G [auth R]	CHOLESTEROL C27 H46 O HVYWMOMLDIMFJA-DPAQBDIFSA-N

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 2.76 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.20.1_4487

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2025-09-10
Deposition Author(s): Gu, Q.C., Wang, T.X., Tang, W.Q.

---

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History

• Version 1.0: 2025-09-10
  Type: Initial release
