9IXU | pdb_00009ixu

Overall reconstruction of the Bax line


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.19 Å
  • Aggregation State: FILAMENT
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Structural basis of BAX pore formation.

Zhang, Y.Tian, L.Huang, G.Ge, X.Kong, F.Wang, P.Xu, Y.Shi, Y.

(2025) Science 388: eadv4314-eadv4314

  • DOI: https://doi.org/10.1126/science.adv4314
  • Primary Citation of Related Structures:
    9IXU

  • PubMed Abstract:

    During apoptosis, cytosolic BAX monomers are translocated to the mitochondria to permeabilize the outer membrane. Here, we identified a dimer of BAX dimers as the basic repeating unit of its various oligomeric forms: arcs, lines, and rings. Cryo-electron microscopy structure of the BAX repeating unit at 3.2-angstrom resolution revealed the interactions within and between dimers. End-to-end stacking of the repeating units through the protruding α9 pairs yielded lines, arcs, polygons, and rings. We structurally characterized the tetragon, pentagon, hexagon, and heptagon, which comprise 16, 20, 24, and 28 BAX protomers, respectively. Missense mutations at the BAX inter-protomer interface damage pore formation and cripple its proapoptotic function. The assembly principle of the various BAX oligomers reported here provides the structural basis of membrane permeabilization by BAX.


  • Organizational Affiliation
    • Beijing Frontier Research Center for Biological Structure, Tsinghua-Peking Joint Center for Life Sciences, School of Life Sciences, Tsinghua University, Beijing, China.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

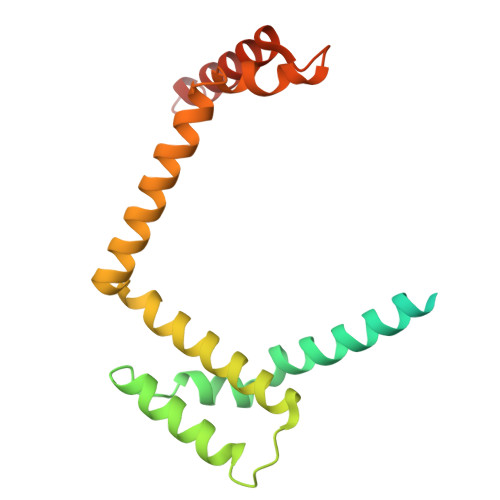

Apoptosis regulator BAX192Homo sapiensMutation(s): 0
Gene Names: BAXBCL2L4
UniProt & NIH Common Fund Data Resources
Find proteins for Q07812 (Homo sapiens)
Explore Q07812
Go to UniProtKB:  Q07812
PHAROS:  Q07812
GTEx:  ENSG00000087088
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ07812
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.19 Å
  • Aggregation State: FILAMENT
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.17.1_3660:

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Ministry of Science and Technology (MoST, China)China2020YFA0509300
National Natural Science Foundation of China (NSFC)China81920108015
National Natural Science Foundation of China (NSFC)China31930059

Revision History  (Full details and data files)

  • Version 1.0: 2025-06-18
    Type: Initial release
  • Version 1.1: 2025-07-09
    Changes: Data collection, Database references
  • Version 1.2: 2025-12-03
    Changes: Data collection, Database references
