9I7Y | pdb_00009i7y

Crystal Structure of KRasG13C in Complex with Nucleotide-based Covalent Inhibitor 7b


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.85 Å
  • R-Value Free:
    0.228 (Depositor), 0.228 (DCC)
  • R-Value Work:
    0.190 (Depositor), 0.190 (DCC)
  • R-Value Observed:
    0.192 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history


Literature

Targeting KRAS G13C with cyclic linker based inhibitors to explore warhead orientation.

Kirschner, T.Rodriguez, J.Moreira, E.G.Niggenaber, J.Warmuth, J.D.Verli, H.Muller, M.P.Rauh, D.

(2025) Sci Rep 15: 38213-38213

  • DOI: https://doi.org/10.1038/s41598-025-22145-5
  • Primary Citation of Related Structures:
    9I7Y

  • PubMed Abstract:

    The small GTPase KRAS is a key driver of carcinogenesis when mutated, and significant progress has been made in targeting KRAS G12C and other oncogenic variants. Building on our previous work demonstrating the potential of nucleotide-based inhibitors with an acrylamide warhead to target KRAS G13C , we designed and synthesized a library of nucleotide-based compounds with cyclic linkers to explore the effect of warhead orientation on reactivity toward Cys13. Using mass spectrometry, kinetic studies, and protein X-ray crystallography, we validated the binding and reactivity of these modulators. In addition, computational predictions of the conformational space of the linkers and warheads provided insights into their reactivity, which agreed well with the experimental data. These findings advance our understanding of the structure-reactivity relationship in these nucleotide-based KRAS inhibitors and will be the basis for further optimization.


  • Organizational Affiliation
    • Department of Chemistry and Chemical Biology, Drug Discovery Hub Dortmund (DDHD), TU Dortmund University, Zentrum für Integrierte Wirkstoffforschung (ZIW), Otto-Hahn-Strasse 4a, 44227, Dortmund, Germany.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure

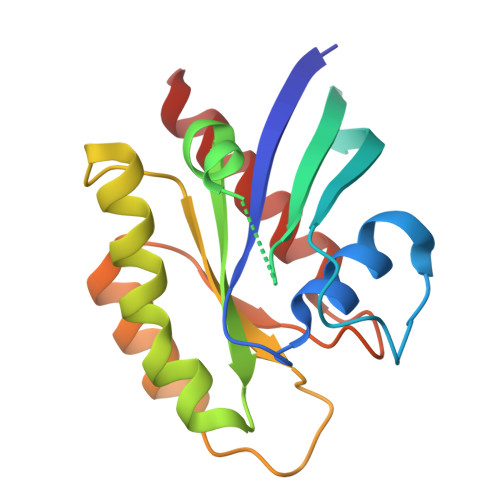

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Isoform 2B of GTPase KRas
A, B, C
171Homo sapiensMutation(s): 4
Gene Names: KRASKRAS2RASK2
EC: 3.6.5.2
UniProt & NIH Common Fund Data Resources
Find proteins for P01116 (Homo sapiens)
Explore P01116
Go to UniProtKB:  P01116
PHAROS:  P01116
GTEx:  ENSG00000133703
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP01116
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.85 Å
  • R-Value Free:  0.228 (Depositor), 0.228 (DCC)
  • R-Value Work:  0.190 (Depositor), 0.190 (DCC)
  • R-Value Observed: 0.192 (Depositor)
Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 70.01α = 90
b = 84.76β = 113.254
c = 88.77γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
PDB_EXTRACTdata extraction
XDSdata reduction
XSCALEdata scaling
PHASERphasing
PHENIXrefinement
Cootmodel building

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
German Federal Ministry for Education and ResearchGermany01ZX2201B
European Regional Development FundEuropean UnionEFRE-800400
Other governmentNW21-062C
Other privateEx-2021-0033
German Research Foundation (DFG)Germany--

Revision History  (Full details and data files)

  • Version 1.0: 2025-11-12
    Type: Initial release
