9I2M | pdb_00009i2m

Crystal structure of the lipocalin cat allergen Fel d 4


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.55 Å
  • R-Value Free:
    0.215 (Depositor), 0.215 (DCC)
  • R-Value Work:
    0.173 (Depositor), 0.178 (DCC)
  • R-Value Observed:
    0.175 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Major Cat Allergen Fel d 4: Structure and Identification of a Cross-Reactive IgE-Epitope-Containing Area.

Todorovic, N.Trifonova, D.Liu, Z.Curin, M.Schooltink, L.Sagmeister, T.Grininger, C.Kiss, R.Gottstein, N.Gesslbauer, B.Winkler, A.Pavkov-Keller, T.Karaulov, A.Valenta, R.Keller, W.

(2025) Allergy

  • DOI: https://doi.org/10.1111/all.70146
  • Primary Citation of Related Structures:
    8AMC, 9I2M

  • PubMed Abstract:

    Allergic sensitization to cats and other furry animals is a major cause of asthma and allergic rhinitis in more than 200 million people worldwide. According to the frequency of IgE recognition, allergen-specific IgE levels, and allergenic activity, Fel d 4 is a major allergen in the cat (Felis domesticus). The lipocalin allergen Fel d 4 is highly homologous to dog (Can f 6) and major horse (Equ c 1) allergens. Accordingly, IgE cross-reactivity to these allergens contributes to polysensitization and allergic responses upon exposure to different animals. Fel d 4 was recombinantly produced in two systems, E. coli and Expi293F mammalian cells. Recombinant forms were characterized by circular dichroism and mass spectrometry. The Fel d 4 3D structure was determined using X-ray crystallography. Immunoreactivity, epitope analyses, and cross-reactive properties were assessed by ELISA and basophil release assays using allergic patients' sera. We reveal the rFel d 4 crystal structures and demonstrate that mammalian cells produce an N-glycosylated recombinant Fel d 4 allergen. The C-terminal regions of Fel d 4, Can f 6, and Equ c 1 constitute conformational IgE-epitope-containing areas responsible for cross-reactivity. Uncovering the IgE-binding sites of Fel d 4 and cross-reactive allergens contributes to future rational design of active and passive allergen-specific treatment forms.


  • Organizational Affiliation
    • Institute of Molecular Biosciences, University of Graz, Graz, Austria.

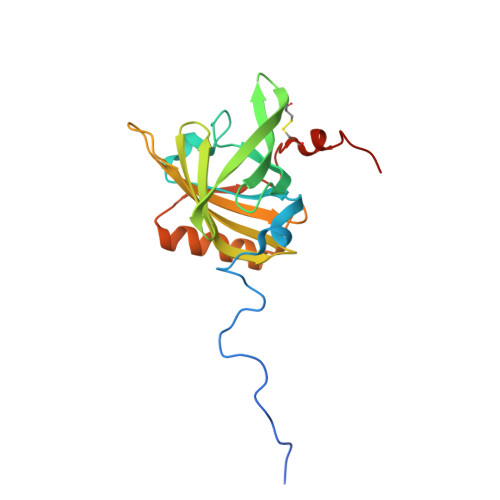

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Allergen Fel d 4192Felis catusMutation(s): 0
UniProt
Find proteins for Q5VFH6 (Felis catus)
Explore Q5VFH6
Go to UniProtKB:  Q5VFH6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ5VFH6
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.55 Å
  • R-Value Free:  0.215 (Depositor), 0.215 (DCC)
  • R-Value Work:  0.173 (Depositor), 0.178 (DCC)
  • R-Value Observed: 0.175 (Depositor)
Space Group: I 2 2 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 64.67α = 90
b = 77.911β = 90
c = 79.152γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
PHENIXrefinement
XDSdata reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Austrian Science FundAustriaDoc130

Revision History  (Full details and data files)

  • Version 1.0: 2025-12-03
    Type: Initial release
