9I1U | pdb_00009i1u

Lytic polysaccharide monooxygenase from Cellvibrio japonicus - CjAA10B


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.90 Å
  • R-Value Free:
    0.276 (Depositor), 0.273 (DCC)
  • R-Value Work:
    0.230 (Depositor), 0.226 (DCC)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9I1U

This is version 1.1 of the entry. See complete history

Literature

Electrochemical Insight into the Copper Redox Chemistry and H 2 O 2 and O 2 Reducing Capability of Two AA10 Lytic Polysaccharide Monooxygenases.

Reid, E.K.Miles, C.G.Lloyd-Laney, H.O.Nairn, A.K.Branch, J.Garland, N.Yates, N.D.J.Ascham, A.Walton, P.H.Hemsworth, G.Parkin, A.

(2026) ACS Electrochem 2: 239-257

  • DOI: https://doi.org/10.1021/acselectrochem.5c00266
  • Primary Citation Related Structures:
    9I1U

  • PubMed Abstract:

    Lytic polysaccharide monooxygenases ([L]-PMOs) are copper-containing enzymes that catalyse cleavage of the glycosidic bond, a process central to microbial biomass degradation. Here, we describe electrochemical methods used to investigate the Cu 2+/1+ redox chemistry and the polysaccharide-free catalytic activity of two AA10 LPMOs: Cj AA10B from Cellvibrio japonicus and Cf AA10 from Cellulomonas fimi . Immobilisation of these enzymes on the surface of a graphite electrode allows for direct electrochemical measurements of Cu 2+/1+ redox cycling as well as the ability of both LPMOs to reduce H 2 O 2 vs O 2 . These measurements can be advantageous when compared to biological dye assays as they provide direct kinetic measurements and allow for investigation over a wider range of environmental conditions. Values of k cat and K M - are reported for H 2 O 2 and O 2 reduction by Cj AA10B and Cf AA10 from pH 5-7, with Cf AA10 consistently outperforming Cj AA10B. Both enzymes perform faster catalysis with H 2 O 2 but when comparing the affinity-coupled specificity constant ( k cat / K M ), the LPMOs perform similarly with both H 2 O 2 and O 2 , suggesting both substrates are viable. We also note an increase in redox signals as pH is decreased that correlates with EPR data suggesting a second species is formed K a ∼ 4.6). The increase in signal size with decreasing pH that is seen for the non-catalytic Cu 2+/1+ transition is interpreted in light of an increasing proportion of electroactive species at low pH; such a change in activity with pH is notably not observed in the presence of substrate (H 2 O 2 or O 2 ). This suggests that substrate binding modulates the active site, disrupting the effect of protonation. These findings establish electrochemistry as a powerful tool for probing LPMO activity.


  • Organizational Affiliation
    • Department of Chemistry, University of York, Heslington, York YO10 5DD, U.K.

Macromolecule Content

  • Total Structure Weight: 192.8 kDa
  • Atom Count: 13,998
  • Modeled Residue Count: 1,650
  • Deposited Residue Count: 1,688
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure

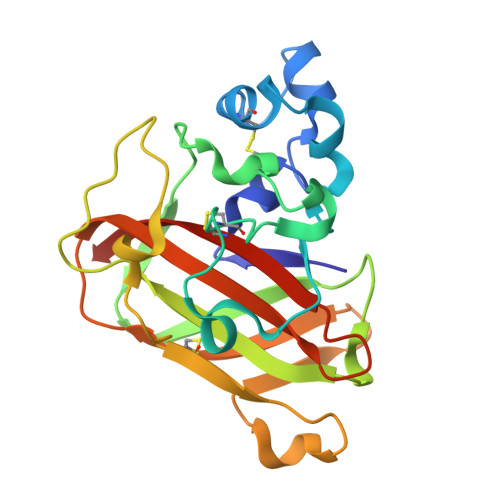

Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Chitin binding protein, putative, cbp33/10B
A, B, C, D, E
A, B, C, D, E, F, G, H
211Cellvibrio japonicusMutation(s): 0
Gene Names: 10Bcbp33CJA_3139
UniProt
Find proteins for B3PDT6 (Cellvibrio japonicus (strain Ueda107))
Explore B3PDT6
Go to UniProtKB:  B3PDT6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupB3PDT6
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
PO4

Query on PO4



Download:Ideal Coordinates CCD File
J [auth A]
L [auth B]
N [auth C]
P [auth D]
Q [auth D]
J [auth A],
L [auth B],
N [auth C],
P [auth D],
Q [auth D],
S [auth E],
U [auth F],
W [auth G],
Y [auth H]
PHOSPHATE ION
O4 P
NBIIXXVUZAFLBC-UHFFFAOYSA-K
CU

Query on CU



Download:Ideal Coordinates CCD File
I [auth A]
K [auth B]
M [auth C]
O [auth D]
R [auth E]
I [auth A],
K [auth B],
M [auth C],
O [auth D],
R [auth E],
T [auth F],
V [auth G],
X [auth H]
COPPER (II) ION
Cu
JPVYNHNXODAKFH-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.90 Å
  • R-Value Free:  0.276 (Depositor), 0.273 (DCC)
  • R-Value Work:  0.230 (Depositor), 0.226 (DCC)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 76.824α = 90
b = 74.922β = 102.095
c = 137.455γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
Aimlessdata scaling
PHASERphasing
XDSdata collection

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Biotechnology and Biological Sciences Research Council (BBSRC)United KingdomBB/N019970/1

Revision History  (Full details and data files)

  • Version 1.0: 2025-12-24
    Type: Initial release
  • Version 1.1: 2026-03-04
    Changes: Database references
